SW3822/A Equivalent & Substitute Parts

Part Overview

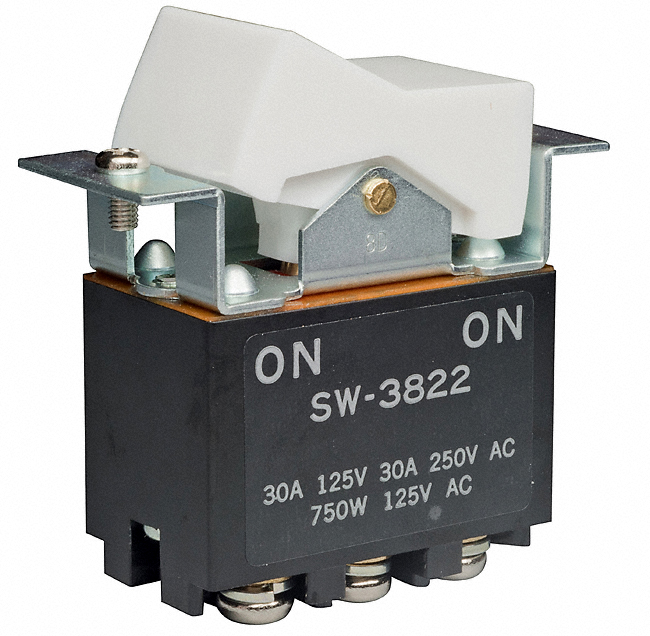

The SW3822/A is an active rocker switch manufactured by NKK Switches, classified as a DPDT (Double Pole Double Throw) panel mount component rated for 30A at 125V AC and 30V DC. This switch features a concave white actuator with screw terminal connections and is designed for on-on switching applications. The part maintains active product status with full compliance to ROHS3 and relevant approval agencies (CSA, UL). Substitute parts are identified when electrical ratings, mechanical specifications, circuit configuration, and termination style remain equivalent across the product line.

Substiute Parts

SW3822/A

NKK SwitchesIn Stock: 833SW3822/A Datasheet

Current PartRFQ

SW3822

NKK SwitchesIn Stock: 1037SW3822 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the SW3822/A are identified based on strict equivalence across the following critical parameters:

Circuit configuration (DPDT), switch function (On-On), current rating (30A AC/DC), voltage ratings (125V AC / 30V DC), mounting type (Panel Mount, Flange), actuator type (Concave Standard V), actuator color (White), termination style (Screw Terminal), operating temperature range (-10°C to 70°C), mechanical life (50,000 cycles), electrical life (25,000 cycles), and compliance certifications (ROHS3, CSA, UL).

The substitute part SW3822 (bulk packaging variant) meets all electrical and mechanical specifications required for direct substitution. The only difference is packaging configuration, which does not affect functional or electrical performance.

Parameter Comparison

Engineering Selection Recommendations

Both the SW3822/A and SW3822 maintain active product status with identical electrical and mechanical specifications. Selection between these parts should be based on packaging requirements and inventory availability. The SW3822/A is available in standard packaging with 761 units in stock, while the SW3822 is supplied in bulk packaging with 948 units in stock. Both parts carry full ROHS3 compliance and CSA/UL approvals, ensuring regulatory equivalence for applications requiring these certifications.

Frequently Asked Questions (FAQ)

Q: Can SW3822 replace SW3822/A in my application? A: Yes. Both parts are electrically and mechanically identical, with the same DPDT circuit, 30A/125V AC rating, screw terminal connections, and panel mount configuration. The difference is packaging only.

Q: What is the difference between SW3822/A and SW3822? A: The SW3822/A is supplied in standard packaging, while SW3822 is supplied in bulk packaging. All electrical specifications, mechanical characteristics, and compliance certifications are identical.

Q: Are both parts ROHS3 compliant? A: Yes. Both SW3822/A and SW3822 are ROHS3 compliant and carry CSA and UL approvals.

Q: What is the operating temperature range for these switches? A: Both parts operate within -10°C to 70°C.

Q: How many switching cycles are rated for these parts? A: Mechanical life is rated at 50,000 cycles and electrical life at 25,000 cycles for both parts.
