ST40X-36S-CV(80) Equivalent & Substitute Parts

Part Overview

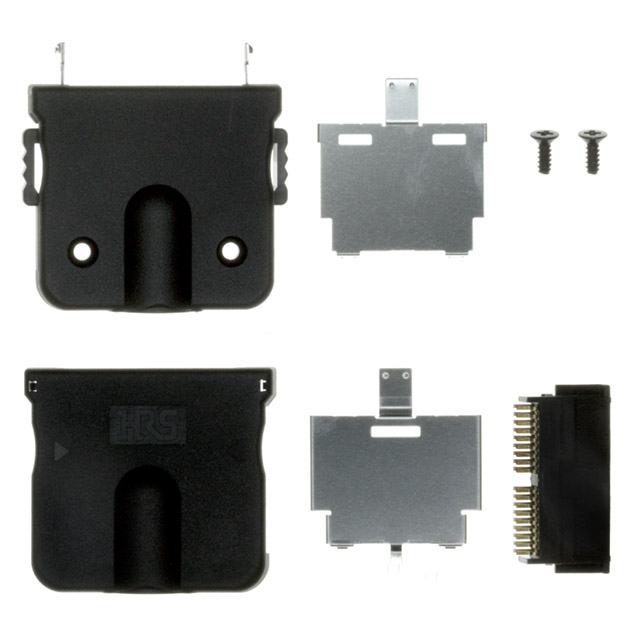

The ST40X-36S-CV(80) is a 36-position rectangular plug connector manufactured by Hirose Electric Co Ltd, designed for solder termination with gold-plated contacts. This connector is classified as obsolete, which necessitates identification of active equivalent parts to maintain supply chain continuity and support ongoing system maintenance and repairs.

Substiute Parts

ST40X-36S-CV(80)

Hirose Electric Co LtdIn Stock: 737ST40X-36S-CV(80) Datasheet

Current PartRFQ

ST40X-36S-CV(30)

Hirose Electric Co LtdIn Stock: 1234ST40X-36S-CV(30) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The ST40X-36S-CV(30) qualifies as a direct substitute for the ST40X-36S-CV(80) based on the following critical parameters that determine functional and mechanical compatibility:

• Identical connector type (Plug)
• Identical number of positions (36)
• Identical pitch (0.020" / 0.50mm)
• Identical number of rows (1)
• Identical cable termination method (Solder)
• Identical contact finish (Gold) and finish thickness (8.00µin / 0.203µm)
• Identical shielded feature
• Identical color (Black)
• Identical mounting type (Free Hanging / In-Line)
• Identical base product number (ST40X)
• Identical MSL rating (1 / Unlimited)

The substitution is valid across all electrical and mechanical interfaces. The primary difference is product status: ST40X-36S-CV(80) is obsolete, while ST40X-36S-CV(30) is active and available.

Parameter Comparison

Engineering Selection Recommendations

The ST40X-36S-CV(30) is the direct equivalent for the obsolete ST40X-36S-CV(80). Selection of the substitute part is based on:

• Full electrical and mechanical parameter alignment across all critical specifications
• Active product status ensuring ongoing availability and supply chain support
• ROHS3 compliance and REACH unaffected status of the substitute part, meeting current regulatory requirements
• Identical connector interface specifications enabling direct replacement without design modification
