ST40X-24S-CV1(80) Equivalent & Substitute Parts

Part Overview

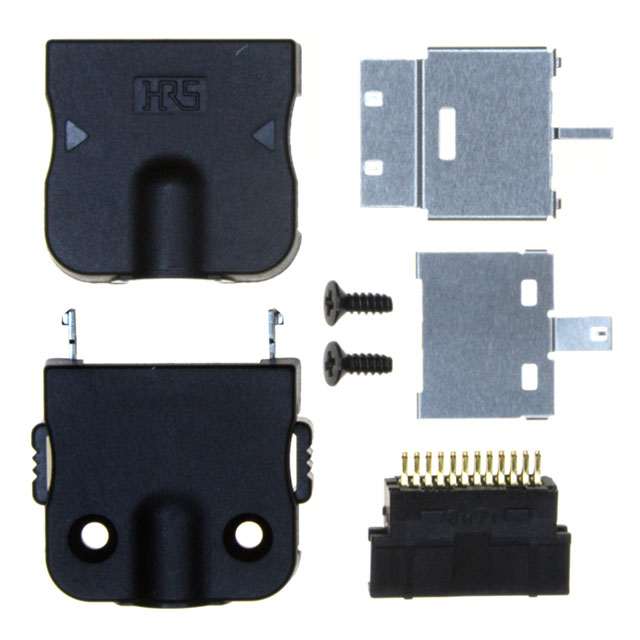

The ST40X-24S-CV1(80) is a 24-position rectangular plug connector manufactured by Hirose Electric Co Ltd, designed for solder termination with gold-plated contacts. This connector features a single-row configuration with 0.020" (0.50mm) pitch spacing and shielded construction. The part is currently classified as obsolete, making identification of active equivalent models essential for ongoing design support and procurement continuity.

Substiute Parts

ST40X-24S-CV1(80)

Hirose Electric Co LtdIn Stock: 1112ST40X-24S-CV1(80) Datasheet

Current PartRFQ

ST40X-24S-CV1(30)

Hirose Electric Co LtdIn Stock: 1042ST40X-24S-CV1(30) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the ST40X-24S-CV1(80) is determined by strict alignment across the following critical parameters:

• Connector type (Plug)
• Number of positions (24)
• Pitch specification (0.020" / 0.50mm)
• Number of rows (1)
• Cable termination method (Solder)
• Shielded construction
• Contact finish (Gold) and finish thickness (8.00µin)
• Base product series (ST)
• Mounting configuration (Free Hanging In-Line)

The ST40X-24S-CV1(30) meets all substitution criteria as a direct equivalent within the ST series, with identical electrical and mechanical specifications. The primary distinction is product status: the substitute part is active and available, whereas the original part is obsolete.

Parameter Comparison

Engineering Selection Recommendations

The ST40X-24S-CV1(30) is the direct functional equivalent for the obsolete ST40X-24S-CV1(80). Both parts share identical electrical and mechanical specifications, including connector architecture, contact configuration, termination method, and material properties.

The ST40X-24S-CV1(30) carries active product status and is available in production quantities (1012 pcs in stock). This part is RoHS3 compliant and REACH unaffected, meeting current regulatory requirements for new designs and production applications.

For applications currently using the ST40X-24S-CV1(80), transition to the ST40X-24S-CV1(30) requires no design modification. The parts are mechanically and electrically interchangeable within the same assembly context.

Frequently Asked Questions (FAQ)

Q: Are the ST40X-24S-CV1(80) and ST40X-24S-CV1(30) mechanically interchangeable?

A: Yes. Both parts are 24-position rectangular plug connectors with identical pitch (0.020"), row configuration (1 row), mounting type (free hanging in-line), and physical dimensions. They mount identically in the same connector receptacle.

Q: What is the difference between these two part numbers?

A: The primary difference is product status. The ST40X-24S-CV1(80) is obsolete, while the ST40X-24S-CV1(30) is active and in production. All electrical and mechanical specifications are identical.

Q: Can I use the ST40X-24S-CV1(30) in place of the ST40X-24S-CV1(80) in existing designs?

A: Yes. The parts are direct equivalents with no design changes required. The substitute part meets the same electrical performance, contact specifications, and physical requirements.

Q: What packaging differences exist between these parts?

A: The ST40X-24S-CV1(80) is supplied without specified packaging, while the ST40X-24S-CV1(30) is packaged in trays. This affects handling and storage but does not impact connector performance or compatibility.

Q: Are there any compliance or regulatory differences?

A: The ST40X-24S-CV1(30) is RoHS3 compliant and REACH unaffected. These certifications apply to new production and support current regulatory requirements for manufacturing and distribution.

Q: What is the contact finish specification for both parts?

A: Both parts feature gold-plated contacts with a finish thickness of 8.00µin (0.203µm), ensuring consistent electrical performance and corrosion resistance.
