SSW-110-02-FM-S Equivalent & Substitute Parts

Part Overview

The SSW-110-02-FM-S is a 10-position receptacle connector manufactured by Samtec Inc., designed for board-to-board or cable applications with 0.100" (2.54mm) pitch through-hole mounting. This connector features forked contacts with gold mating finish and tin post finish, rated for 4.7A per contact across an operating temperature range of -55°C to 125°C. The part is currently active in production with ROHS3 compliance and UL94 V-0 flammability rating. Substitute parts are identified when inventory constraints, lead time requirements, or design flexibility necessitate alternative sourcing options that maintain electrical and mechanical compatibility.

Substiute Parts

SSW-110-02-FM-S

Samtec Inc.In Stock: 1204SSW-110-02-FM-S Datasheet

Current PartRFQ

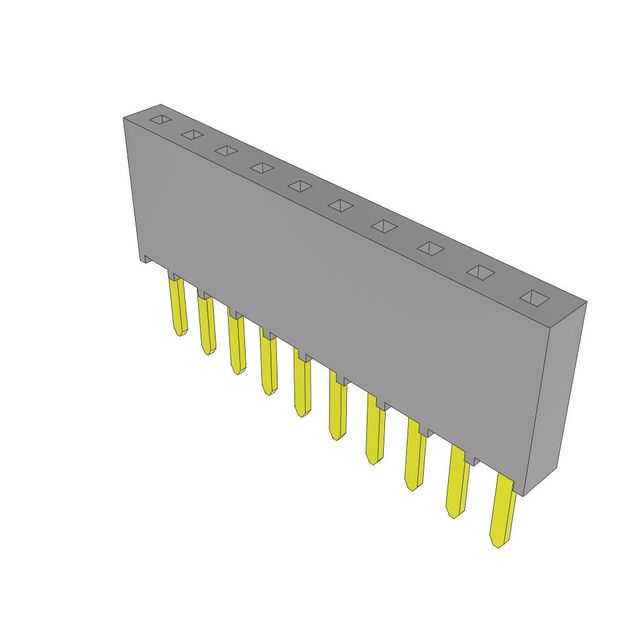

SSW-110-22-F-S

Samtec Inc.In Stock: 720SSW-110-22-F-S Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The SSW-110-22-F-S qualifies as a direct substitute for the SSW-110-02-FM-S based on identical electrical and mechanical parameters. Both parts share the same base product number (SSW-110) and maintain compatibility across all critical substitution criteria: 10-position configuration, 0.100" (2.54mm) mating pitch, forked contact geometry, through-hole solder termination, 4.7A per contact current rating, -55°C to 125°C operating temperature range, gold mating contact finish, and LCP insulation material. Both parts carry ROHS3 compliance and UL94 V-0 flammability certification. The substitution is valid for applications requiring equivalent electrical performance and mechanical fit within the same connector family.

Parameter Comparison

Engineering Selection Recommendations

Both the SSW-110-02-FM-S and SSW-110-22-F-S are active production parts with identical compliance certifications (ROHS3 and UL94 V-0). Selection between these parts should be based on inventory availability and lead time requirements. The SSW-110-02-FM-S currently maintains 1101 pieces in stock, while the SSW-110-22-F-S has 686 pieces available. Both parts are suitable for applications requiring 10-position rectangular connectors with 0.100" pitch, forked contact geometry, and solder termination within the specified temperature and current operating ranges.

Frequently Asked Questions (FAQ)

Q: Can SSW-110-22-F-S be used as a direct replacement for SSW-110-02-FM-S?

A: Yes. Both parts share identical electrical and mechanical specifications including connector type, position count, mating pitch, contact geometry, current rating, operating temperature range, and material certifications. They are interchangeable within the same application.

Q: What are the key parameters that determine substitution compatibility?

A: Substitution compatibility is determined by: 10-position configuration, 0.100" (2.54mm) mating pitch, forked contact type, through-hole solder termination, 4.7A per contact current rating, -55°C to 125°C operating temperature, gold mating finish, and LCP insulation material. Both parts meet these criteria identically.

Q: Are there any differences in packaging or inventory between these parts?

A: Both parts are supplied in bulk packaging. The SSW-110-02-FM-S has higher current inventory (1101 pieces) compared to SSW-110-22-F-S (686 pieces). Packaging format and handling requirements are equivalent.

Q: Do both parts carry the same compliance certifications?

A: Yes. Both the SSW-110-02-FM-S and SSW-110-22-F-S are ROHS3 compliant and carry UL94 V-0 flammability rating. Both parts are active in production status.

Q: What is the contact material and finish specification for these connectors?

A: Both parts use phosphor bronze contact material with gold mating finish (3.00µin thickness) and tin post finish. Contact shape is square with 0.194" (4.93mm) post length.
