SSW-104-02-T-P Equivalent & Substitute Parts

Part Overview

The SSW-104-02-T-P is a 4-position receptacle connector manufactured by Samtec Inc., designed for board-to-board or cable applications with 0.100" (2.54mm) pitch through-hole mounting. This connector features tin-plated forked contacts, solder termination, and push-pull fastening. The part is currently active in production with 764 units in stock. Alternative models become necessary when inventory constraints occur or when specific packaging requirements differ between production batches.

Substiute Parts

SSW-104-02-T-P

Samtec Inc.In Stock: 831SSW-104-02-T-P Datasheet

Current PartRFQ

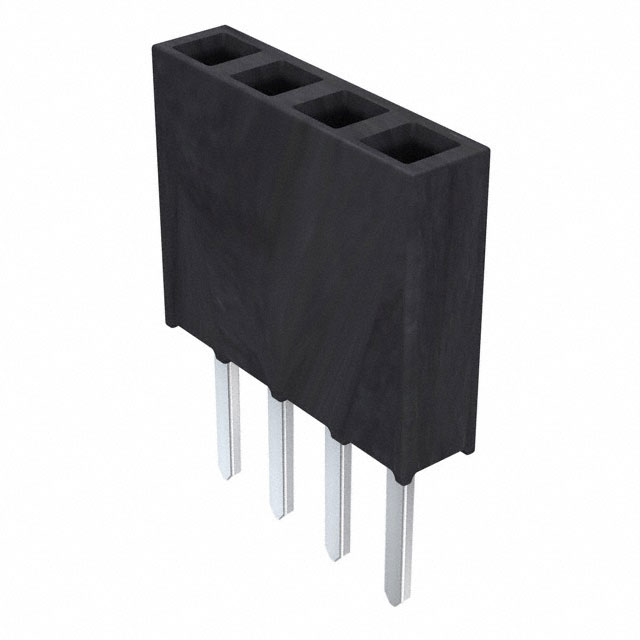

SSW-104-02-T-S

Samtec Inc.In Stock: 1564SSW-104-02-T-S Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The SSW-104-02-T-S qualifies as a direct substitute for the SSW-104-02-T-P based on identical electrical and mechanical parameters. Both parts share the same base product number (SSW-104), connector configuration, contact specifications, and performance ratings. The substitution is valid because the following critical parameters are identical:

• 4-position receptacle configuration
• 0.100" (2.54mm) mating pitch
• Through-hole solder termination
• Forked contact type with tin plating
• 4.7A per contact current rating
• -55°C ~ 105°C operating temperature range
• UL94 V-0 flammability rating
• ROHS3 compliance
• Liquid Crystal Polymer (LCP) insulation material
• Phosphor bronze contact material

The only difference between these parts is packaging designation (T-P versus T-S), which does not affect electrical or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both SSW-104-02-T-P and SSW-104-02-T-S are active production parts with full ROHS3 compliance and identical electrical and mechanical specifications. Selection between these parts should be based on inventory availability and packaging requirements specific to your procurement process. The SSW-104-02-T-S currently has higher inventory availability (1487 units versus 764 units). Both parts meet UL94 V-0 flammability requirements and are classified under the same ECCN and HTSUS codes, ensuring regulatory consistency across applications.

Frequently Asked Questions (FAQ)

Q: Can SSW-104-02-T-S be used as a direct replacement for SSW-104-02-T-P in existing designs?

A: Yes. All electrical and mechanical parameters are identical. The parts are mechanically and electrically interchangeable without design modification.

Q: What is the difference between the T-P and T-S packaging designations?

A: The packaging designation indicates different bulk packaging formats from the manufacturer. This does not affect the connector's electrical performance, mechanical fit, or compatibility with mating components.

Q: Are both parts compliant with current regulatory standards?

A: Yes. Both SSW-104-02-T-P and SSW-104-02-T-S are ROHS3 compliant and carry identical regulatory classifications (ECCN: EAR99, HTSUS: 8536.69.4040).

Q: What is the current rating for each contact position?

A: Both parts are rated for 4.7A per contact, supporting a maximum total current of 18.8A across all four positions under standard operating conditions.

Q: What is the operating temperature range?

A: Both parts operate across -55°C to 105°C, suitable for industrial and commercial applications.

Q: Are these parts suitable for board-to-board and cable applications?

A: Yes. Both connectors are designed for board-to-board or cable interconnection with 0.100" (2.54mm) pitch through-hole mounting.
