SSQ-106-24-G-D Equivalent & Substitute Parts

Part Overview

The SSQ-106-24-G-D is a 12-position receptacle connector manufactured by Samtec Inc., designed for board-to-board or cable applications with 0.100" (2.54mm) pitch spacing. This connector features gold-plated forked contacts, through-hole solder termination, and push-pull fastening. The part is currently active in production with 724 units in stock. Alternative models may be required due to inventory constraints, application-specific lead times, or design revision requirements.

Substiute Parts

SSQ-106-24-G-D

Samtec Inc.In Stock: 790SSQ-106-24-G-D Datasheet

Current PartRFQ

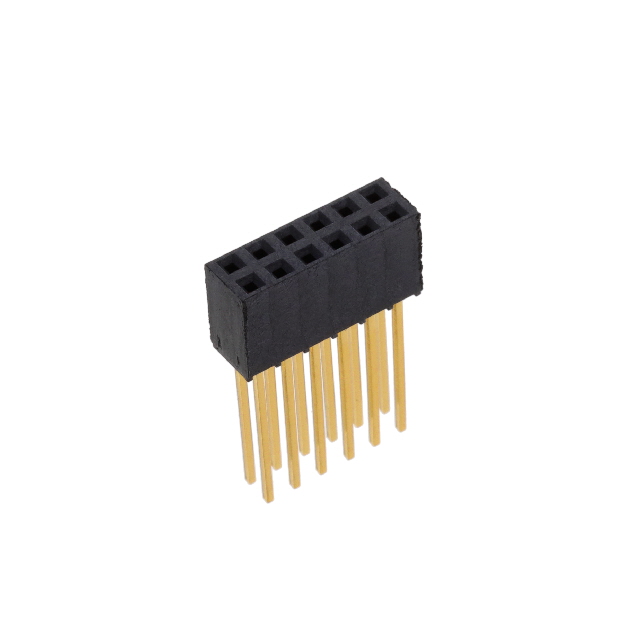

SSQ-106-04-G-D

Samtec Inc.In Stock: 1200SSQ-106-04-G-D Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The SSQ-106-04-G-D qualifies as a direct substitute for the SSQ-106-24-G-D based on identical electrical and mechanical parameters. Both parts share the following critical substitution criteria:

• Same manufacturer (Samtec Inc.) and series (SSQ)
• Identical connector type (Receptacle), contact type (Forked), and fastening mechanism (Push-Pull)
• Matching pitch specifications: 0.100" (2.54mm) mating pitch and 0.100" (2.54mm) row spacing
• Identical position count (12 positions, 2 rows, all positions loaded)
• Same mounting method (Through Hole) and termination type (Solder)
• Matching contact finish specifications (Gold mating surface, 20.0µin thickness)
• Identical voltage rating (465VAC, 655VDC) and operating temperature range (-55°C ~ 125°C)
• Same material flammability rating (UL94 V-0) and insulation material (Liquid Crystal Polymer)
• Equivalent compliance status (ROHS3 Compliant, EAR99 classification)

Parameter Comparison

Engineering Selection Recommendations

Both the SSQ-106-24-G-D and SSQ-106-04-G-D are active production parts from Samtec Inc. with full ROHS3 compliance and identical electrical and mechanical specifications. Selection between these parts should be based on inventory availability and procurement lead times. The SSQ-106-04-G-D currently has higher stock levels (1118 units versus 724 units), which may provide supply chain advantages for high-volume applications. Both parts meet the same regulatory requirements (UL94 V-0 flammability rating, EAR99 export classification) and are suitable for identical circuit board applications requiring 12-position, 0.100" pitch receptacle connectors with gold-plated contacts and push-pull fastening.

Frequently Asked Questions (FAQ)

Q: Can SSQ-106-04-G-D be used as a direct replacement for SSQ-106-24-G-D?

A: Yes. Both parts are identical in all electrical and mechanical parameters, including connector type, position count, pitch spacing, contact finish, voltage rating, and operating temperature range. They are fully interchangeable at the circuit board level.

Q: Are there any differences in the physical dimensions between these two parts?

A: No. Both parts share identical insulation height (0.335"), contact length (0.584"), and row spacing (0.100"). They occupy the same footprint on the printed circuit board.

Q: Do both parts meet the same compliance standards?

A: Yes. Both the SSQ-106-24-G-D and SSQ-106-04-G-D are ROHS3 compliant, carry the same UL94 V-0 flammability rating, and share identical ECCN (EAR99) and HTSUS classifications.

Q: What is the difference between these part numbers if they are identical?

A: The difference lies in the internal designation within Samtec's product numbering system (24 versus 04 in the part number). This distinction does not affect electrical performance, mechanical compatibility, or physical characteristics. Both parts are from the same SSQ series and base product number (SSQ-106).

Q: Which part should be selected for new designs?

A: Either part is suitable for new designs. Selection should be based on current inventory levels and supplier availability. The SSQ-106-04-G-D currently has higher stock availability (1118 units), which may reduce procurement lead times.

Q: Are the contact finishes identical between these parts?

A: Yes. Both parts feature gold-plated mating contacts with 20.0µin (0.51µm) thickness and gold-plated posts with 3.00µin (0.076µm) thickness. Contact material is phosphor bronze for both parts.
