SSHB10HS-22011 Common Mode Choke Equivalent & Substitute Parts

Part Overview

The SSHB10HS-22011 is a 2-line common mode choke manufactured by KEMET, rated for 2.2A maximum current with 1.1 mH inductance at 10 kHz. This through-hole component operates across a temperature range of -25°C to 120°C and complies with ROHS3 and REACH standards. The part is currently active in production with 1114 units in stock.

Substitute parts are identified when equivalent electrical performance can be achieved through alternative KEMET common mode choke models that maintain compatibility with the same mounting footprint, pin configuration, and operational requirements. Substitution becomes necessary due to component availability, design optimization, or performance specification adjustments within acceptable parameters.

Key Parameters

Parameter	Value
Manufacturer Part Number	SSHB10HS-22011
Manufacturer	KEMET
Series	SSHB10HS
Number of Lines	2
Inductance @ 10 kHz	1.1 mH
Current Rating (Max)	2.2A
DC Resistance (Max)	110 mOhm
Voltage Rating - AC	250V
Operating Temperature Range	-25°C to 120°C
Mounting Type	Through Hole
Package / Case	Vertical, 4 PC Pin
RoHS Status	ROHS3 Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitution logic for the SSHB10HS-22011 is based on the following critical parameters that must remain compatible:

Mandatory Compatibility Criteria:

Number of Lines: 2 (all substitutes maintain 2-line configuration)
Mounting Type: Through Hole with Vertical, 4 PC Pin package
Voltage Rating - AC: 250V (all substitutes rated at 250V)
Current Rating: 2.2A or higher (substitutes rated 2.2A or 2.5A acceptable)
DC Resistance: 110 mOhm or lower (lower DCR values acceptable)
Operating Temperature: -25°C minimum to 120°C minimum (extended ranges acceptable)
RoHS Status: ROHS3 Compliant (all substitutes meet this requirement)
Product Status: Active (all substitutes are active production parts)

Variable Parameters Allowing Substitution:

Inductance @ 10 kHz: Range from 1.4 mH to 10.3 mH depending on application requirements
Physical Dimensions: Footprint variations permitted within the through-hole mounting constraint
Series Designation: Multiple KEMET series (SSHB10H, SSHB10HS, SSHB21H, SSHB21HS, SSR) qualify as substitutes

Parameter Comparison

Part Number	Series	Inductance @ 10 kHz	Current Rating (Max)	DC Resistance (Max)	Operating Temperature	Size / Dimension	Height (Max)	Inventory
SSHB10HS-22011	SSHB10HS	1.1 mH	2.2A	110 mOhm	-25°C ~ 120°C	22.00mm x 17.00mm	15.50mm	1114 Pcs
SSHB10H-22014	SSHB10H	1.4 mH	2.2A	120 mOhm	-25°C ~ 130°C	22.00mm x 17.00mm	15.50mm	1134 Pcs
SSHB10H-R22034	SSHB10H	3.4 mH	2.2A	120 mOhm	-25°C ~ 120°C	22.00mm x 17.00mm	15.50mm	1445 Pcs
SSHB10HS-R22027	SSHB10HS	2.7 mH	2.2A	110 mOhm	-25°C ~ 120°C	22.00mm x 17.00mm	15.50mm	1071 Pcs
SSHB21H-R25056	SSHB21H	5.6 mH	2.5A	100 mOhm	-25°C ~ 120°C	26.00mm x 23.00mm	15.50mm	1176 Pcs
SSHB21HS-25021	SSHB21HS	2.1 mH	2.5A	90 mOhm	-25°C ~ 120°C	26.00mm x 23.00mm	15.50mm	898 Pcs
SSHB21HS-R25044	SSHB21HS	4.4 mH	2.5A	90 mOhm	-25°C ~ 120°C	26.00mm x 23.00mm	15.50mm	846 Pcs
SSR10H-22034	SSR	3.4 mH	2.2A	110 mOhm	-25°C ~ 120°C	22.00mm x 17.00mm	13.50mm	938 Pcs
SSR10HS-22026	SSR	2.6 mH	2.2A	100 mOhm	-25°C ~ 120°C	22.00mm x 17.00mm	13.50mm	811 Pcs
SSR10V-22034	SSR	3.4 mH	2.2A	110 mOhm	-25°C ~ 120°C	23.50mm x 13.00mm	21.00mm	1625 Pcs
SSR21NV-M25103	SSR	10.3 mH	2.5A	120 mOhm	-25°C ~ 120°C	22.00mm x 16.00mm	27.00mm	1495 Pcs

Engineering Selection Recommendations

Direct Footprint Compatibility (Same PCB Mounting Area):

Parts maintaining the 22.00mm x 17.00mm footprint with 15.50mm height are directly compatible with the SSHB10HS-22011 mounting location:

SSHB10H-22014 (1.4 mH, 2.2A, 120 mOhm DCR)
SSHB10H-R22034 (3.4 mH, 2.2A, 120 mOhm DCR)
SSHB10HS-R22027 (2.7 mH, 2.2A, 110 mOhm DCR)
SSR10H-22034 (3.4 mH, 2.2A, 110 mOhm DCR)

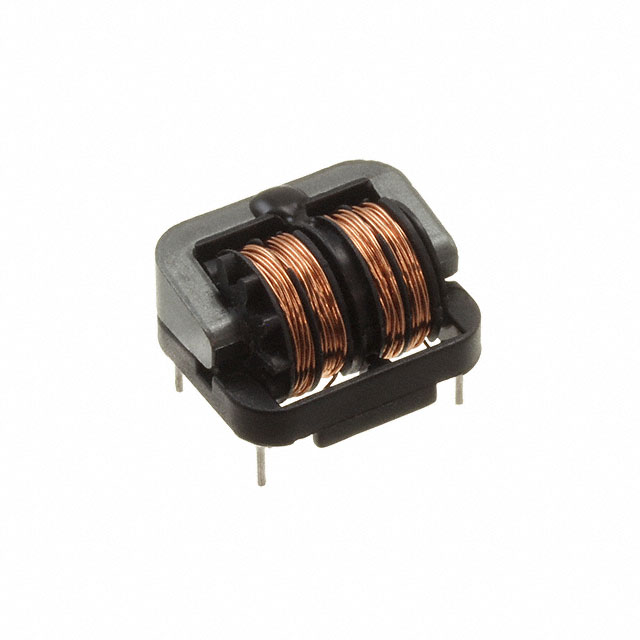

SSR10HS-22026 (2.6 mH, 2.2A, 100 mOhm DCR)

Reduced Height Profile (13.50mm):

SSR series components offer compact height specifications:

SSR10H-22034 (3.4 mH, 2.2A, 110 mOhm DCR, 13.50mm height)
SSR10HS-22026 (2.6 mH, 2.2A, 100 mOhm DCR, 13.50mm height)

Higher Current Rating (2.5A) with Larger Footprint:

SSHB21 series components accommodate increased current capacity:

SSHB21H-R25056 (5.6 mH, 2.5A, 100 mOhm DCR, 26.00mm x 23.00mm)
SSHB21HS-25021 (2.1 mH, 2.5A, 90 mOhm DCR, 26.00mm x 23.00mm)
SSHB21HS-R25044 (4.4 mH, 2.5A, 90 mOhm DCR, 26.00mm x 23.00mm)

Extended Height Profile (21.00mm or 27.00mm):

SSR series components with increased inductance values:

SSR10V-22034 (3.4 mH, 2.2A, 110 mOhm DCR, 21.00mm height)
SSR21NV-M25103 (10.3 mH, 2.5A, 120 mOhm DCR, 27.00mm height)

All substitute parts maintain ROHS3 compliance, REACH unaffected status, and active production status. Selection depends on specific circuit requirements for inductance value, current capacity, and available PCB mounting space.

Frequently Asked Questions (FAQ)

Q: Can SSHB10HS-22011 be replaced with SSHB10H-22014?

A: Yes. Both parts share identical mounting footprint (22.00mm x 17.00mm), height (15.50mm), 2-line configuration, 2.2A current rating, and 250V AC voltage rating. SSHB10H-22014 provides 1.4 mH inductance versus 1.1 mH in the original part, with slightly higher DCR (120 mOhm vs. 110 mOhm) and extended operating temperature to 130°C.

Q: What is the difference between SSHB10HS and SSR10HS series?

A: Both series maintain compatible electrical specifications (2.2A, 250V AC, 2-line configuration, through-hole mounting). The primary difference is physical height: SSHB10HS components are 15.50mm tall, while SSR10HS components are 13.50mm tall. SSR10HS-22026 offers reduced height with 2.6 mH inductance and 100 mOhm DCR.

Q: Can I use SSHB21H-R25056 as a substitute for SSHB10HS-22011?

A: Electrical compatibility exists (2-line, 250V AC, through-hole mounting, 2.5A rating). However, physical dimensions differ: SSHB21H-R25056 measures 26.00mm x 23.00mm versus 22.00mm x 17.00mm for the original part. PCB layout must accommodate the larger footprint. Inductance is higher at 5.6 mH with lower DCR (100 mOhm).

Q: What does DCR mean and why does it vary among substitutes?

A: DC Resistance (DCR) is the ohmic resistance of the choke coil measured at direct current. Variations occur due to different wire gauges and core materials used in different inductance values. Lower DCR reduces power dissipation and heat generation. SSHB10HS-22011 specifies 110 mOhm maximum; substitutes range from 90 mOhm to 120 mOhm.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All listed substitute parts are ROHS3 compliant and REACH unaffected, matching the environmental compliance of SSHB10HS-22011.

Q: Which substitute offers the lowest DC resistance?

A: SSHB21HS-25021 and SSHB21HS-R25044 both specify 90 mOhm maximum DCR, the lowest among all substitutes. These parts are in the SSHB21HS series with 2.5A current rating and larger 26.00mm x 23.00mm footprint.

Q: Can I use SSR10V-22034 if my PCB has limited vertical clearance?

A: No. SSR10V-22034 has a maximum height of 21.00mm, significantly taller than SSHB10HS-22011 at 15.50mm. This part is suitable only when vertical space permits the additional 5.50mm height.

Q: What inductance value should I select for my application?

A: Inductance selection depends on your circuit's frequency response and filtering requirements. SSHB10HS-22011 provides 1.1 mH at 10 kHz. Substitutes range from 1.4 mH to 10.3 mH. Higher inductance values provide greater attenuation at higher frequencies but increase component size and cost.

Q: Are there inventory considerations when selecting a substitute?

A: Yes. Current inventory levels vary: SSHB10H-R22034 has 1445 units available (highest), while SSHB21HS-R25044 has 846 units (lowest). Availability may influence selection for high-volume production requirements.
