Equivalent & Substitute Parts for SSF-LXH475GAYID

Part Overview

The SSF-LXH475GAYID is a LED Circuit Board Indicator manufactured by Lumex Opto/Components Inc. in a T-3MM tower configuration with multiple color options (Green/Amber/Yellow/Red). This product is classified as Obsolete, which necessitates identification of active equivalent components for continued system support and new designs. Substitute parts must maintain functional compatibility within the specified electrical and mechanical parameters.

Substiute Parts

SSF-LXH475GAYID

Lumex Opto/Components Inc.In Stock: 812SSF-LXH475GAYID Datasheet

Current PartRFQ

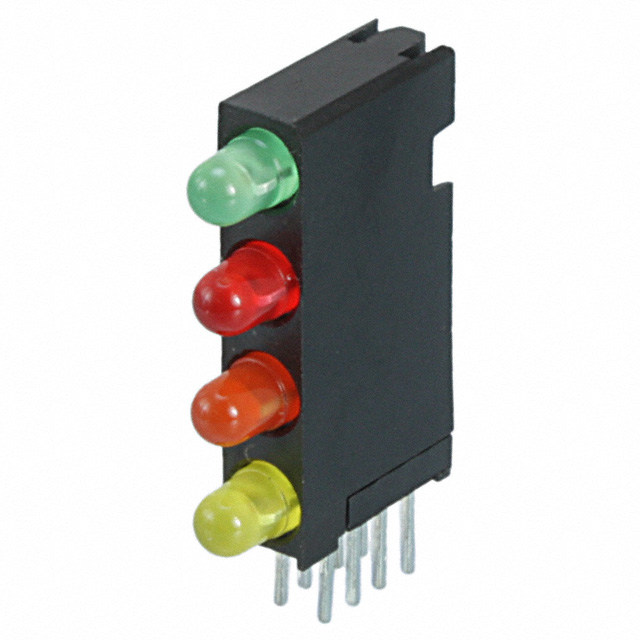

5680102173F

DialightIn Stock: 13285680102173F Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the SSF-LXH475GAYID is based on the following criteria derived from provided specifications:

Functional Category: LED Circuit Board Indicator with multi-color capability

Physical Form Factor: T-3MM tower configuration with through-hole mounting

Compliance Requirements: ROHS3 Compliant, REACH Unaffected, EAR99 classification

Electrical Compatibility: Multi-color LED array with specified voltage and current ratings per color

Moisture Sensitivity: MSL 1 (Unlimited) rating maintained

The substitute part 5680102173F from Dialight meets these criteria as an active product with equivalent functional classification, compliance certifications, and physical mounting characteristics.

Parameter Comparison

Engineering Selection Recommendations

Product Status Consideration: The SSF-LXH475GAYID is Obsolete. The substitute part 5680102173F is Active, ensuring continued availability and manufacturing support.

Compliance Alignment: Both components maintain ROHS3 Compliance, REACH Unaffected status, and EAR99 classification, satisfying regulatory requirements for equivalent substitution.

Moisture Sensitivity: Both parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity constraints during storage or handling.

Functional Equivalence: The 5680102173F provides multi-color LED indication in a 3mm T-1 form factor with through-hole right-angle mounting, consistent with the original component's intended application as a circuit board indicator.

Selection of the 5680102173F is appropriate for applications requiring replacement of the obsolete SSF-LXH475GAYID within the specified compliance and physical parameter constraints.

Frequently Asked Questions (FAQ)

Q: Why is substitution necessary for the SSF-LXH475GAYID?

A: The SSF-LXH475GAYID is classified as Obsolete. Substitution ensures component availability for repair, maintenance, and new production requirements.

Q: What are the primary compatibility criteria for substitutes?

A: Substitutes must maintain LED Circuit Board Indicator functionality, multi-color capability, 3mm T-1 form factor, through-hole mounting configuration, ROHS3 compliance, and MSL 1 moisture sensitivity rating.

Q: Does the 5680102173F maintain the same compliance certifications?

A: Yes. The 5680102173F is ROHS3 Compliant, REACH Unaffected, and carries EAR99 classification, identical to the original component.

Q: What is the difference in color designation between the parts?

A: The SSF-LXH475GAYID specifies Green/Amber/Yellow/Red options. The 5680102173F provides Green, Red, Orange, and Yellow. Orange and Amber represent similar wavelength ranges in the 585-600nm spectrum.

Q: Are there packaging differences between the original and substitute?

A: The original part packaging is not specified in available documentation. The 5680102173F is supplied in Bulk packaging.

Q: Can the 5680102173F be used in existing PCB designs for the SSF-LXH475GAYID?

A: Physical compatibility depends on PCB footprint design. Both components use 3mm T-1 through-hole right-angle mounting. Verification of specific pad spacing and orientation is required during design review.

Q: What is the inventory status of the substitute part?

A: The 5680102173F has 1248 pieces in new original stock, ensuring availability for production requirements.
