SS-79100-007 Equivalent & Substitute Parts

Part Overview

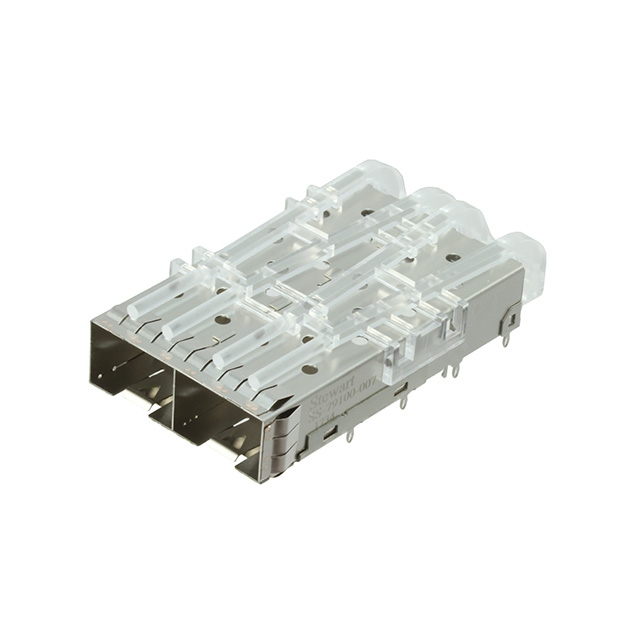

The SS-79100-007 is a Position SFP+ Cage connector in a ganged (1 x 2) configuration, manufactured by Stewart Connector. This pluggable connector features press-fit termination and right-angle mounting for through-hole applications. The connector is designed for high-speed optical transceiver modules and is currently in active production status with 743 units in stock.

Substitute parts are identified when equivalent connectors meet the same electrical and mechanical specifications, enabling direct replacement in applications where the original part is unavailable or supply constraints exist.

Substiute Parts

SS-79100-007

Stewart ConnectorIn Stock: 782SS-79100-007 Datasheet

Current PartRFQ

2007262-1

TE Connectivity AMP ConnectorsIn Stock: 12552007262-1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SS-79100-007 is determined by strict equivalence across the following parameters:

• Connector Type: SFP+
• Connector Style: Cage, Ganged (1 x 2)
• Mounting Type: Through Hole, Right Angle
• Termination Method: Press-Fit
• Features: EMI Shielded, Light Pipe
• Packaging: Tray
• RoHS Compliance: ROHS3 Compliant or RoHS Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The substitute part 2007262-1 (TE Connectivity AMP Connectors) meets all these criteria and is therefore classified as a direct equivalent.

Parameter Comparison

Engineering Selection Recommendations

Both the SS-79100-007 and 2007262-1 are active production parts with full RoHS compliance and identical electrical and mechanical specifications. Selection between these parts should be based on:

• Availability: The 2007262-1 has higher current inventory (1220 units versus 743 units).
• Compliance Requirements: Both parts meet ROHS3/RoHS standards and carry EAR99 classification, suitable for standard commercial applications.
• Supply Chain Considerations: Either part may be selected based on procurement lead times and supplier relationships.

Frequently Asked Questions (FAQ)

Q: Can the 2007262-1 be used as a direct replacement for the SS-79100-007?

A: Yes. Both connectors are electrically and mechanically equivalent SFP+ cage connectors with identical mounting, termination, and feature specifications.

Q: Are there any differences in RoHS compliance between these parts?

A: The SS-79100-007 is ROHS3 Compliant, while the 2007262-1 is RoHS Compliant. Both meet current regulatory requirements for lead-free manufacturing.

Q: What is the significance of the ganged (1 x 2) configuration?

A: This indicates the connector accommodates two SFP+ modules in a single housing unit, enabling dual-port optical transceiver applications on a single PCB footprint.

Q: Are the press-fit termination requirements identical?

A: Yes. Both connectors use press-fit termination for through-hole mounting, requiring the same insertion force and PCB pad specifications.

Q: Does packaging affect interchangeability?

A: No. Both parts are supplied in tray packaging and are functionally interchangeable for board assembly operations.
