SS-6446-NF-50 Equivalent & Substitute Parts

Part Overview

The SS-6446-NF-50 is a modular jack connector manufactured by Stewart Connector, designed for 6p4c (RJ11, RJ14) applications with 90° right-angle orientation and unshielded configuration. This connector features through-hole solder termination with board lock functionality and operates across the -40°C to 85°C temperature range.

The SS-6446-NF-50 is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure component availability, and support ongoing production and maintenance requirements.

Substiute Parts

SS-6446-NF-50

Stewart ConnectorIn Stock: 961SS-6446-NF-50 Datasheet

Current PartRFQ

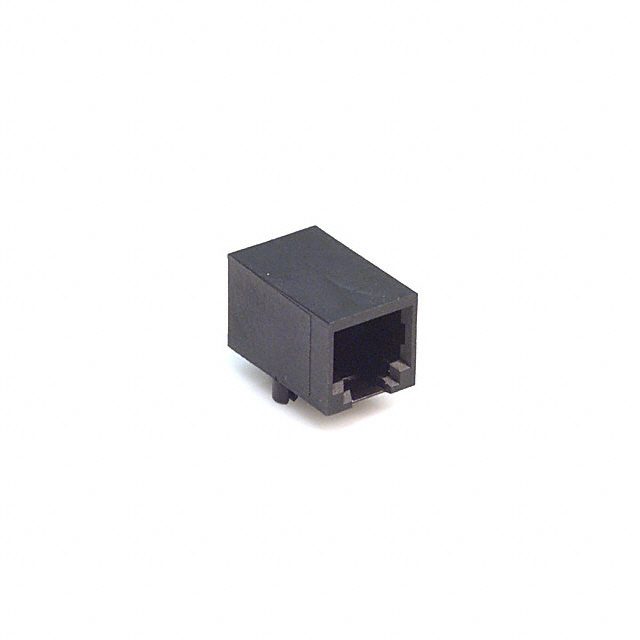

SS-6446-NF

Stewart ConnectorIn Stock: 7442SS-6446-NF Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the SS-6446-NF-50 is determined by strict equivalence across the following critical parameters:

• Connector type (Jack)
• Contact configuration (6p4c / RJ11, RJ14)
• Mounting method (Through Hole)
• Orientation (90° right-angle)
• Termination method (Solder)
• Shielding type (Unshielded)
• Port and row configuration (1 port, 1 row)
• Board lock feature presence
• Contact material and finish (Copper Alloy, Gold)
• Housing material (Thermoplastic)
• Operating temperature range (-40°C ~ 85°C)

Parts meeting all these criteria are considered direct functional equivalents and may be substituted without design modification.

Parameter Comparison

Engineering Selection Recommendations

The SS-6446-NF is the manufacturer-recommended substitute for the obsolete SS-6446-NF-50. Both parts share identical functional and mechanical specifications across all critical parameters required for direct substitution in 6p4c modular jack applications.

The SS-6446-NF offers the advantage of active product status, ensuring ongoing availability and supply chain continuity. The part is ROHS3 compliant, meeting current regulatory requirements. Both parts maintain REACH unaffected status and identical export classification (EAR99).

The contact finish thickness differs between the two parts (50.0µin versus 30.0µin), with the substitute featuring a thinner gold plating. This difference does not affect functional compatibility or electrical performance within the specified operating parameters.

Frequently Asked Questions (FAQ)

Q: Can SS-6446-NF directly replace SS-6446-NF-50 in existing designs?

A: Yes. The SS-6446-NF meets all functional and mechanical requirements of the SS-6446-NF-50. No design modifications are required for substitution.

Q: What is the difference in contact finish thickness between these parts?

A: The SS-6446-NF-50 features 50.0µin (1.27µm) gold plating, while the SS-6446-NF features 30.0µin (0.76µm) gold plating. Both thicknesses provide adequate contact durability and electrical performance for the specified application.

Q: Why is the SS-6446-NF-50 classified as obsolete?

A: Product obsolescence is determined by manufacturer lifecycle decisions. The SS-6446-NF remains in active production and serves as the current equivalent.

Q: Are there packaging differences between these parts?

A: The SS-6446-NF-50 packaging is not specified in available documentation. The SS-6446-NF is supplied in tube packaging. Confirm packaging requirements with your procurement specifications.

Q: Do both parts meet current regulatory compliance standards?

A: The SS-6446-NF is ROHS3 compliant. Both parts maintain REACH unaffected status and identical export classification (EAR99, HTSUS 8536.69.4040).

Q: What is the operating temperature range for these connectors?

A: Both the SS-6446-NF-50 and SS-6446-NF operate across -40°C to 85°C, supporting applications across industrial and commercial temperature environments.
