SS63600-007G Modular Connector Equivalent & Substitute Parts

Part Overview

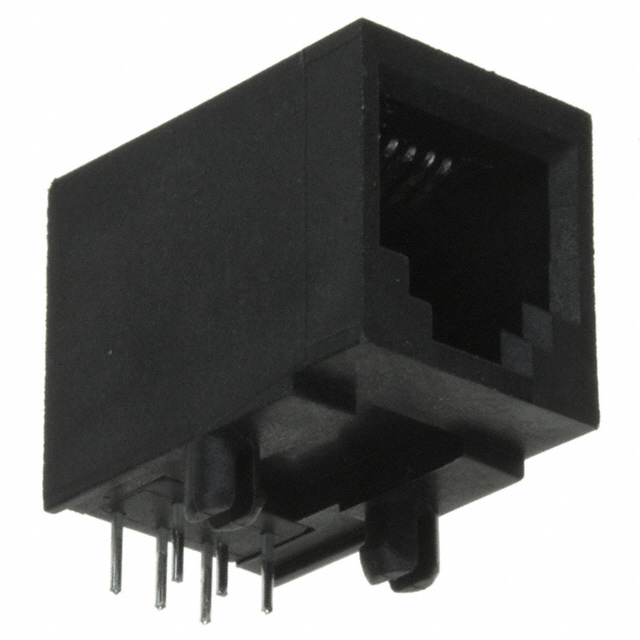

The SS63600-007G is a Jack Modular Connector with 6p6c configuration (RJ11, RJ12, RJ14, RJ25 compatible) manufactured by Stewart Connector. This connector features a 90° right-angle orientation, through-hole solder termination, and unshielded design. The part is currently classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure supply chain availability for new production and field replacements.

Substiute Parts

SS63600-007G

Stewart ConnectorIn Stock: 916SS63600-007G Datasheet

Current PartRFQ

SS70600-005G

Stewart ConnectorIn Stock: 1004SS70600-005G Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete SS63600-007G is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Jack connector with 6p6c contact arrangement
• Mechanical Orientation: 90° right-angle mounting with downward tab direction
• Electrical Interface: Unshielded design with copper alloy contacts finished in gold
• Assembly Method: Through-hole solder termination
• Environmental Ratings: Operating temperature range of -40°C to 85°C
• Functional Features: Board lock mechanism with EPP918A specification

The SS70600-005G meets all these criteria as an active equivalent from the same manufacturer, representing a direct functional replacement with identical electrical and mechanical characteristics.

Parameter Comparison

Engineering Selection Recommendations

The SS70600-005G is the direct equivalent for the obsolete SS63600-007G. Both connectors are manufactured by Stewart Connector and share identical electrical and mechanical specifications across all critical parameters. The substitute part is currently in active production status with 960 units available in inventory.

The SS70600-005G provides additional compliance advantage through ROHS3 certification, meeting current regulatory requirements for new designs and manufacturing. Both parts maintain identical moisture sensitivity levels and export classifications, ensuring no additional compliance burden in component substitution.

Selection of the SS70600-005G eliminates obsolescence risk while maintaining full functional and physical compatibility with existing designs utilizing the SS63600-007G.

Frequently Asked Questions (FAQ)

Q: Are SS63600-007G and SS70600-005G mechanically interchangeable?

A: Yes. Both connectors feature identical 90° right-angle orientation, through-hole mounting, downward tab direction, and board lock mechanism. Physical footprint and mounting hole patterns are equivalent.

Q: Can SS70600-005G be used as a direct replacement in existing PCB designs?

A: Yes. The substitute part maintains identical solder termination specifications, contact configuration (6p6c), and all mechanical dimensions. No PCB layout modifications are required.

Q: What is the difference between the Series 63 and Series 70 designations?

A: Series designation reflects manufacturer product line evolution. The Series 70 (SS70600) represents the active production equivalent of the obsolete Series 63 (SS63600), with identical functional specifications.

Q: Does the ROHS3 compliance of SS70600-005G affect compatibility?

A: No. ROHS3 compliance indicates the substitute part meets current environmental regulations. This does not alter electrical or mechanical performance and is compatible with designs originally specified for the non-certified SS63600-007G.

Q: Are there any contact finish or material differences between these parts?

A: No. Both connectors use copper alloy contacts with identical gold plating thickness of 30.0µin (0.76µm), ensuring equivalent electrical performance and reliability.

Q: What is the operating temperature range for both connectors?

A: Both the SS63600-007G and SS70600-005G operate across -40°C to 85°C, providing identical thermal performance specifications.
