Equivalent & Substitute Parts for SS-5H-5A-BKH

Part Overview

The SS-5H-5A-BKH is a 5 A, 300 V AC/DC board mount fuse manufactured by Eaton - Electronics Division. This slow blow fuse is designed for through hole radial mounting in a box package configuration and is suitable for circuit protection applications requiring cartridge style exclusion. The part is currently active in production with 808 pieces in stock. Alternative equivalent parts may be required due to inventory availability, compliance requirements, or specific application constraints.

Substiute Parts

SS-5H-5A-BKH

Eaton - Electronics DivisionIn Stock: 869SS-5H-5A-BKH Datasheet

Current PartRFQ

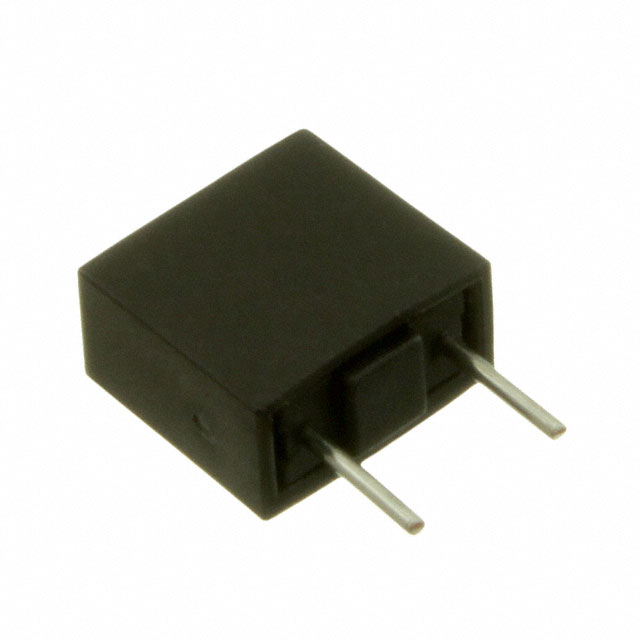

SS-5H-5A-BK

Eaton - Electronics DivisionIn Stock: 2627SS-5H-5A-BK Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SS-5H-5A-BKH is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Current Rating: 5 A
• Voltage Rating - AC: 300 V
• Response Time: Slow Blow
• Mounting Type: Through Hole
• Fuse Type: Board Mount (Cartridge Style Excluded)
• Package / Case: Radial, Box
• Breaking Capacity @ Rated Voltage: 100 A
• Melting I²t: 120
• Operating Temperature Range: -40°C ~ 125°C
• Size / Dimension: 0.335" L x 0.170" W x 0.337" H (8.50mm x 4.30mm x 8.55mm)
• DC Cold Resistance: 7.35 mOhms

The SS-5H-5A-BK qualifies as a parametric equivalent because it matches all mandatory electrical and mechanical specifications. Differences in RoHS compliance status do not affect functional substitution capability.

Parameter Comparison

Engineering Selection Recommendations

SS-5H-5A-BK Selection Criteria:

The SS-5H-5A-BK is a direct parametric equivalent to the SS-5H-5A-BKH across all electrical and mechanical specifications. Selection of the SS-5H-5A-BK is appropriate when:

1. RoHS3 Compliance Required: The SS-5H-5A-BK meets ROHS3 compliance requirements, whereas the SS-5H-5A-BKH is RoHS non-compliant. Applications subject to RoHS3 regulations must use the SS-5H-5A-BK.

2. Inventory Availability: The SS-5H-5A-BK maintains higher inventory levels (2564 pieces) compared to the SS-5H-5A-BKH (808 pieces), supporting supply chain continuity for high-volume production.

3. Regulatory Certification: Both parts carry identical approval certifications (CQC, cURus, KC, PSE, TUV, VDE), confirming equivalent safety and performance standards.

4. Circuit Protection Function: Both parts deliver identical circuit protection performance with 5 A current rating, 300 V AC voltage rating, slow blow response, and 100 A breaking capacity.

Frequently Asked Questions (FAQ)

Q: Can SS-5H-5A-BK replace SS-5H-5A-BKH in all applications?

A: The SS-5H-5A-BK is a parametric equivalent and can replace the SS-5H-5A-BKH in applications where RoHS3 compliance is not a constraint. Both parts are electrically and mechanically identical. If the application requires RoHS non-compliant components, the SS-5H-5A-BKH must be used.

Q: What is the difference between SS-5H-5A-BKH and SS-5H-5A-BK?

A: The primary difference is RoHS compliance status. The SS-5H-5A-BKH is RoHS non-compliant, while the SS-5H-5A-BK is ROHS3 compliant. All electrical parameters, mechanical dimensions, thermal ratings, and breaking capacity are identical.

Q: Are the physical dimensions identical?

A: Yes. Both parts have identical dimensions of 0.335" L x 0.170" W x 0.337" H (8.50mm x 4.30mm x 8.55mm) and use the same radial, box package configuration for through hole mounting.

Q: Do both parts have the same approval certifications?

A: Yes. Both the SS-5H-5A-BKH and SS-5H-5A-BK carry identical regulatory approvals: CQC, cURus, KC, PSE, TUV, and VDE.

Q: What is the melting I²t value, and does it differ between parts?

A: The melting I²t value is 120 for both parts. This parameter is identical and indicates equivalent thermal response characteristics.

Q: Can these fuses be used in DC applications?

A: Both parts are rated for 300 V AC/DC operation. The DC cold resistance is 7.35 mOhms for both parts, confirming equivalent DC performance.

Q: What is the operating temperature range?

A: Both parts operate across the identical temperature range of -40°C to 125°C, supporting equivalent thermal performance in diverse environmental conditions.
