SS-5-5A-AP Equivalent & Substitute Parts

Part Overview

The SS-5-5A-AP is a board mount fuse manufactured by Eaton - Electronics Division, rated for 5 A at 250 V AC/DC with slow blow response characteristics. This component is designed for through-hole radial mounting in standard PCB applications and is currently in active production status. Substitute parts are identified when equivalent electrical ratings, mechanical compatibility, and approval certifications align with the original specification, enabling seamless component replacement in manufacturing and field service scenarios.

Substiute Parts

SS-5-5A-AP

Eaton - Electronics DivisionIn Stock: 1837SS-5-5A-AP Datasheet

Current PartRFQ

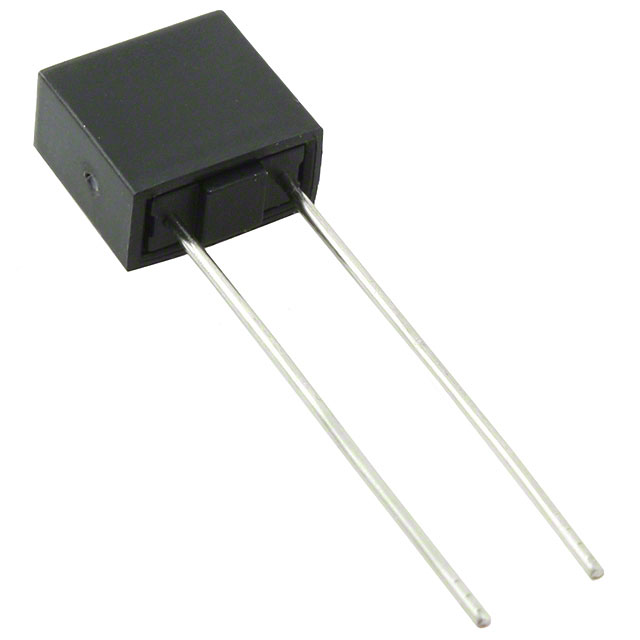

SS-5H-5A-AP

Eaton - Electronics DivisionIn Stock: 2514SS-5H-5A-AP Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the SS-5-5A-AP with the SS-5H-5A-AP is based on the following alignment of critical electrical and mechanical parameters:

Matched Parameters:

• Current Rating: 5 A (identical)
• Voltage Rating - AC: 250 V (identical)
• Response Time: Slow Blow (identical)
• Mounting Type: Through Hole (identical)
• Package / Case: Radial, Box (identical)
• Physical Dimensions: 0.335" L x 0.169" W x 0.329" H / 8.50mm x 4.30mm x 8.35mm (identical)
• Operating Temperature Range: -40°C ~ 125°C (identical)
• Melting I²t: 120 (identical)
• Fuse Type: Board Mount (Cartridge Style Excluded) (identical)

Both parts belong to the Eaton - Electronics Division fuse product line and maintain functional equivalence for board-level circuit protection applications. The substitute part is qualified for direct replacement in applications where the original part is specified.

Parameter Comparison

Engineering Selection Recommendations

Both the SS-5-5A-AP and SS-5H-5A-AP are active production components from Eaton - Electronics Division with full regulatory compliance. The SS-5H-5A-AP offers an enhanced breaking capacity of 100 A compared to the 50 A rating of the SS-5-5A-AP, while maintaining identical electrical and mechanical specifications for circuit protection function. Both parts carry multiple international approval certifications including VDE and CQC compliance. The SS-5H-5A-AP additionally holds ROHS3 compliance status and includes REACH Unaffected designation. Selection between these parts depends on application-specific breaking capacity requirements and regional certification mandates.

Frequently Asked Questions (FAQ)

Q: Can SS-5H-5A-AP replace SS-5-5A-AP in existing designs?

A: Yes. Both parts share identical current rating (5 A), voltage rating (250 V AC), response time (Slow Blow), mounting type (Through Hole), package configuration (Radial, Box), and physical dimensions (8.50mm x 4.30mm x 8.35mm). The electrical and mechanical interfaces are fully compatible.

Q: What is the difference in breaking capacity between these parts?

A: The SS-5-5A-AP has a breaking capacity of 50 A at rated voltage, while the SS-5H-5A-AP has a breaking capacity of 100 A at rated voltage. Both parts operate identically under normal circuit conditions at their 5 A rated current.

Q: Are there differences in regulatory compliance?

A: Both parts hold VDE and CQC certifications. The SS-5H-5A-AP includes additional certifications (KC, PSE, TUV) and carries ROHS3 compliance with REACH Unaffected status, compared to RoHS Compliant status for the SS-5-5A-AP.

Q: Do these parts have identical physical dimensions?

A: Yes. Both parts measure 0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm) and are packaged in identical Radial, Box configuration for through-hole PCB mounting.

Q: What is the operating temperature range for both parts?

A: Both the SS-5-5A-AP and SS-5H-5A-AP operate across the temperature range of -40°C to 125°C.
