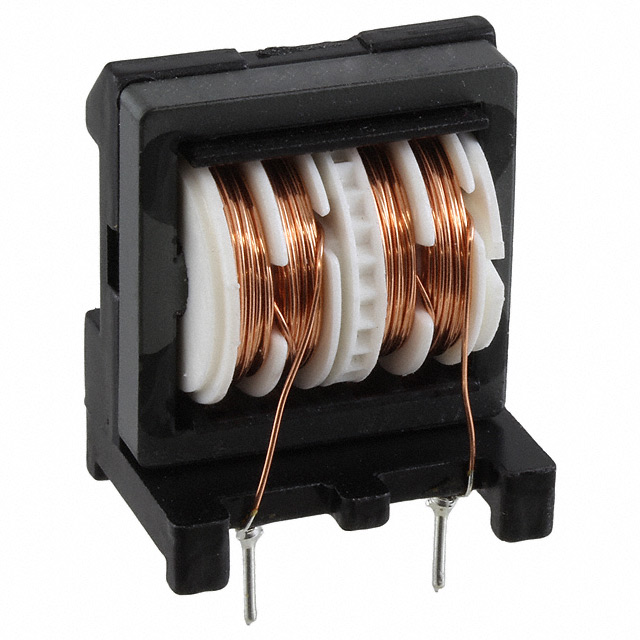

SS24V-R06500-CH Equivalent & Substitute Parts

Part Overview

The SS24V-R06500-CH is a 2-line common mode choke (CMC) designed for through-hole mounting in power line filtering applications. Manufactured by KEMET, this component operates across a temperature range of -25°C to 120°C with an AC voltage rating of 250V. The part is currently in Active product status and maintains full ROHS3 compliance. Substitute parts may be required due to inventory constraints, design revisions, or end-of-life considerations for related product lines.

Substiute Parts

SS24V-R06500-CH

KEMETIn Stock: 966SS24V-R06500-CH Datasheet

Current PartRFQ

SS21V-R400005

KEMETIn Stock: 837SS21V-R400005 Datasheet

Parametric EquivalentRFQ

SS24V-K06450-CH

KEMETIn Stock: 694SS24V-K06450-CH Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SS24V-R06500-CH is determined by the following critical parameters:

Primary Substitution Criteria:

• Filter Type: Power Line
• Number of Lines: 2
• Voltage Rating - AC: 250V
• Operating Temperature Range: -25°C ~ 120°C
• Mounting Type: Through Hole
• Package / Case: Vertical, 4 PC Pin
• RoHS Status: ROHS3 Compliant

Parts meeting all these parameters are classified as parametric equivalents. The SS24V-R06500-CH has two identified substitutes within the KEMET SS series that satisfy these core requirements. Physical dimensions and product status may vary between equivalents but do not preclude substitution when electrical and mechanical interfaces are preserved.

Parameter Comparison

Engineering Selection Recommendations

SS24V-K06450-CH is the preferred substitute for new designs and production applications. This part maintains Active product status, identical electrical specifications, and matching physical dimensions to the SS24V-R06500-CH. Both components share the same base product number (SS24V) and are fully compatible within the same design envelope.

SS21V-R400005 is classified as a parametric equivalent but carries a "Not For New Designs" product status. This designation indicates the part is in mature or declining lifecycle phase. While electrical parameters remain equivalent, this part should be reserved for legacy system maintenance or replacement scenarios only. The reduced physical dimensions (20.50mm x 16.50mm versus 26.00mm x 19.00mm) may require PCB layout verification before implementation.

Both substitutes maintain ROHS3 compliance and identical AC voltage ratings, operating temperature ranges, and mounting configurations as the primary part.

Frequently Asked Questions (FAQ)

Q: Can SS21V-R400005 be used as a direct replacement for SS24V-R06500-CH in new product designs?

A: No. SS21V-R400005 carries a "Not For New Designs" product status. While electrical parameters are equivalent, KEMET designates this part for legacy applications only. SS24V-K06450-CH is the appropriate substitute for new designs.

Q: What is the primary difference between SS24V-R06500-CH and SS24V-K06450-CH?

A: Both parts share identical electrical specifications, voltage ratings, temperature ranges, and physical dimensions. The primary difference is the internal component designation (R06500 versus K06450). Both maintain Active product status and are suitable for equivalent applications.

Q: Will SS21V-R400005 fit the same PCB footprint as SS24V-R06500-CH?

A: No. SS21V-R400005 has reduced dimensions (20.50mm x 16.50mm x 25.50mm height) compared to SS24V-R06500-CH (26.00mm x 19.00mm x 31.50mm height). PCB layout and mechanical clearance must be re-evaluated before substitution.

Q: Are all three parts ROHS3 compliant?

A: Yes. SS24V-R06500-CH, SS21V-R400005, and SS24V-K06450-CH are all ROHS3 compliant with identical REACH and ECCN classifications.

Q: What mounting configuration do these parts require?

A: All three parts are through-hole mounted components with vertical orientation and 4-pin configuration. No surface-mount alternatives are available within this substitution group.
