SS-22F06-G5-A Equivalent & Substitute Parts

Part Overview

The SS-22F06-G5-A is a slide switch manufactured by E-Switch, part of the SS and LAMB series. This component is a standard slide switch designed for general switching applications. The part is currently in stock with 733 units available as new original inventory. Identifying equivalent and substitute parts is essential for supply chain continuity, design flexibility, and ensuring component availability across different procurement channels and manufacturing regions.

Substiute Parts

SS-22F06-G5-A

E-SwitchIn Stock: 813SS-22F06-G5-A Datasheet

Current PartRFQ

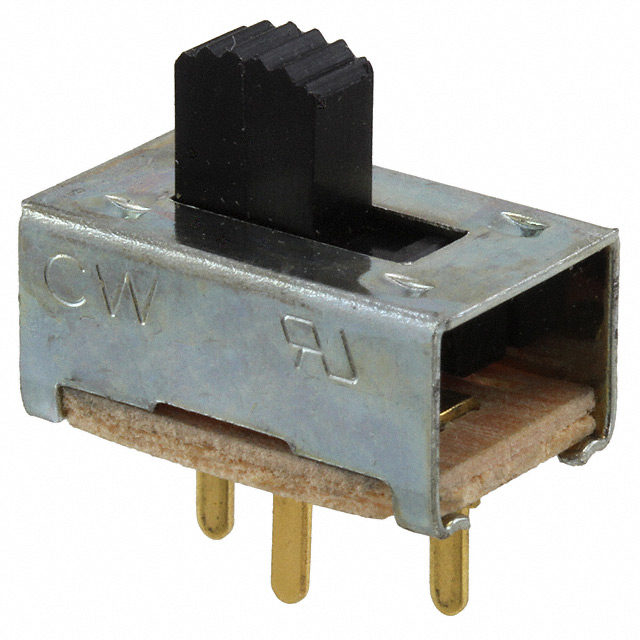

GF-124-0196

CW IndustriesIn Stock: 2058GF-124-0196 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the SS-22F06-G5-A is determined by functional equivalence within the slide switch category. The primary substitute identified is the GF-124-0196 manufactured by CW Industries. This substitution is valid based on the following criteria:

Key Substitution Parameters:

• Product category: Slide Switch
• Switch type: SPDT (Single Pole Double Throw) configuration
• Mounting method: Through Hole
• Contact material and finish compatibility
• Electrical ratings: Current and voltage specifications
• Operating temperature range compatibility
• Mechanical and electrical life cycle ratings
• RoHS and REACH compliance status

The GF-124-0196 maintains functional compatibility as a slide switch suitable for equivalent applications within the specified electrical and mechanical constraints.

Parameter Comparison

Engineering Selection Recommendations

The GF-124-0196 is classified as an active product with full RoHS3 compliance and REACH unaffected status, ensuring regulatory alignment with current environmental and safety standards. The substitute part maintains a higher inventory level of 2034 units, providing enhanced supply chain availability compared to the primary part's 733 units.

Selection between the SS-22F06-G5-A and GF-124-0196 should be based on design requirements, PCB layout constraints, and specific electrical load specifications. Both parts are available as new original stock from established manufacturers, ensuring quality and traceability for production applications.

Frequently Asked Questions (FAQ)

Q: What makes GF-124-0196 a valid substitute for SS-22F06-G5-A?

A: Both components are slide switches suitable for equivalent switching applications. The GF-124-0196 provides documented electrical specifications (500mA at 125V AC/DC, SPDT configuration) and mechanical characteristics that align with standard slide switch applications. Substitution validity depends on your specific circuit requirements matching the GF-124-0196 electrical ratings.

Q: Are there packaging differences between these parts?

A: The SS-22F06-G5-A packaging is listed as bulk. The GF-124-0196 is also supplied in bulk packaging. Both parts use Through Hole mounting with PC Pin termination, ensuring compatibility with standard PCB assembly processes.

Q: What compliance certifications apply to the substitute part?

A: The GF-124-0196 is ROHS3 compliant and REACH unaffected, meeting current environmental regulations. The part carries an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions during storage and handling.

Q: How do the mechanical life ratings compare?

A: The GF-124-0196 specifies 10,000 mechanical cycles and 6,000 electrical cycles. These ratings define the component's operational durability under specified load conditions. Verify these cycle ratings align with your application's expected switch actuation frequency.

Q: What is the operating temperature range for the substitute?

A: The GF-124-0196 operates across -10°C to 104°C, covering standard industrial and commercial temperature environments. Confirm this range accommodates your application's thermal requirements.
