SS-104-S-22-N Equivalent & Substitute Parts

Part Overview

The SS-104-S-22-N is a 4-position receptacle connector manufactured by Samtec Inc., designed for board-to-board applications with 0.100" (2.54mm) pitch through-hole mounting. This connector features gold-plated mating contacts and tin-plated posts for reliable solder termination. The part is currently active in production with 865 units in stock. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when inventory requirements necessitate alternative stock sources.

Substiute Parts

SS-104-S-22-N

Samtec Inc.In Stock: 968SS-104-S-22-N Datasheet

Current PartRFQ

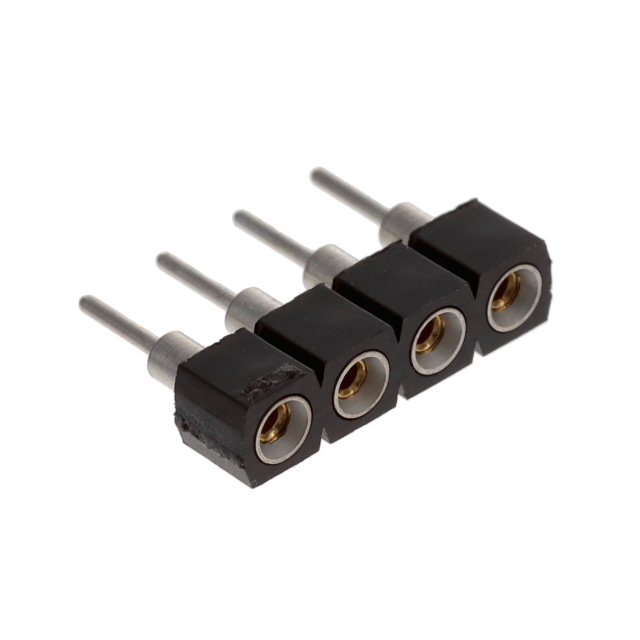

SS-104-S-2

Samtec Inc.In Stock: 1441SS-104-S-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SS-104-S-22-N is determined by strict equivalence across the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (4)
• Pitch - mating (0.100" / 2.54mm)
• Number of rows (1)
• Mounting type (Through Hole)
• Termination method (Solder)
• Contact finish - mating (Gold)
• Insulation material (Polybutylene Terephthalate, Glass Filled)
• Operating temperature range (-55°C ~ 125°C)
• RoHS compliance status (ROHS3 Compliant)

The substitute part SS-104-S-2 meets all these criteria and is classified within the same SS series from Samtec Inc., sharing identical mechanical and electrical specifications with the main part number.

Parameter Comparison

Engineering Selection Recommendations

Both SS-104-S-22-N and SS-104-S-2 are active production parts from Samtec Inc. with full ROHS3 compliance and identical electrical and mechanical specifications. Selection between these part numbers should be based on inventory availability and procurement lead times. The SS-104-S-2 currently maintains higher inventory levels (1,392 units) compared to SS-104-S-22-N (865 units), making it a viable alternative for applications requiring immediate availability. Both parts satisfy the same design requirements and regulatory compliance standards.

Frequently Asked Questions (FAQ)

Q: Can SS-104-S-2 be used as a direct replacement for SS-104-S-22-N?

A: Yes. Both parts are functionally equivalent across all specified electrical and mechanical parameters, including connector type, contact configuration, pitch, mounting method, and contact finishes.

Q: Are there any differences in packaging or handling between these part numbers?

A: Both parts are supplied in bulk packaging with identical moisture sensitivity level (MSL 1 - Unlimited), requiring no special storage or handling precautions.

Q: Do both parts meet the same compliance standards?

A: Yes. Both SS-104-S-22-N and SS-104-S-2 are ROHS3 compliant and carry identical regulatory classifications (ECCN: EAR99, HTSUS: 8536.69.4040).

Q: What is the operating temperature range for these connectors?

A: Both parts operate across the range of -55°C to 125°C, suitable for industrial and commercial applications.

Q: Are the contact finishes identical between the two part numbers?

A: Yes. Both parts feature gold-plated mating contacts with 10.0µin (0.25µm) thickness and tin-plated posts for solder termination.
