SS-01GL1131 Equivalent & Substitute Parts

Part Overview

The SS-01GL1131 is a snap action SPDT (Single Pole Double Throw) switch manufactured by Omron Electronics Inc-EMC Div. This component is designed for applications requiring reliable switching with momentary operation. The part is currently in stock with 1,040 units available as new original inventory.

Identifying equivalent and substitute parts is necessary when the primary part number becomes unavailable, when procurement lead times require alternative sourcing, or when design flexibility permits component standardization across product lines.

Substiute Parts

SS-01GL1131

Omron Electronics Inc-EMC DivIn Stock: 1144SS-01GL1131 Datasheet

Current PartRFQ

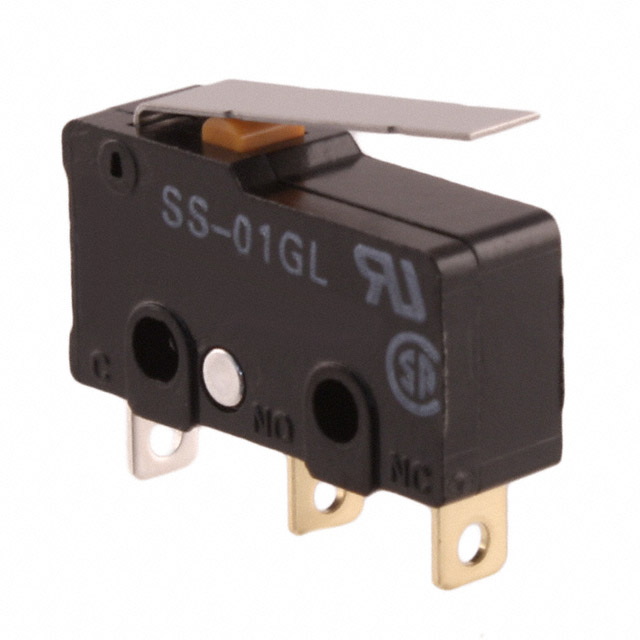

SS-01GL

Omron Electronics Inc-EMC DivIn Stock: 3023SS-01GL Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SS-01GL1131 is determined by the following critical parameters:

• Circuit Configuration: Must be SPDT (Single Pole Double Throw)
• Current Rating: 100mA (0.1A) AC/DC maximum
• Voltage Rating: 125V AC / 30V DC minimum
• Switch Function: On-Momentary operation
• Mounting Type: Chassis Mount
• Termination Style: Solder Lug
• Operating Temperature Range: -25°C to 85°C minimum
• Series Compatibility: SS series

The substitute part SS-01GL meets all these criteria and is classified as a manufacturer-recommended equivalent within the same product series.

Parameter Comparison

Engineering Selection Recommendations

The SS-01GL is the manufacturer-recommended substitute for the SS-01GL1131. Both parts are Active status products and maintain identical electrical, mechanical, and environmental specifications. Both components are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements for electronic component manufacturing and distribution.

Selection between these parts should be based on availability and packaging requirements. The SS-01GL is supplied in Tray packaging with 2,948 units currently in stock, compared to the SS-01GL1131 with 1,040 units available.

Frequently Asked Questions (FAQ)

Q: Can SS-01GL be used as a direct replacement for SS-01GL1131?

A: Yes. Both parts share identical electrical ratings (100mA at 125V AC / 30V DC), mechanical characteristics (50gf operating force, 0.345" operating position), and environmental specifications (-25°C to 85°C operating range). Both are SPDT momentary switches with chassis mount solder lug termination.

Q: What are the key parameters that determine substitution compatibility?

A: Substitution is valid when the following parameters match: SPDT circuit configuration, 100mA current rating, 125V AC / 30V DC voltage rating, On-Momentary switch function, Chassis Mount mounting type, and Solder Lug termination style.

Q: Are there packaging differences between these parts?

A: The SS-01GL1131 and SS-01GL differ in packaging format. The SS-01GL is supplied in Tray packaging, while the SS-01GL1131 packaging format is not specified in the available data. Verify packaging requirements for your assembly process before selection.

Q: Do both parts meet the same compliance standards?

A: Yes. Both the SS-01GL1131 and SS-01GL are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements.

Q: What is the operational difference between these switches?

A: There is no operational difference. Both parts are snap action SPDT switches with identical operating force (50gf), operating position (0.345"), differential travel (0.031"), and overtravel (0.047"). Both support 200,000 electrical cycles and 30,000,000 mechanical cycles.
