SQLEDS2-6-26 LED Spacer Equivalent & Substitute Parts

Part Overview

The SQLEDS2-6-26 is a T1 3/4 LED standoff spacer manufactured by Essentra Components. This black PVC component measures 0.375" (9.53mm) in length and is designed for T1 3/4 LED applications. The part is currently active in production with 900 pieces available in stock. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, enabling direct replacement in assembly applications without design modification.

Substiute Parts

SQLEDS2-6-26

Essentra ComponentsIn Stock: 915SQLEDS2-6-26 Datasheet

Current PartRFQ

LEDM-1-10

Essentra ComponentsIn Stock: 2124LEDM-1-10 Datasheet

Parametric EquivalentRFQ

LEDM-3-10

Essentra ComponentsIn Stock: 1882LEDM-3-10 Datasheet

Parametric EquivalentRFQ

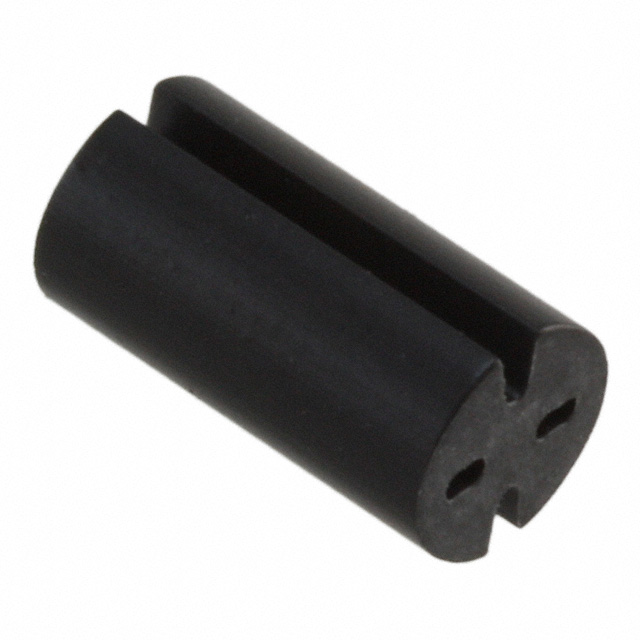

LEDS2-6-26

Essentra ComponentsIn Stock: 2493LEDS2-6-26 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the SQLEDS2-6-26 are qualified based on the following critical parameters:

• LED Type: T1 3/4 (must match exactly)
• Material: PVC (rigid or flexible variants acceptable)
• Color: Black
• Product Status: Active
• Compliance: RoHS Compliant and REACH Unaffected

Length variation is permitted within the substitute group. The SQLEDS2-6-26 operates at 0.375" (9.53mm), while qualified substitutes LEDM-1-10 and LEDM-3-10 operate at 0.393" (10.00mm). This 0.018" (0.47mm) difference falls within acceptable mechanical tolerance for LED standoff applications. The LEDS2-6-26 maintains identical length at 0.375" (9.53mm) and introduces flexible PVC as an alternative material option while preserving all other critical parameters.

Parameter Comparison

Engineering Selection Recommendations

All substitute parts maintain active product status and full compliance with RoHS and REACH regulations, ensuring regulatory continuity in applications subject to environmental standards.

LEDS2-6-26 provides identical dimensional specifications to the SQLEDS2-6-26 with the addition of flexible PVC material properties. This substitute is appropriate for applications requiring mechanical compliance or vibration damping characteristics.

LEDM-1-10 and LEDM-3-10 introduce a 0.018" (0.47mm) length increase relative to the original specification. These parts are appropriate for applications where this dimensional variance does not conflict with PCB layout or mechanical assembly constraints. Both LEDM variants maintain identical LED type, material composition, and color specifications.

Selection between substitute options depends on specific application requirements regarding material flexibility and dimensional tolerance. All qualified substitutes are manufactured by Essentra Components and maintain equivalent electrical and mechanical performance within their specified parameters.

Frequently Asked Questions (FAQ)

Q: What determines if a part can substitute for the SQLEDS2-6-26?

A: Substitute parts must match the following parameters: T1 3/4 LED type, black color, PVC material composition, active product status, and RoHS/REACH compliance. Length variation within 0.018" (0.47mm) is acceptable for LED standoff applications.

Q: Can LEDM-1-10 and LEDM-3-10 be used interchangeably with SQLEDS2-6-26?

A: Yes, both LEDM variants are qualified substitutes. The 0.393" (10.00mm) length differs from the original 0.375" (9.53mm) by 0.018" (0.47mm). Compatibility depends on whether this dimensional difference accommodates your specific PCB layout and mechanical assembly requirements.

Q: What is the difference between LEDS2-6-26 and SQLEDS2-6-26?

A: Both parts share identical length (0.375" / 9.53mm), LED type (T1 3/4), color (black), and compliance certifications. LEDS2-6-26 specifies flexible PVC material, while SQLEDS2-6-26 uses standard PVC. Material flexibility may provide vibration damping benefits in certain applications.

Q: Are all substitute parts available in the same packaging format?

A: Yes, all qualified substitutes are supplied in bulk packaging, matching the original SQLEDS2-6-26 packaging specification.

Q: Do substitute parts maintain the same compliance certifications?

A: All substitute parts are RoHS Compliant and REACH Unaffected, maintaining regulatory equivalence with the original SQLEDS2-6-26 specification.
