SPTMBP1PMCDF Equivalent & Substitute Parts

Part Overview

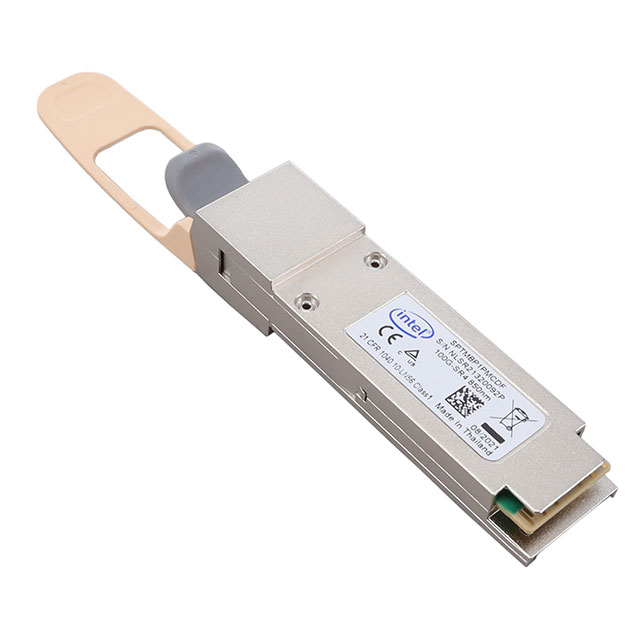

The SPTMBP1PMCDF is a transceiver module manufactured by Intel Silicon Photonics, designed for high-speed Ethernet applications. This QSFP28 pluggable optical transceiver operates at 100Gbps with 850nm wavelength transmission over multimode fiber, supporting distances up to 100 meters. The part is currently discontinued at DiGi Electronics, necessitating identification of functionally equivalent alternatives that maintain compatibility with existing system architectures and performance requirements.

Substiute Parts

SPTMBP1PMCDF

Intel Silicon PhotonicsIn Stock: 737SPTMBP1PMCDF Datasheet

Current PartRFQ

STA-100G-SR4

Cinch Connectivity SolutionsIn Stock: 1218STA-100G-SR4 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the SPTMBP1PMCDF is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Data Rate: 100Gbps
• Wavelength: 850nm
• Connector Type: MPO
• Mounting Type: Pluggable, QSFP28
• Application: Ethernet

Compatible Parameter Ranges:

• Supply Voltage: The main part operates at 3.3V. Substitute parts with supply voltage ranges that encompass 3.3V are electrically compatible.
• Moisture Sensitivity Level: MSL 1 (Unlimited) is the baseline; equivalent or superior ratings are acceptable.

The STA-100G-SR4 meets all mandatory matching parameters and operates within a supply voltage range (3.13V ~ 3.47V) that includes the 3.3V specification of the main part, establishing functional equivalence for system integration.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: STA-100G-SR4

The STA-100G-SR4 is the qualified substitute for the discontinued SPTMBP1PMCDF. Selection is based on the following engineering criteria:

1. Functional Equivalence: Both parts share identical data rate (100Gbps), wavelength (850nm), connector type (MPO), and form factor (QSFP28 pluggable).

2. Electrical Compatibility: The STA-100G-SR4 supply voltage range of 3.13V to 3.47V encompasses the 3.3V specification of the main part, ensuring direct compatibility with existing power delivery systems.

3. Product Availability: The STA-100G-SR4 maintains active product status with 1178 units in stock, providing supply continuity for ongoing production and replacement requirements.

4. Compliance Status: The STA-100G-SR4 carries ROHS3 compliance certification, meeting current regulatory requirements for electronic components in target markets.

5. Packaging and Handling: Both parts maintain identical MSL 1 (Unlimited) ratings, eliminating moisture sensitivity considerations during storage, handling, and deployment.

Frequently Asked Questions (FAQ)

Q: Can the STA-100G-SR4 directly replace the SPTMBP1PMCDF in existing systems?

A: Yes. Both transceivers operate at 100Gbps with 850nm wavelength, use MPO connectors, and are packaged as QSFP28 pluggable modules. The STA-100G-SR4 supply voltage range (3.13V ~ 3.47V) includes the 3.3V specification of the main part, ensuring electrical compatibility without modification to host systems.

Q: Are there differences in transmission distance or performance specifications?

A: Both parts are designed for 100-meter Ethernet transmission over multimode fiber at 850nm. The provided parameters confirm functional equivalence for this application range.

Q: What is the significance of the supply voltage range on the STA-100G-SR4?

A: The STA-100G-SR4 operates across a voltage range rather than a fixed voltage. This range (3.13V ~ 3.47V) encompasses the 3.3V nominal specification of the SPTMBP1PMCDF, confirming that the substitute part functions correctly within the electrical environment of systems designed for the original part.

Q: Does the ROHS3 compliance of the STA-100G-SR4 affect compatibility?

A: No. ROHS3 compliance is a regulatory certification indicating adherence to hazardous substance restrictions. This certification does not impact electrical or mechanical compatibility and represents an equivalent or superior compliance posture compared to the original part.

Q: Are there any moisture sensitivity considerations when switching to the STA-100G-SR4?

A: No. Both parts carry identical MSL 1 (Unlimited) ratings, indicating unlimited shelf life under standard storage conditions. Handling and storage protocols remain unchanged.

Q: What is the inventory status for the substitute part?

A: The STA-100G-SR4 is currently in active production with 1178 units available in stock, providing reliable supply for immediate and ongoing requirements.
