SP16M1F Equivalent & Substitute Parts

Part Overview

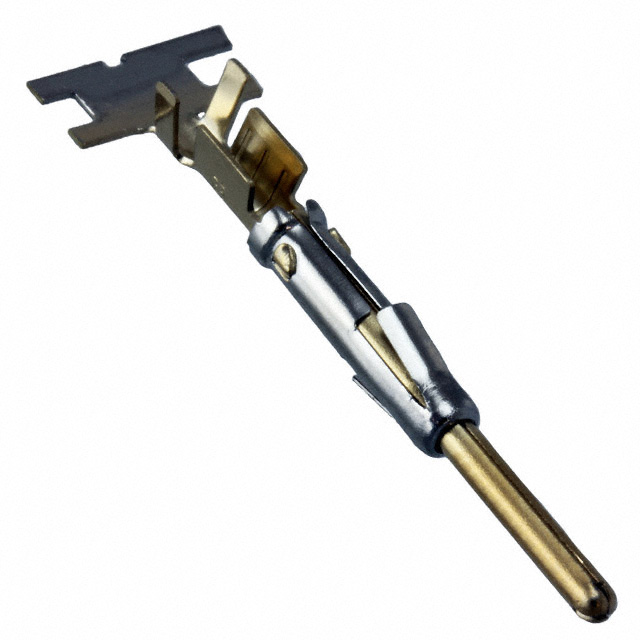

The SP16M1F is a pin contact connector from Amphenol Sine Systems Corp's ecomate® RM series, rated for 16-18 AWG wire gauges. This part is currently obsolete, making the identification of functionally equivalent substitutes essential for ongoing design support and component sourcing. Substitute parts maintain identical electrical and mechanical specifications while offering improved availability and, in some cases, extended product lifecycle status.

Substiute Parts

SP16M1F

Amphenol Sine Systems CorpIn Stock: 1195SP16M1F Datasheet

Current PartRFQ

SP16M2F

Amphenol Sine Systems CorpIn Stock: 32760SP16M2F Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The SP16M2F is functionally equivalent to the SP16M1F based on the following critical parameters that determine substitutability:

Matching Parameters:

• Contact Size: 16
• Wire Gauge Range: 16-18 AWG (0.75 ~ 1.5 mm²)
• Contact Termination: Crimp
• Contact Type: Pin, Stamped, Signal
• Contact Material: Copper Alloy
• Contact Finish: Gold (Flash thickness)
• Base Product Number: SP16
• RoHS Status: ROHS3 Compliant
• MSL Rating: 1 (Unlimited)
• REACH Status: REACH Unaffected

These matching electrical and mechanical specifications establish full functional equivalence for circuit and assembly applications.

Parameter Comparison

Engineering Selection Recommendations

SP16M2F is the designated substitute for SP16M1F. The substitution is supported by:

Product Status: SP16M1F is obsolete, while SP16M2F maintains active product status with full manufacturer support and consistent supply chain availability.

Compliance: Both parts maintain identical RoHS3 and REACH compliance certifications, ensuring regulatory equivalence for current and future applications.

Functional Equivalence: All critical electrical and mechanical specifications match exactly, including contact size, wire gauge range, termination method, material composition, and finish specifications.

Supply Chain: SP16M2F is currently in stock with 32,657 units available, compared to 1,109 units for the obsolete SP16M1F, ensuring long-term design continuity.

Frequently Asked Questions (FAQ)

Q: What determines if SP16M2F is compatible with SP16M1F? A: Compatibility is established through matching contact size (16), wire gauge range (16-18 AWG / 0.75 ~ 1.5 mm²), termination method (Crimp), contact material and finish specifications. Both parts share the same base product number (SP16), confirming functional equivalence.

Q: Does the change in series from ecomate® RM to ecomate® Aquarius™ affect performance? A: No. The series change reflects product portfolio evolution within Amphenol's connector offerings. All critical electrical and mechanical parameters remain identical, ensuring drop-in compatibility.

Q: Are there any packaging differences between SP16M1F and SP16M2F? A: SP16M2F is supplied in Cut Tape (CT) packaging. Packaging does not affect the part's electrical or mechanical function, only handling and storage logistics.

Q: Why should I transition from SP16M1F to SP16M2F? A: SP16M1F is classified as obsolete with limited remaining inventory (1,109 units). SP16M2F is an active product with significantly higher availability (32,657 units), ensuring uninterrupted supply for new production runs and redesigns.

Q: Do both parts meet the same regulatory requirements? A: Yes. Both SP16M1F and SP16M2F are ROHS3 Compliant, REACH Unaffected, and carry the same HTSUS and ECCN classifications, confirming regulatory equivalence.
