SP06AB DIP Switch SPST 6 Position Equivalent & Substitute Parts

Part Overview

The SP06AB is a DIP switch SPST (Single Pole Single Throw) component manufactured by C&K, featuring 6 positions with a slide actuator rated for 10mA at 20VDC. This through-hole, right-angle mounted switch is designed for applications requiring manual configuration or selection logic in electronic assemblies.

The SP06AB is classified as obsolete. Locating equivalent or substitute parts is necessary to support ongoing maintenance, repair, and new production requirements where this component is specified in existing designs.

Substiute Parts

SP06AB

C&KIn Stock: 760SP06AB Datasheet

Current PartRFQ

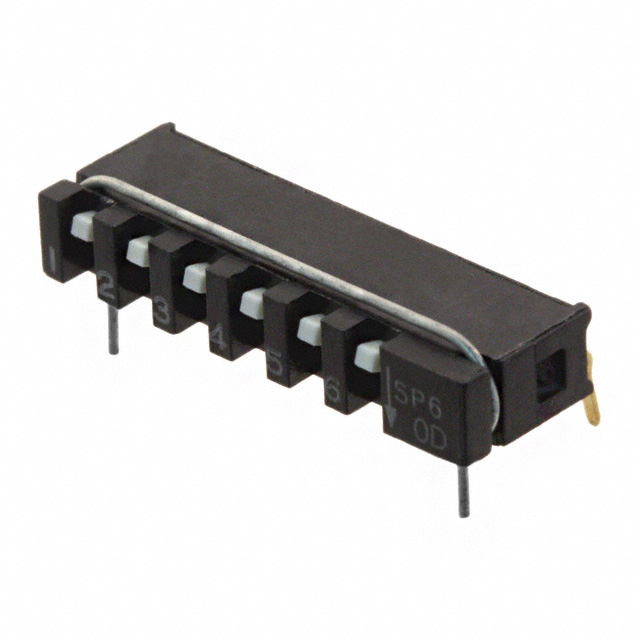

SPA06AB

C&KIn Stock: 2024SPA06AB Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SP06AB is determined by strict equivalence across the following critical parameters:

• Circuit configuration: SPST topology
• Position count: 6 positions
• Electrical ratings: 10mA current, 20VDC voltage minimum
• Actuator mechanism: Slide (Standard) type
• Mounting configuration: Through hole, right angle orientation
• Pitch spacing: 0.100" (2.54mm)
• Contact system: Beryllium copper with gold finish
• Body material: Polyphenylene Sulfide (PPS)

The SPA06AB meets all substitution criteria. Both components share identical electrical specifications, actuator design, mounting configuration, and material composition. Differences in product status, operating temperature range, physical dimensions, and RoHS compliance do not affect functional interchangeability in applications designed for the SP06AB.

Parameter Comparison

Engineering Selection Recommendations

The SPA06AB is the direct substitute for the SP06AB. Both components are electrically and mechanically equivalent across all functional parameters. The SPA06AB is classified as active product status, ensuring continued availability and supply chain support compared to the obsolete SP06AB.

The SPA06AB carries ROHS3 compliance certification, whereas the SP06AB is RoHS non-compliant. For applications subject to RoHS regulatory requirements, the SPA06AB satisfies compliance obligations. For legacy systems or applications without RoHS mandates, both parts remain functionally interchangeable.

Both components maintain identical REACH and ECCN classifications (REACH Unaffected, EAR99), confirming equivalent regulatory standing for export and supply chain purposes.

Frequently Asked Questions (FAQ)

Q: Can the SPA06AB directly replace the SP06AB in existing designs?

A: Yes. The SPA06AB is functionally equivalent to the SP06AB across all electrical ratings, actuator design, mounting configuration, and material specifications. Direct substitution is supported without circuit or layout modifications.

Q: What are the differences between SP06AB and SPA06AB?

A: The primary differences are product status (SP06AB is obsolete; SPA06AB is active), RoHS compliance (SP06AB is non-compliant; SPA06AB is ROHS3 compliant), operating temperature range (SP06AB: -20°C to 85°C; SPA06AB: -30°C to 60°C), and physical length (SP06AB: 0.698"; SPA06AB: 0.742"). Electrical and mechanical specifications are identical.

Q: Does the SPA06AB require different PCB footprint or layout considerations?

A: No. Both components share identical pitch spacing (0.100" / 2.54mm), mounting type (through hole, right angle), and height above board (0.169" / 4.30mm). PCB layouts designed for the SP06AB accommodate the SPA06AB without modification.

Q: Are there packaging differences between these parts?

A: Yes. The SP06AB is supplied in standard packaging, while the SPA06AB is supplied in tube packaging. This difference affects handling and storage but does not impact component functionality or performance.

Q: Which part should be selected for new designs?

A: The SPA06AB should be selected for new designs. It is active product status with ROHS3 compliance, ensuring long-term availability and regulatory alignment with current manufacturing standards.
