SMS-110-01-S-S Equivalent & Substitute Parts

Part Overview

The SMS-110-01-S-S is a 10-position receptacle connector manufactured by Samtec Inc., designed for board-to-board applications with 0.050" (1.27mm) pitch mating. This connector features through-hole solder termination, gold-plated mating contacts, and push-pull fastening. The part is currently active in production with 886 units in stock. Equivalent parts are identified when applications require alternative sourcing, inventory availability, or specific compliance certifications while maintaining functional compatibility within the defined electrical and mechanical parameters.

Substiute Parts

SMS-110-01-S-S

Samtec Inc.In Stock: 899SMS-110-01-S-S Datasheet

Current PartRFQ

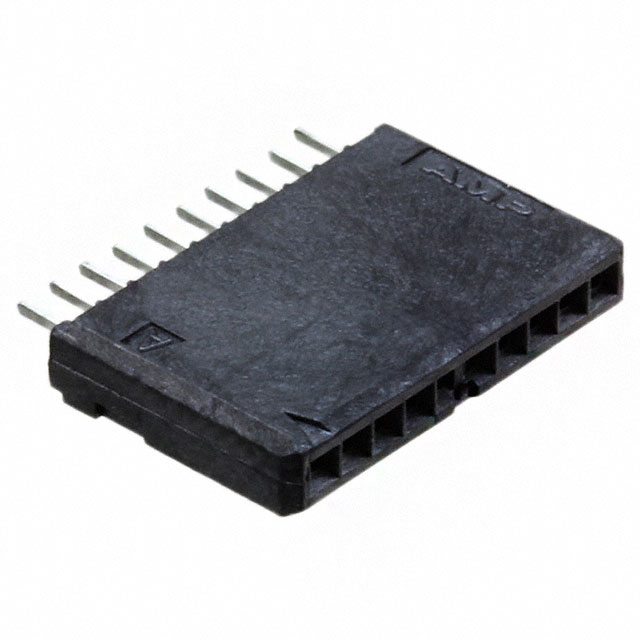

5-104192-2

TE Connectivity AMP ConnectorsIn Stock: 26335-104192-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part 5-104192-2 (TE Connectivity AMP Connectors) qualifies as an equivalent based on the following critical parameters:

• Connector Type: Both are receptacles with identical 10-position configuration
• Pitch - Mating: Both maintain 0.050" (1.27mm) pitch, ensuring mechanical and electrical compatibility
• Mounting Type: Both use through-hole solder termination
• Style: Both are board-to-board connectors
• Fastening Type: Both employ push-pull fastening mechanisms
• Contact Finish - Mating: Both feature gold-plated mating contacts
• Insulation Color: Both have black insulation bodies
• Number of Rows: Both are single-row configurations

Substitution is valid when these core parameters align, allowing direct replacement in applications where the connector footprint and mating interface are identical.

Parameter Comparison

Engineering Selection Recommendations

Both connectors are active products with RoHS compliance certifications. The SMS-110-01-S-S supports higher current ratings (5A per contact) and operates across a wider temperature range (-55°C to 125°C). The 5-104192-2 provides higher inventory availability (2607 units) and is rated for 30VAC applications with a lower operating temperature floor (-65°C).

Selection between these parts should be based on application-specific requirements: choose SMS-110-01-S-S for high-current applications requiring extended temperature operation; select 5-104192-2 when inventory availability is prioritized or when operating conditions remain within its specified temperature and voltage ranges.

Frequently Asked Questions (FAQ)

Q: Can 5-104192-2 directly replace SMS-110-01-S-S in existing designs?

A: Direct replacement is mechanically and electrically feasible due to identical pitch (0.050"), connector type (receptacle), mounting method (through-hole solder), and fastening mechanism (push-pull). However, verify that application current requirements do not exceed 1A per contact and operating temperature remains within -65°C to 105°C.

Q: What are the key differences between these connectors?

A: The primary differences are current rating (SMS-110-01-S-S: 5A vs. 5-104192-2: 1A), operating temperature range (SMS-110-01-S-S: -55°C to 125°C vs. 5-104192-2: -65°C to 105°C), insulation material (SMS-110-01-S-S: LCP vs. 5-104192-2: Thermoplastic, Glass Filled), and contact material (SMS-110-01-S-S: Phosphor Bronze vs. 5-104192-2: Copper Alloy).

Q: Are both connectors RoHS compliant?

A: Yes. SMS-110-01-S-S is ROHS3 compliant, and 5-104192-2 is RoHS compliant. Both meet environmental regulatory requirements.

Q: What is the mating pitch for these connectors?

A: Both connectors maintain a 0.050" (1.27mm) mating pitch, ensuring compatibility with standard 0.050" pitch header pins and receptacles.

Q: Which connector should I select for high-current applications?

A: SMS-110-01-S-S is rated for 5A per contact and is the appropriate choice for applications requiring higher current capacity. The 5-104192-2 is limited to 1A per contact.
