SL1R01J Equivalent & Substitute Parts

Part Overview

The SL1R01J is a 10 milliohm, ±5% tolerance, 1-watt chip resistor manufactured by TE Connectivity Passive Product. This component is classified as a current sense resistor with metal foil composition, designed for precision measurement applications in electronic circuits. The part features moisture-resistant construction and is packaged in the 2615 (6538 Metric) form factor with J-Lead terminations.

The SL1R01J carries an obsolete product status. Identification of equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production requirements for systems utilizing this component.

Substiute Parts

SL1R01J

TE Connectivity Passive ProductIn Stock: 1172SL1R01J Datasheet

Current PartRFQ

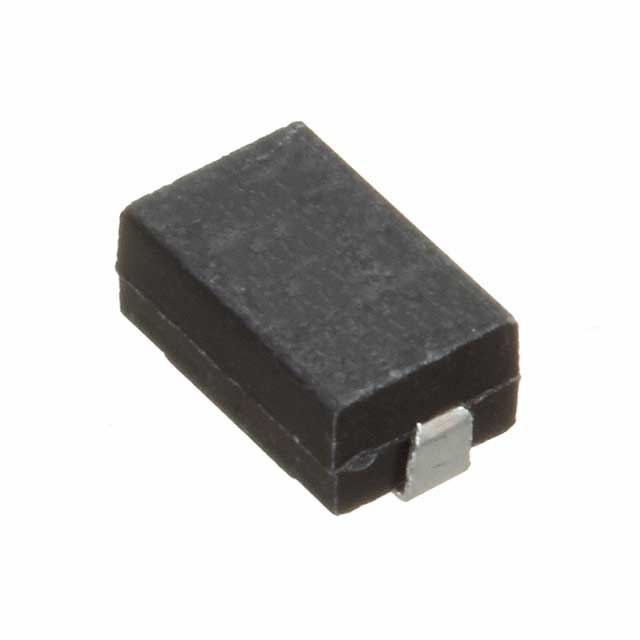

CGSSL1R01J

TE Connectivity Passive ProductIn Stock: 818CGSSL1R01J Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete SL1R01J is determined by strict equivalence across the following critical parameters:

Electrical Parameters:

• Resistance value: 10 mOhms
• Tolerance: ±5%
• Power rating: 1W
• Temperature coefficient: ±100 ppm/°C

Mechanical Parameters:

• Package type: 2615 (6538 Metric), J-Lead
• Physical dimensions: 0.255" L × 0.150" W (6.48mm × 3.81mm)
• Height seated (maximum): 0.112" (2.84mm)
• Number of terminations: 2

Material & Composition:

• Metal foil construction
• Current sense application classification
• Moisture-resistant properties

Compliance & Environmental:

• RoHS3 compliance
• Moisture Sensitivity Level 1 (Unlimited)

Substitute parts must match all parameters listed above. The CGSSL1R01J meets these criteria and is identified as the manufacturer-recommended equivalent.

Parameter Comparison

Engineering Selection Recommendations

The CGSSL1R01J is the direct equivalent substitute for the obsolete SL1R01J. Both components are manufactured by TE Connectivity Passive Product and share identical electrical, mechanical, and material specifications.

Selection Basis:

The CGSSL1R01J is recommended for new designs and production continuity because it maintains active product status with TE Connectivity, ensuring long-term availability and supply chain stability. The component carries identical RoHS3 compliance and environmental certifications as the original part.

The primary distinction between the two parts is packaging format. The SL1R01J is supplied in standard packaging, while the CGSSL1R01J is supplied in Tape & Reel (TR) format, which is standard for high-volume manufacturing operations. This packaging difference does not affect electrical or mechanical performance.

Both parts are suitable for current sense applications requiring precision measurement in the 10 milliohm range with 1-watt power dissipation capability.
