SL1-E Snap Action Switch - Equivalent & Substitute Parts

Part Overview

The Honeywell SL1-E is an active-status snap action switch featuring SPDT (Single Pole Double Throw) circuitry with on-momentary function. This panel-mount component is rated for 5A AC at 125V and incorporates a roller plunger actuator with IP67 ingress protection. The switch is designed for applications requiring reliable momentary contact switching with sealed environmental performance. Substitute parts are identified based on matching core electrical specifications, mechanical compatibility, and functional equivalence within the SPDT snap action switch category.

Substiute Parts

SL1-E

Honeywell Sensing and Productivity SolutionsIn Stock: 1042SL1-E Datasheet

Current PartRFQ

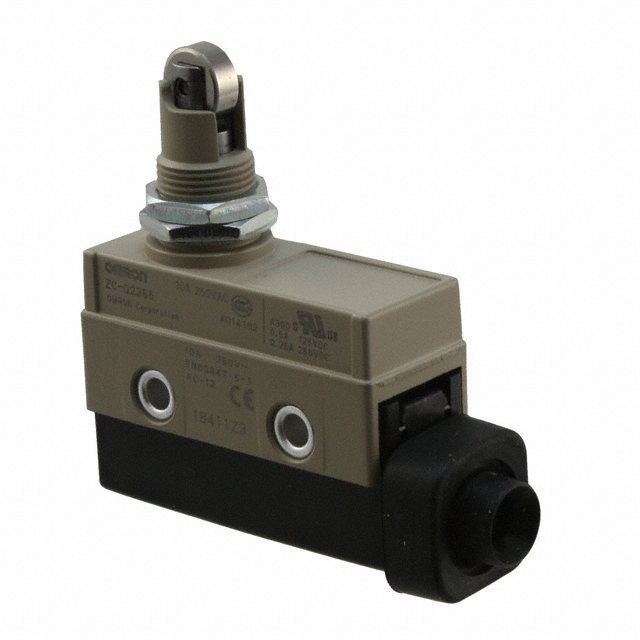

ZC-Q2255

Omron Automation and SafetyIn Stock: 875021ZC-Q2255 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The Omron ZC-Q2255 qualifies as a functional equivalent based on the following alignment of critical parameters:

Matching Core Specifications:

• Circuit configuration: Both SPDT
• Switch function: Both On-Momentary
• Actuator type: Both Roller Plunger
• Mounting type: Both Panel Mount
• Termination style: Both Screw Terminal
• Ingress protection: Both IP67
• AC voltage rating: Both 125V
• Operating force: Both 1200gf
• Release force: Both 500gf
• Pretravel: Both 0.060" (1.5mm)
• Overtravel: Both 0.118" (3.0mm)
• RoHS compliance: Both compliant (RoHS3 exceeds RoHS requirements)
• MSL rating: Both Level 1 (Unlimited)

Current Rating Consideration: The ZC-Q2255 is rated for 10A AC, which exceeds the SL1-E specification of 5A AC. This higher rating provides additional design margin and does not create incompatibility.

Parameter Comparison

Engineering Selection Recommendations

SL1-E Selection Criteria: The Honeywell SL1-E remains the primary choice when Honeywell component standardization is required within a system design or when existing supply chain relationships mandate Honeywell sourcing. The part is active-status and RoHS compliant.

ZC-Q2255 Selection Criteria: The Omron ZC-Q2255 is suitable for direct substitution in applications where:

• Higher AC current capacity (10A versus 5A) provides additional design margin
• Extended operating temperature range (-10°C to 80°C versus -10°C to 70°C) accommodates broader environmental conditions
• Omron component standardization aligns with system architecture
• ROHS3 compliance exceeds baseline RoHS requirements
• Documented electrical life (500,000 cycles) and mechanical life (10,000,000 cycles) specifications are available

Both parts share identical mechanical interfaces, electrical circuit topology, and environmental sealing characteristics. Selection between these parts depends on supply availability, cost considerations, and manufacturer standardization requirements rather than functional incompatibility.

Frequently Asked Questions (FAQ)

Q: Can the ZC-Q2255 directly replace the SL1-E in existing applications?

A: Yes. Both switches share identical SPDT circuit configuration, on-momentary function, roller plunger actuation, panel mount installation, screw terminal connections, and IP67 sealing. Operating force, release force, pretravel, and overtravel specifications are identical. The ZC-Q2255 exceeds the SL1-E in current rating (10A versus 5A) and operating temperature range (-10°C to 80°C versus -10°C to 70°C), creating no functional incompatibility.

Q: What are the key electrical differences between these parts?

A: The primary electrical difference is current capacity. The SL1-E is rated for 5A AC at 125V. The ZC-Q2255 is rated for 10A AC at 125V and additionally supports 6A DC at 30V. Both operate at identical voltage levels. The higher current rating of the ZC-Q2255 does not create incompatibility with 5A applications.

Q: Are the mechanical interfaces identical?

A: Yes. Both switches feature roller plunger actuators with identical operating force (1200gf), release force (500gf), pretravel (0.060"), and overtravel (0.118"). Panel mount configuration and screw terminal termination are identical. Physical installation and wiring procedures are equivalent.

Q: What is the significance of the operating temperature range difference?

A: The SL1-E operates from -10°C to 70°C. The ZC-Q2255 extends the upper limit to 80°C. For applications operating within the SL1-E range, this difference is not relevant. For applications requiring operation above 70°C, the ZC-Q2255 provides extended capability.

Q: Are both parts RoHS compliant?

A: Yes. The SL1-E is RoHS Compliant. The ZC-Q2255 is ROHS3 Compliant, which represents a more recent revision of the RoHS standard and exceeds baseline RoHS requirements. Both parts meet hazardous substance restriction requirements.

Q: What packaging differences exist?

A: The SL1-E is supplied in standard packaging. The ZC-Q2255 is supplied in bulk packaging. Packaging format does not affect functional equivalence or electrical performance.

Q: How do the electrical life and mechanical life specifications compare?

A: The SL1-E specifications do not include documented electrical or mechanical life values. The ZC-Q2255 specifies 500,000 electrical cycles and 10,000,000 mechanical cycles. These documented specifications for the ZC-Q2255 provide quantified reliability data for design validation purposes.
