SL-112-T-31 Equivalent & Substitute Parts

Part Overview

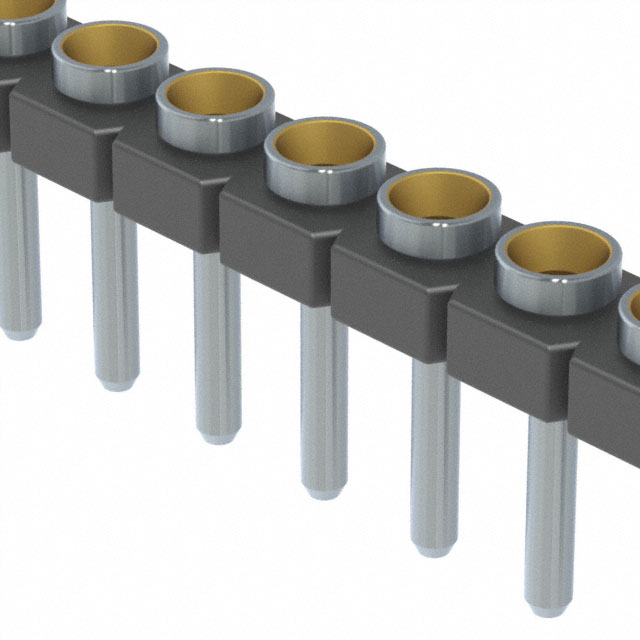

The SL-112-T-31 is a 12-position receptacle connector manufactured by Samtec Inc., designed for board-to-board applications with 0.100" (2.54mm) pitch through-hole mounting. This connector features gold-plated female socket contacts and is currently in active production status. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector series, ensuring functional interchangeability in applications where the original part number may be unavailable or inventory constraints require alternative sourcing.

Substiute Parts

SL-112-T-31

Samtec Inc.In Stock: 736SL-112-T-31 Datasheet

Current PartRFQ

SL-112-T-39

Samtec Inc.In Stock: 1853SL-112-T-39 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SL-112-T-31 is determined by strict equivalence across the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (12)
• Pitch specification (0.100" / 2.54mm)
• Mounting method (Through Hole)
• Termination type (Solder)
• Contact finish and thickness (Gold, 30.0µin)
• Insulation material (Liquid Crystal Polymer)
• Operating temperature range (-55°C ~ 125°C)
• Series designation (SL)
• Compliance certifications (ROHS3)

Parts meeting all these criteria are classified as direct substitutes within the SL series connector family.

Parameter Comparison

Engineering Selection Recommendations

Both the SL-112-T-31 and SL-112-T-39 maintain active product status with identical electrical and mechanical specifications. Selection between these parts is based on inventory availability and supply chain considerations. The SL-112-T-39 carries additional REACH Affected designation in its compliance profile. Both parts are ROHS3 compliant and carry MSL 1 rating, indicating no moisture sensitivity restrictions during storage and handling. The identical operating temperature range, contact materials, and termination specifications ensure functional equivalence in board-to-board connector applications.

Frequently Asked Questions (FAQ)

Q: Are SL-112-T-31 and SL-112-T-39 electrically interchangeable?

A: Yes. Both connectors maintain identical electrical specifications including contact material (Beryllium Copper), contact finish (Gold, 30.0µin thickness), and operating temperature range (-55°C ~ 125°C).

Q: What are the mechanical compatibility requirements?

A: Both parts share identical mechanical specifications: 12 positions, 0.100" (2.54mm) pitch, single-row configuration, through-hole mounting, and 0.050" (1.27mm) insulation height. They are mechanically interchangeable in PCB layouts designed for either part number.

Q: Are there compliance differences between these parts?

A: Both parts are ROHS3 compliant with EAR99 ECCN classification and HTSUS code 8536.69.4040. The SL-112-T-39 carries REACH Affected status, which may impact supply chain documentation in certain regulatory jurisdictions.

Q: What is the moisture sensitivity level for these connectors?

A: Both parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity restrictions. Standard handling and storage practices apply without special environmental controls.

Q: Can these connectors be used interchangeably in existing designs?

A: Yes, within the constraints of the specified electrical and mechanical parameters. PCB footprints, mating connector specifications, and application requirements must remain consistent with the original design parameters.
