SL-112-T-30 Equivalent & Substitute Parts

Part Overview

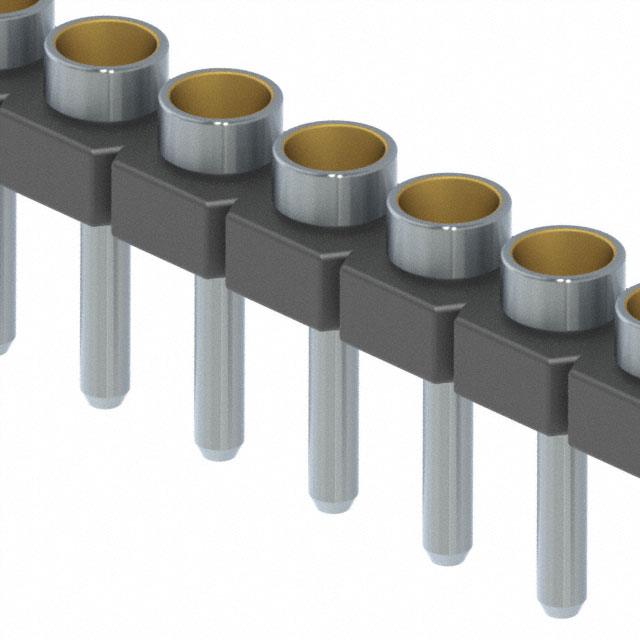

The SL-112-T-30 is a 12-position receptacle connector manufactured by Samtec Inc., designed for board-to-board applications with 0.100" (2.54mm) pitch through-hole mounting. This connector features gold-plated circular beryllium copper contacts with push-pull fastening and operates across -55°C to 125°C. The part is currently active in production with ROHS3 compliance and MSL 1 rating. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector series, ensuring functional interchangeability in circuit designs.

Substiute Parts

SL-112-T-30

Samtec Inc.In Stock: 1034SL-112-T-30 Datasheet

Current PartRFQ

SL-112-T-39

Samtec Inc.In Stock: 1853SL-112-T-39 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SL-112-T-30 is determined by strict equivalence across the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (12)
• Pitch specification (0.100" / 2.54mm)
• Mounting method (Through Hole)
• Termination type (Solder)
• Fastening mechanism (Push-Pull)
• Contact finish and thickness (Gold, 30.0µin)
• Operating temperature range (-55°C ~ 125°C)
• Insulation material (Liquid Crystal Polymer)
• Contact material (Beryllium Copper)

The SL-112-T-39 meets all these criteria, maintaining identical electrical and mechanical specifications while belonging to the same SL series base product family (SL-112).

Parameter Comparison

Engineering Selection Recommendations

Both the SL-112-T-30 and SL-112-T-39 are active production parts with identical compliance certifications. The SL-112-T-39 carries additional REACH Affected status documentation. Selection between these parts should be based on inventory availability and supply chain requirements, as all electrical and mechanical parameters are equivalent. The SL-112-T-39 currently maintains higher inventory levels (1826 pcs vs. 951 pcs), which may influence procurement decisions for high-volume applications.

Frequently Asked Questions (FAQ)

Q: Are the SL-112-T-30 and SL-112-T-39 electrically interchangeable?

A: Yes. Both connectors maintain identical contact materials (beryllium copper), finish specifications (gold, 30.0µin), and operating temperature ranges (-55°C ~ 125°C). They are electrically equivalent for board-to-board applications.

Q: What determines substitution eligibility for this connector family?

A: Substitution is valid when the following parameters match: connector type (receptacle), contact type (female socket), position count (12), pitch (0.100"), mounting method (through hole), termination (solder), fastening (push-pull), contact finish (gold, 30.0µin), operating temperature (-55°C ~ 125°C), insulation material (LCP), and contact material (beryllium copper).

Q: Can I use the SL-112-T-39 as a direct replacement in existing designs?

A: Yes. The SL-112-T-39 is a direct substitute with no design modifications required. All mechanical dimensions, electrical characteristics, and compliance certifications are identical to the SL-112-T-30.

Q: What is the difference between the -T-30 and -T-39 designations?

A: The suffix designations indicate internal Samtec product variants within the SL-112 base series. Both variants maintain equivalent specifications for the parameters provided in this reference.

Q: Are both parts RoHS compliant?

A: Yes. Both the SL-112-T-30 and SL-112-T-39 are ROHS3 compliant with MSL 1 (unlimited) moisture sensitivity rating.
