SJS860910 Equivalent & Substitute Parts

Part Overview

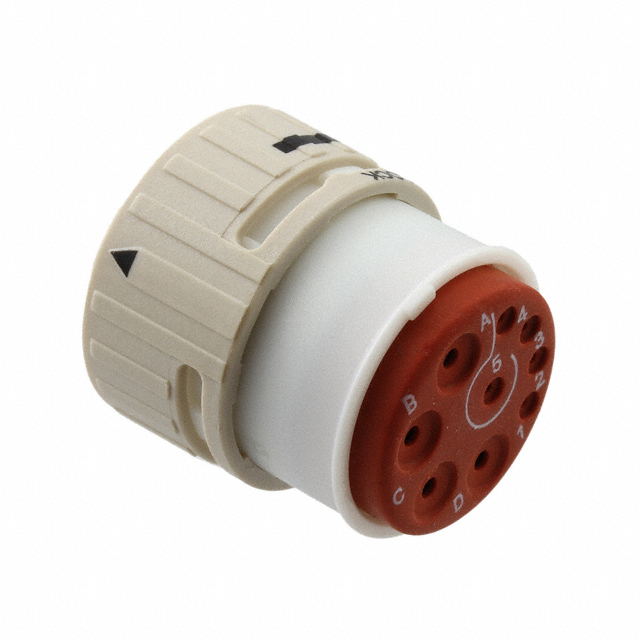

The Amphenol PCD SJS860910 is a 9-position circular connector plug housing designed for female socket pairs. This active-status component features free-hanging (in-line) mounting with bayonet lock fastening and is rated for IP67 ingress protection. Alternative part sourcing becomes necessary to manage inventory continuity, support redundant supply chains, or accommodate specific procurement requirements while maintaining electrical and mechanical compatibility.

Substiute Parts

SJS860910

Amphenol PCDIn Stock: 1207SJS860910 Datasheet

Current PartRFQ

1170060000

WeidmüllerIn Stock: 11851170060000 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution logic for the SJS860910 is determined by the following critical parameters:

• Connector architecture: 9-position configuration with crimp contact type
• Form factor: Plug housing design for female socket pairing
• Interface specification: Shell size 10 with bayonet lock fastening
• Environmental rating: IP67 dust-tight and waterproof protection
• Material compliance: UL94 V-0 flammability and ROHS3 certification
• Thermal range: Operating temperature span of -65°C to 155°C

The identified substitute part, Weidmüller 1170060000, represents a functionally distinct component class (insert assembly rather than plug housing) that operates under different mechanical and electrical constraints. Direct mechanical and functional interchangeability with the SJS860910 cannot be established based on the provided parameter set, as the substitute is an insert-only component requiring separate shell selection.

Parameter Comparison

Engineering Selection Recommendations

The SJS860910 meets ROHS3 and REACH compliance requirements, positioning it as a primary specification for applications with environmental regulatory constraints. The Weidmüller 1170060000 qualifies under RoHS and REACH standards and maintains UL94 V-0 flammability certification. However, the thermal operating range differential (-40°C to 125°C versus -65°C to 155°C) reflects material composition and design differences that may affect component selection in extreme-temperature applications.

The architectural distinction—plug housing versus insert assembly—indicates these components serve different integration contexts. The SJS860910 provides a complete, ready-to-assemble plug housing, while the 1170060000 requires separate shell procurement and integration. Selection between these components depends on system architecture, existing shell inventory, and assembly workflow requirements.

Frequently Asked Questions (FAQ)

Q: Can the Weidmüller 1170060000 directly replace the Amphenol PCD SJS860910?

A: The Weidmüller part is an insert-only assembly, while the SJS860910 is a complete plug housing. Direct mechanical substitution is not possible without procuring a compatible shell for the Weidmüller insert. These components address different assembly points in a connector system.

Q: What is the primary distinction between these components?

A: The SJS860910 is a finished plug housing ready for crimp contact insertion and deployment. The 1170060000 is a contact insert assembly that requires a separate shell housing to function as a complete connector assembly.

Q: Do both parts support 9-position configurations with crimp contacts?

A: Yes. Both the SJS860910 and 1170060000 support 9-position designs with crimp-type contacts. This commonality enables them to serve equivalent functional roles within connector assemblies, provided appropriate housing components are paired with the insert.

Q: How do the operating temperature ranges differ?

A: The SJS860910 operates across -65°C to 155°C, while the Weidmüller 1170060000 operates across -40°C to 125°C. Applications requiring extreme-temperature operation should reference the narrower thermal window of the substitute part.

Q: Are both parts RoHS and REACH compliant?

A: Yes. The SJS860910 holds ROHS3 and REACH Unaffected status. The 1170060000 holds RoHS Compliant and REACH Unaffected status. Both meet environmental regulatory requirements for equivalent applications.

Q: What does "MSL 1 (Unlimited)" mean?

A: Both parts carry Moisture Sensitivity Level 1 classification, indicating no special moisture-control storage or handling requirements during assembly and deployment.
