SEH-003T-P0.6L Equivalent & Substitute Parts

Part Overview

The SEH-003T-P0.6L is a socket contact connector manufactured by JST Sales America Inc., designed for crimp termination on 28-32 AWG wire gauges. This component is part of the EH series rectangular connector family and maintains Active product status with full RoHS compliance. Socket contacts are essential interconnect components in applications requiring reliable electrical connections with standardized crimp termination methods. Substitute parts may be required due to inventory constraints, regional availability, or specific packaging format requirements while maintaining equivalent electrical and mechanical performance.

Substiute Parts

SEH-003T-P0.6L

JST Sales America Inc.In Stock: 20377SEH-003T-P0.6L Datasheet

Current PartRFQ

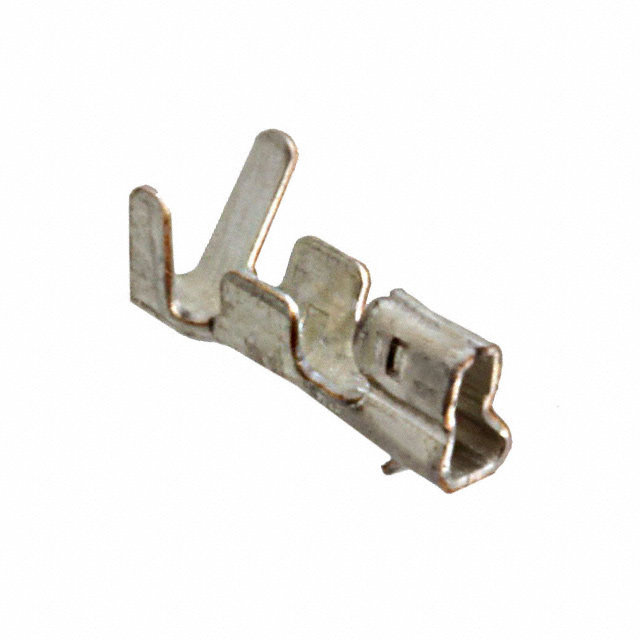

440134-1

TE Connectivity AMP ConnectorsIn Stock: 26756440134-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SEH-003T-P0.6L is determined by the following critical parameters:

• Contact Type: Socket configuration required
• Termination Method: Crimp termination only
• Contact Finish: Tin plating
• Wire Gauge Compatibility: Acceptable range must overlap with or encompass 28-32 AWG
• Regulatory Compliance: RoHS compliance required
• MSL Rating: MSL 1 (Unlimited) required

The substitute part 440134-1 (TE Connectivity AMP Connectors) qualifies as an equivalent based on matching socket contact type, crimp termination, tin finish, and RoHS compliance. Wire gauge specification (22-28 AWG) provides partial overlap with the main part specification (28-32 AWG), with 28 AWG as the common intersection point. Both parts maintain MSL 1 rating and Active product status.

Parameter Comparison

Engineering Selection Recommendations

Both parts maintain Active product status and full regulatory compliance (RoHS and ROHS3). Selection between SEH-003T-P0.6L and 440134-1 should be based on:

Wire Gauge Application: The SEH-003T-P0.6L supports 28-32 AWG wire gauges, while 440134-1 supports 22-28 AWG. For applications using 28 AWG wire, both parts are functionally equivalent. For applications requiring 29-32 AWG wire, only SEH-003T-P0.6L is suitable.

Packaging Format: SEH-003T-P0.6L is supplied in Tape & Reel (TR) format, while 440134-1 is supplied in Cut Tape (CT) format. Packaging selection depends on assembly equipment compatibility and procurement volume requirements.

Manufacturer Compliance: Both manufacturers provide equivalent regulatory certifications. TE Connectivity's ROHS3 compliance exceeds the RoHS Compliant status of JST, indicating enhanced environmental standards adherence.

Frequently Asked Questions (FAQ)

Q: Can 440134-1 be used as a direct replacement for SEH-003T-P0.6L in all applications?

A: Substitution is valid only for applications using 28 AWG wire gauge. Applications requiring 29-32 AWG wire must use SEH-003T-P0.6L, as 440134-1 does not support wire gauges above 28 AWG.

Q: What is the significance of the wire gauge overlap at 28 AWG?

A: The 28 AWG specification is the common intersection between both parts' wire gauge ranges. At this gauge, both socket contacts are designed to accept and crimp 28 AWG wire with equivalent mechanical and electrical performance.

Q: Does packaging format affect electrical performance?

A: No. Tape & Reel (TR) and Cut Tape (CT) packaging formats are logistics and assembly considerations only. Both formats contain identical socket contact components with equivalent electrical and mechanical specifications.

Q: Are both parts suitable for moisture-sensitive applications?

A: Yes. Both parts carry MSL 1 (Unlimited) rating, indicating no moisture sensitivity limitations. Storage and handling requirements are equivalent for both components.

Q: What compliance certifications apply to both parts?

A: Both parts comply with RoHS standards and carry EAR99 ECCN classification. TE Connectivity's 440134-1 additionally specifies ROHS3 compliance. Both parts are classified under HTSUS code 8536.90.4000.
