SEAF-20-05.0-S-10-2-A-PP-K-TR Equivalent & Substitute Parts

Part Overview

The SEAF-20-05.0-S-10-2-A-PP-K-TR is a 200 Position High Density Array rectangular connector manufactured by Samtec Inc. as part of the SEARAY™ SEAF series. This female surface mount connector features gold-plated contacts and is designed for high-density interconnect applications requiring reliable board-to-board or board-to-cable connections. The part is Active status and ROHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector family, enabling design flexibility and supply chain optimization.

Substiute Parts

SEAF-20-05.0-S-10-2-A-PP-K-TR

Samtec Inc.In Stock: 834SEAF-20-05.0-S-10-2-A-PP-K-TR Datasheet

Current PartRFQ

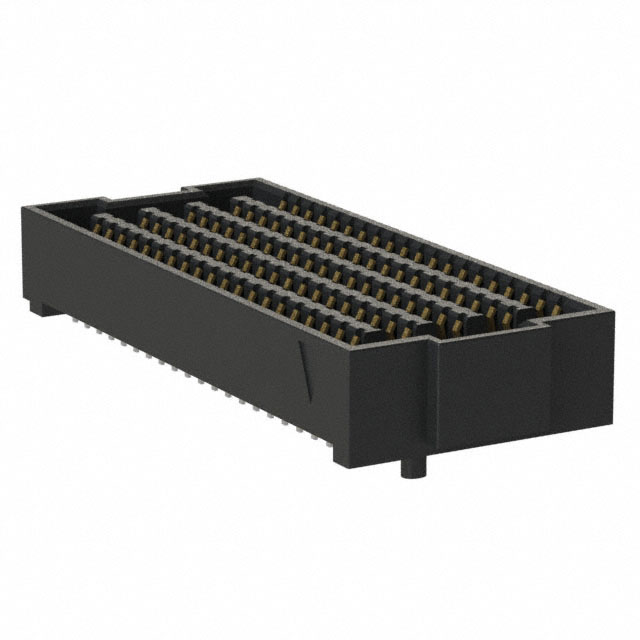

SEAF-20-05.0-S-10-1-A-K-TR

Samtec Inc.In Stock: 1164SEAF-20-05.0-S-10-1-A-K-TR Datasheet

Parametric EquivalentRFQ

SEAF-20-05.0-S-10-2-A-K-TR

Samtec Inc.In Stock: 799SEAF-20-05.0-S-10-2-A-K-TR Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the SEAF-20-05.0-S-10-2-A-PP-K-TR are identified based on strict equivalence of the following critical parameters:

• Number of Positions: 200
• Pitch: 0.050" (1.27mm)
• Number of Rows: 10
• Connector Type: High Density Array, Female
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Contact Finish Thickness: 30.0µin (0.76µm)
• Height Above Board: 0.199" (5.05mm)
• Mated Stacking Heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
• Features: Board Guide, Pick and Place
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

The identified substitutes differ only in packaging configuration (Tape & Reel without polybag designation) and REACH compliance status, which do not affect electrical or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

All three parts maintain identical electrical and mechanical specifications for the 200-position, 0.050" pitch high-density array connector configuration. Selection between SEAF-20-05.0-S-10-2-A-PP-K-TR, SEAF-20-05.0-S-10-1-A-K-TR, and SEAF-20-05.0-S-10-2-A-K-TR is determined by supply chain availability and regulatory compliance requirements.

SEAF-20-05.0-S-10-2-A-PP-K-TR is suitable for applications requiring polybag packaging in Tape & Reel format. SEAF-20-05.0-S-10-2-A-K-TR is appropriate for designs where REACH Unaffected status is required. SEAF-20-05.0-S-10-1-A-K-TR is applicable for applications where REACH Affected status is acceptable. All parts are ROHS3 compliant and carry Active product status.

Frequently Asked Questions (FAQ)

Q: Are these parts electrically interchangeable? A: Yes. All three parts share identical electrical specifications including 200 positions, 0.050" pitch, gold contact finish at 30.0µin thickness, and surface mount configuration.

Q: What is the difference between SEAF-20-05.0-S-10-2-A-PP-K-TR and SEAF-20-05.0-S-10-2-A-K-TR? A: The primary difference is packaging designation. SEAF-20-05.0-S-10-2-A-PP-K-TR includes polybag packaging in Tape & Reel format. SEAF-20-05.0-S-10-2-A-K-TR does not include polybag designation. Both maintain identical mechanical and electrical parameters. REACH compliance status differs: SEAF-20-05.0-S-10-2-A-K-TR is REACH Unaffected while SEAF-20-05.0-S-10-2-A-PP-K-TR status is not specified.

Q: Can SEAF-20-05.0-S-10-1-A-K-TR be used as a direct replacement? A: Yes. SEAF-20-05.0-S-10-1-A-K-TR is mechanically and electrically equivalent. The part number variation reflects packaging configuration differences only. REACH Affected status applies to this variant.

Q: Are all parts ROHS3 compliant? A: Yes. All three parts are ROHS3 compliant with Moisture Sensitivity Level 1 (Unlimited).

Q: Do these connectors support the same mated stacking heights? A: Yes. All parts support identical mated stacking heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, and 18mm.

Q: What is the height above board for these connectors? A: All parts have a height above board of 0.199" (5.05mm).
