SCX114-9R6 Equivalent & Substitute Parts

Part Overview

The SCX114-9R6 is an unshielded 2-coil inductor array manufactured by Signal Transformer, designed for surface mount applications. This component provides dual inductance configurations: 38.48 µH in series connection and 9.6 µH in parallel connection, with a maximum DC resistance of 57 mOhm in parallel mode and 227 mOhm in series mode. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing design support and production continuity.

Substiute Parts

SCX114-9R6

Signal TransformerIn Stock: 1157SCX114-9R6 Datasheet

Current PartRFQ

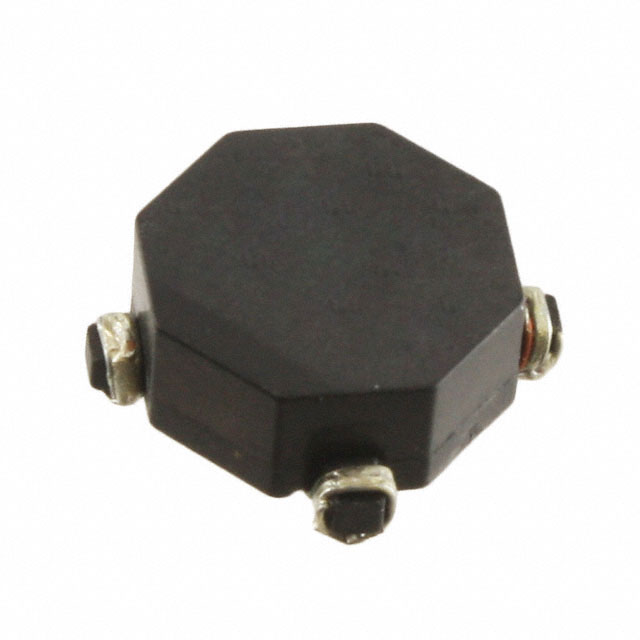

CTX10-1P-R

Eaton - Electronics DivisionIn Stock: 1579CTX10-1P-R Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the SCX114-9R6 is determined by the following critical electrical and mechanical parameters:

• Inductance values: Parallel inductance must be 9.6 µH ±20% and series inductance must be 38.48 µH ±20%
• Current ratings: Parallel current rating must support 1.7 A and series current rating must support 850 mA
• DC resistance: Parallel DCR must not exceed 57 mOhm and series DCR must not exceed 227 mOhm
• Coil configuration: Exactly 2 coils required
• Shielding: Unshielded construction
• Mounting: Surface mount technology
• Package dimensions: Physical footprint compatibility within nonstandard package specifications
• Compliance: ROHS3 compliance and MSL Level 1 rating

The CTX10-1P-R from Eaton - Electronics Division meets all specified electrical and mechanical parameters within the defined tolerances and compliance requirements.

Parameter Comparison

Engineering Selection Recommendations

The CTX10-1P-R is the qualified substitute for the SCX114-9R6 based on the following engineering criteria:

Electrical Equivalence: All critical electrical parameters match or fall within specified tolerances. The parallel inductance of 9.62 µH is within the ±20% tolerance band of the 9.6 µH specification. Series inductance, current ratings, and DC resistance values are identical.

Mechanical Compatibility: Both components are surface mount, nonstandard package inductors with compatible footprints. The CTX10-1P-R has a slightly smaller footprint (0.450" x 0.450" versus 0.461" x 0.461") and lower profile (0.165" versus 0.217"), which provides layout flexibility without compromising performance.

Compliance and Availability: The CTX10-1P-R maintains ROHS3 compliance and MSL Level 1 rating, ensuring regulatory alignment. The substitute is in active production status, providing supply chain continuity and long-term availability compared to the obsolete SCX114-9R6.

Packaging: The CTX10-1P-R is supplied in Tape & Reel (TR) format, supporting automated assembly processes.

Frequently Asked Questions (FAQ)

Q: Can the CTX10-1P-R be used as a direct replacement for the SCX114-9R6?

A: Yes. The CTX10-1P-R meets all electrical specifications and mechanical requirements. The inductance values, current ratings, and DC resistance parameters are equivalent within the defined tolerances. Both components are unshielded, 2-coil surface mount inductors with identical functional characteristics.

Q: What are the differences between these two parts?

A: The primary differences are manufacturer, product status, and physical dimensions. The CTX10-1P-R is manufactured by Eaton and is in active production, whereas the SCX114-9R6 is obsolete. The CTX10-1P-R has a slightly smaller footprint and lower profile, which may provide layout advantages in space-constrained applications.

Q: Are there any compatibility concerns with the smaller footprint of the CTX10-1P-R?

A: No. The CTX10-1P-R footprint (0.450" x 0.450") is smaller than the SCX114-9R6 (0.461" x 0.461"), making it compatible with existing PCB layouts designed for the original part. The lower height (0.165" versus 0.217") also provides clearance benefits.

Q: Do both parts have the same inductance tolerance?

A: Yes. Both the SCX114-9R6 and CTX10-1P-R have ±20% inductance tolerance. The parallel inductance values (9.6 µH and 9.62 µH respectively) fall within this tolerance band and are functionally equivalent.

Q: What is the operating temperature range for the CTX10-1P-R?

A: The CTX10-1P-R operates across -40°C to 85°C. This temperature range supports standard industrial and commercial applications.

Q: Are both parts RoHS compliant?

A: Yes. Both the SCX114-9R6 and CTX10-1P-R are ROHS3 compliant and have MSL Level 1 rating, meeting current environmental and reliability standards.
