SCVF10400 Terminal Block Plug - Equivalent & Substitute Parts

Part Overview

The SCVF10400 is a 10-position terminal block plug manufactured by Amphenol PCD, featuring female sockets with 0.150" (3.81mm) pitch spacing and 180° free-hanging in-line mounting. This component is designed for applications requiring screwless spring cage termination with rated capacity of 12 A at 300 V (UL). The part maintains active product status and is RoHS compliant with MSL 1 rating, indicating broad availability and compliance with current environmental standards. Equivalent substitutes are identified based on matching core electrical and mechanical parameters that define functional interchangeability within terminal block plug applications.

Key Parameters

Parameter	SCVF10400 Specification
Number of Positions	10
Pitch	0.150" (3.81mm)
Type	Plug, Female Sockets
Plug Wire Entry	180°
Mounting Type	Free Hanging (In-Line)
Termination Style	Screwless - Spring Cage, Tension Clamp
Current Rating (UL)	12 A
Voltage Rating (UL)	300 V
Wire Gauge Range	16-28 AWG
Operating Temperature	105°C
Housing Material	Polyamide (PA66), Nylon 6/6
Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the SCVF10400 is determined by strict alignment of the following core parameters:

Position Count & Pitch: Substitute must provide 10 positions at 0.150" (3.81mm) spacing to ensure mechanical and electrical compatibility with mating connectors
Connector Type & Orientation: Substitute must be a plug with female sockets and 180° wire entry to match installation geometry
Mounting Configuration: Substitute must support free-hanging in-line mounting without requiring additional hardware
Electrical Ratings: Substitute current and voltage ratings must meet or exceed UL 12 A / 300 V requirements
Wire Gauge Compatibility: Substitute must accommodate 16-28 AWG wire range or equivalent metric specification
Material & Compliance: Substitute must maintain UL94 V-0 flammability rating and RoHS compliance status

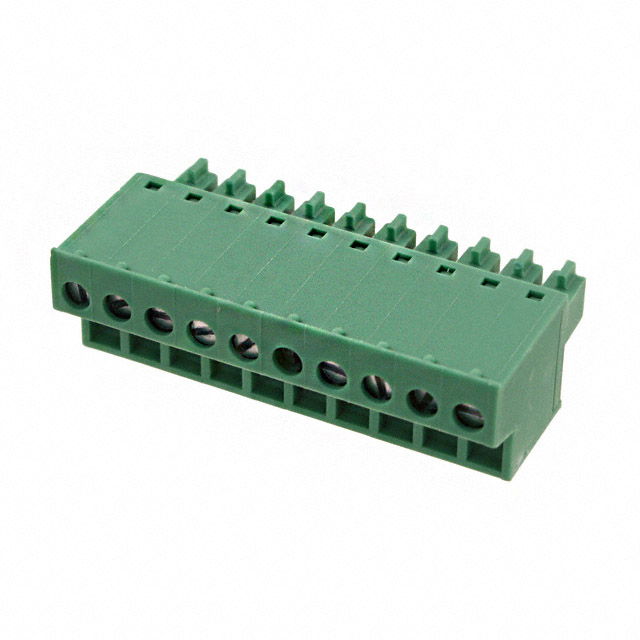

The Phoenix Contact 1850741 qualifies as a functional substitute based on matching position count, pitch, connector type, wire entry angle, and mounting method. Differences in termination style (screw-based vs. screwless) and current rating (8 A vs. 12 A) represent trade-offs that must be evaluated against specific application requirements.

Parameter Comparison

Parameter	SCVF10400 (Amphenol PCD)	1850741 (Phoenix Contact)	Compatibility Notes
Number of Positions	10	10	Matched
Pitch	0.150" (3.81mm)	0.150" (3.81mm)	Matched
Type	Plug, Female Sockets	Plug, Female Sockets	Matched
Plug Wire Entry	180°	180°	Matched
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Matched
Termination Style	Screwless - Spring Cage, Tension Clamp	Screw - Pressure Clip	Different - affects installation method
Current Rating (UL)	12 A	8 A	1850741 rated lower - verify application current draw
Voltage Rating (UL)	300 V	300 V	Matched
Wire Gauge Range	16-28 AWG	16-30 AWG	1850741 accepts finer wire (30 AWG)
Housing Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA), Nylon	Similar polymer base
Flammability Rating	UL94 V-0	UL94 V-0	Matched
RoHS Status	RoHS Compliant	ROHS3 Compliant	Both compliant
Insulation Height	0.480" (12.20mm)	0.484" (12.30mm)	Negligible difference

Engineering Selection Recommendations

SCVF10400 (Primary Selection): Maintain specification when application current demand reaches or approaches 12 A, or when screwless spring cage termination is required for rapid assembly without tools. Active product status and RoHS compliance ensure continued availability and regulatory alignment.

1850741 (Substitute Selection): Select when application current requirement does not exceed 8 A and screw-based termination is acceptable or preferred for enhanced mechanical security. ROHS3 compliance and extended wire gauge range (16-30 AWG) provide flexibility for lower-current applications. Both parts maintain UL94 V-0 flammability rating and support identical connector geometry, ensuring mechanical interchangeability at the mating interface.

Frequently Asked Questions (FAQ)

Q: Can the 1850741 substitute for SCVF10400 in all applications?

A: Mechanical and electrical compatibility exists for applications where circuit current does not exceed 8 A. The 1850741 is rated at 8 A (UL), compared to SCVF10400 at 12 A. If your application draws current above 8 A, the SCVF10400 must be used. Both parts support identical 10-position, 3.81mm pitch geometry and 180° wire entry, ensuring connector mating compatibility.

Q: What is the difference between screwless and screw-based termination?

A: SCVF10400 uses screwless spring cage termination, allowing wire insertion without tools. The 1850741 uses screw-based pressure clip termination, requiring a screwdriver to secure wires. Both methods provide equivalent electrical contact quality; selection depends on assembly process requirements and operator preference.

Q: Are these parts interchangeable at the connector interface?

A: Yes. Both parts are 10-position plugs with 0.150" (3.81mm) pitch and 180° wire entry, ensuring mechanical and electrical compatibility with identical mating receptacles. The difference lies in wire termination method, not connector geometry.

Q: What packaging differences exist between these parts?

A: SCVF10400 is supplied in Tray packaging (879 pcs available), while 1850741 is supplied in Bulk packaging (1146 pcs available). Packaging format does not affect component function or performance.

Q: Are both parts RoHS compliant?

A: Yes. SCVF10400 is RoHS Compliant, and 1850741 is ROHS3 Compliant. Both meet current environmental regulations for restricted substance use.
