SCN-1636SC Equivalent & Substitute Parts Reference

Part Overview

The SCN-1636SC is a snap action SPDT switch manufactured by Honeywell Sensing and Productivity Solutions, designed for chassis mount applications with 15A AC and 500mA DC current capacity at 125V. This component features a lever roller actuator with screw terminal termination and is classified as obsolete. Due to its obsolete product status, equivalent substitute parts from active product lines are necessary to maintain system functionality and ensure continued component availability for new designs and field replacements.

Substiute Parts

SCN-1636SC

Honeywell Sensing and Productivity SolutionsIn Stock: 999SCN-1636SC Datasheet

Current PartRFQ

BZ-7RW82132T-S

Honeywell Sensing and Productivity SolutionsIn Stock: 1485BZ-7RW82132T-S Datasheet

SimilarRFQ

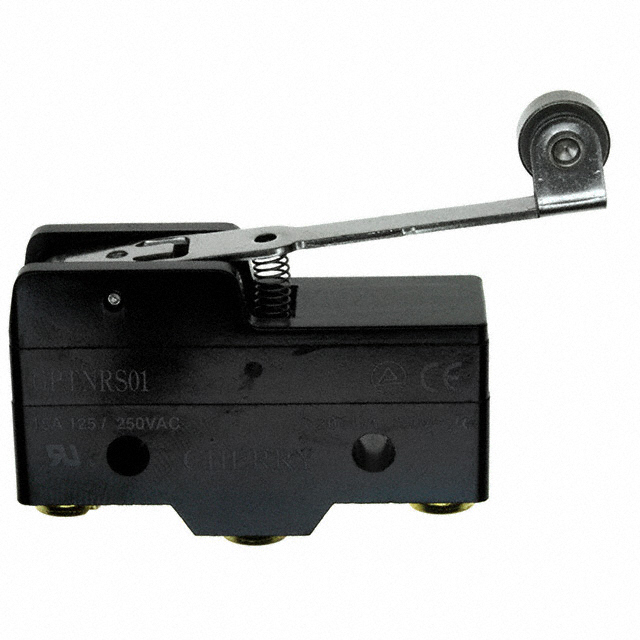

GPTCRS01

ZF ElectronicsIn Stock: 1175GPTCRS01 Datasheet

SimilarRFQ

GPTCRS11

ZF ElectronicsIn Stock: 894GPTCRS11 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SCN-1636SC is determined by the following critical parameters:

Primary Compatibility Criteria:

• Circuit configuration: SPDT
• Switch function: On-Mom
• Current rating: 15A AC minimum
• Voltage rating: 125V AC minimum
• Actuator type: Lever with roller
• Mounting type: Chassis Mount
• Termination style: Screw Terminal
• Mechanical life: 20,000,000 cycles minimum

Substitute Parts Identified:

Group 1 - Honeywell BZ Series (Direct Manufacturer Line):

• BZ-7RW82132T-S: Active product status, identical electrical ratings, same mechanical life specification, maintains full parameter compatibility with minor differential travel variation (0.090" vs 0.070").

Group 2 - ZF Electronics GP Series (Cross-Manufacturer Alternatives):

• GPTCRS01 and GPTCRS11: Active products meeting core electrical requirements (15A AC, 125V AC, SPDT, On-Mom function). Operating temperature range differs (0°C to 55°C vs -55°C to 85°C). Operating force specification differs (99gf vs 141gf). Both maintain 20,000,000 cycle mechanical life and chassis mount configuration.

Parameter Comparison

Engineering Selection Recommendations

Primary Recommendation: BZ-7RW82132T-S

The BZ-7RW82132T-S is the preferred substitute for SCN-1636SC applications. This part maintains active product status with Honeywell Sensing and Productivity Solutions, ensuring long-term availability and supply chain continuity. Electrical specifications are identical to the original component (15A AC, 500mA DC, 125V AC/DC). Mechanical life rating matches at 20,000,000 cycles. Operating temperature range (-55°C to 85°C) is identical. RoHS compliance status is maintained. The differential travel specification differs by 0.020" (0.5mm), which remains within typical mechanical tolerance ranges for snap action switch applications. Screw terminal termination and chassis mount configuration are preserved.

Secondary Recommendation: GPTCRS01 or GPTCRS11

The ZF Electronics GP series parts (GPTCRS01 and GPTCRS11) are functionally equivalent alternatives when operating temperature requirements do not extend below 0°C or above 55°C. These parts satisfy the core electrical requirements (15A AC, 125V AC, SPDT, On-Mom function) and maintain 20,000,000 cycle mechanical life. Both parts carry ROHS3 compliance certification. Operating force is reduced to 99gf compared to 141gf in the original specification. Operating position differs by 0.032" (0.8mm). These differences indicate distinct mechanical design characteristics that may affect actuator feel and response in applications sensitive to operating force parameters.

Compliance Considerations:

All substitute parts maintain RoHS compliance status. The BZ-7RW82132T-S additionally carries REACH Unaffected designation. MSL rating of 1 (Unlimited) is consistent across all options, indicating no moisture sensitivity constraints for storage or handling.

Frequently Asked Questions (FAQ)

Q: Can BZ-7RW82132T-S directly replace SCN-1636SC in existing designs?

A: Yes. The BZ-7RW82132T-S maintains identical electrical ratings (15A AC, 500mA DC, 125V AC/DC), identical operating temperature range (-55°C to 85°C), identical mechanical life (20,000,000 cycles), and identical termination style (screw terminal). Chassis mount configuration is preserved. The differential travel specification differs by 0.020" (0.5mm), which is within normal mechanical tolerance for snap action switches. No design modifications are required.

Q: What are the key differences between Honeywell BZ-7RW82132T-S and ZF Electronics GPTCRS01/GPTCRS11?

A: The primary differences are operating temperature range and operating force. The Honeywell part operates from -55°C to 85°C with 141gf operating force. The ZF Electronics parts operate from 0°C to 55°C with 99gf operating force. Both maintain 15A AC, 125V AC ratings and 20,000,000 cycle mechanical life. Operating position differs by 0.032" (0.8mm). Selection depends on application temperature requirements and actuator force sensitivity.

Q: Are GPTCRS01 and GPTCRS11 electrically identical?

A: Yes. Both ZF Electronics parts share identical electrical specifications (15A AC, 125V AC, SPDT, On-Mom), mechanical life (20,000,000 cycles), operating force (99gf), and operating temperature range (0°C to 55°C). They are functionally equivalent alternatives.

Q: Does the SCN-1636SC obsolete status affect substitute part selection?

A: Yes. The obsolete status of SCN-1636SC makes substitute parts necessary for new designs and field replacements. BZ-7RW82132T-S is the recommended substitute due to its active product status with the original manufacturer, ensuring continued availability and technical support. ZF Electronics alternatives provide additional sourcing options when Honeywell parts are unavailable.

Q: What packaging options are available for substitute parts?

A: BZ-7RW82132T-S is supplied in Bulk packaging. GPTCRS01 and GPTCRS11 are also supplied in Bulk packaging. Packaging format is consistent across all substitute options.

Q: Are there DC current rating specifications for the ZF Electronics parts?

A: DC current ratings are not specified for GPTCRS01 and GPTCRS11. These parts are rated for 15A AC at 125V AC. Applications requiring DC operation should use BZ-7RW82132T-S, which specifies 500mA DC at 125V DC.

Q: How do operating force differences affect application compatibility?

A: Operating force determines the mechanical effort required to actuate the switch. SCN-1636SC and BZ-7RW82132T-S both require 141gf operating force. GPTCRS01 and GPTCRS11 require 99gf operating force. Applications with mechanical linkages or actuators designed for 141gf operation may require adjustment if switching to ZF Electronics parts. Applications without specific force constraints can accommodate either specification.
