SCH2-Q Equivalent & Substitute Parts

Part Overview

The SCH2-Q is a terminal butt splice connector manufactured by Panduit Corp, designed for inline, individual openings crimp termination applications. This component is classified as a non-insulated 2 AWG Pan-Lug™ series splice terminal with brown coloring. The SCH2-Q carries an obsolete product status, necessitating identification of active equivalent components to maintain supply chain continuity and ensure long-term availability for new designs and field replacements.

Substiute Parts

SCH2-Q

Panduit CorpIn Stock: 1139SCH2-Q Datasheet

Current PartRFQ

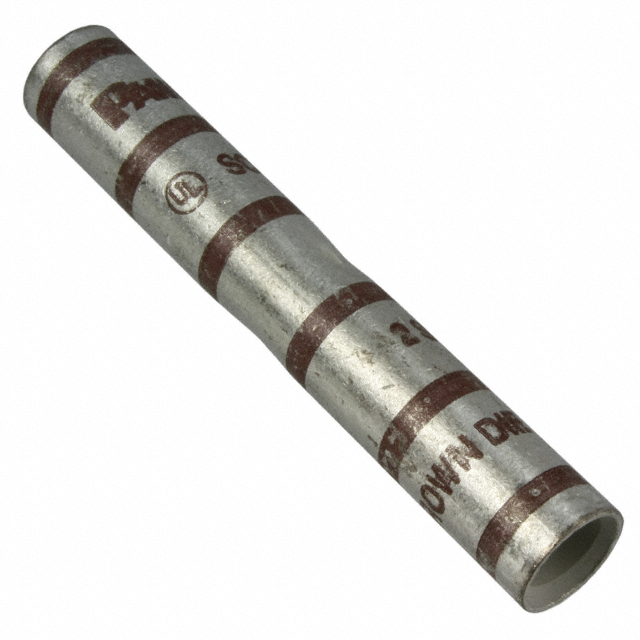

SCL2-Q

Panduit CorpIn Stock: 757SCL2-Q Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete SCH2-Q with the active SCL2-Q is based on strict equivalence across all critical electrical and mechanical parameters. Both components share identical specifications for terminal type, wire gauge, termination method, insulation classification, wire entry count, and color. The substitution is valid because the SCL2-Q maintains the same Pan-Lug™ series designation, crimp termination for 2 AWG conductors, and non-insulated butt splice configuration. The primary distinction between these parts is product status (obsolete versus active) and packaging format (unspecified for SCH2-Q versus bulk for SCL2-Q). Both components are ROHS3 compliant and carry identical ECCN and HTSUS classifications, confirming regulatory and compliance equivalence.

Parameter Comparison

Engineering Selection Recommendations

The SCL2-Q serves as the direct equivalent for the obsolete SCH2-Q. Selection of the SCL2-Q is appropriate for all applications previously utilizing the SCH2-Q, as both components maintain identical electrical and mechanical specifications. The SCL2-Q carries active product status, ensuring ongoing availability and supply chain support. Both components satisfy ROHS3 compliance requirements and are classified under identical export control and tariff designations. The SCL2-Q is available in bulk packaging format, which accommodates both production and field service requirements. For new designs and replacement applications, the SCL2-Q is the designated equivalent component.

Frequently Asked Questions (FAQ)

Q: Can the SCL2-Q replace the SCH2-Q in existing applications?

A: Yes. The SCL2-Q is a direct equivalent to the SCH2-Q. Both components share identical terminal type, wire gauge (2 AWG), crimp termination method, insulation classification, and color specification. Electrical and mechanical compatibility is complete.

Q: What is the primary difference between SCH2-Q and SCL2-Q?

A: The SCH2-Q is obsolete, while the SCL2-Q is active. The SCL2-Q is supplied in bulk packaging. All functional and electrical parameters are identical.

Q: Are both parts ROHS3 compliant?

A: Yes. Both the SCH2-Q and SCL2-Q are ROHS3 compliant and carry identical regulatory classifications.

Q: What wire gauge do these components accommodate?

A: Both components are rated for 2 AWG wire termination using crimp termination methods.

Q: Is the SCL2-Q suitable for non-insulated butt splice applications?

A: Yes. The SCL2-Q is a non-insulated butt splice terminal with inline, individual openings configuration, identical to the SCH2-Q specification.

Q: What is the packaging difference between these parts?

A: The SCH2-Q packaging format is unspecified in available documentation. The SCL2-Q is supplied in bulk packaging format.
