SCF-02-1300 Equivalent & Substitute Parts

Part Overview

The SCF-02-1300 is a 13 mH Common Mode Choke (CMC) designed for power line filtering applications. This through-hole mounted component operates at 2A maximum current with a DC resistance of 115 mOhm and supports dual-line filtering in AC/DC power distribution circuits. The part is Active in product status and maintains full RoHS3 compliance. Substitute parts are identified when equivalent electrical performance parameters align within acceptable tolerances for the intended application, allowing for design flexibility, inventory optimization, or supply chain continuity.

Substiute Parts

SCF-02-1300

KEMETIn Stock: 1870SCF-02-1300 Datasheet

Current PartRFQ

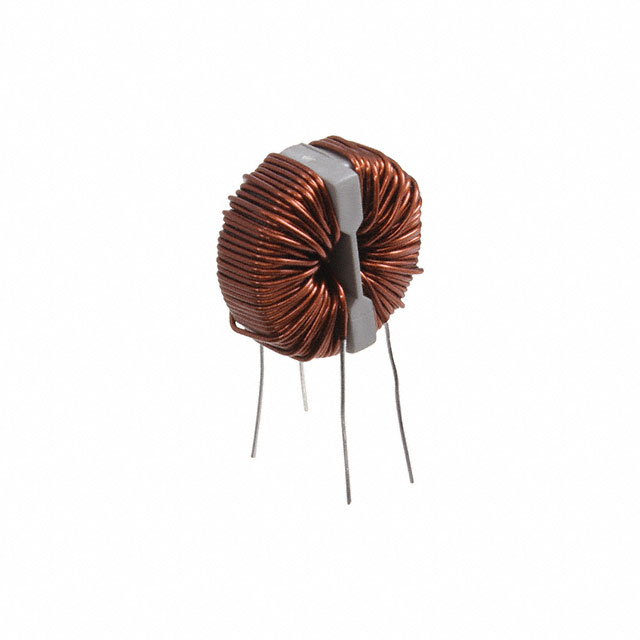

SC-02-090

KEMETIn Stock: 1332SC-02-090 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the SCF-02-1300 are identified based on the following critical parameters:

Electrical Compatibility Criteria:

• Current Rating: Must equal or exceed 2A maximum
• Voltage Rating: Must meet or exceed 250V DC and 250V AC
• Number of Lines: Must equal 2 (dual-line common mode filtering)
• Filter Type: Must be Power Line category
• Operating Temperature: Must span -40°C to 120°C or equivalent range

Mechanical Compatibility Criteria:

• Mounting Type: Must be Through Hole
• Package Configuration: Must be Vertical, No Base, 4 PC Pin

Compliance Criteria:

• RoHS3 Compliance: Required
• REACH Status: Must be REACH Unaffected
• Product Status: Must be Active

The SC-02-090 meets all electrical, mechanical, and compliance requirements. The inductance value of 9.4 mH @ 10 kHz represents a lower inductance specification compared to the primary part, and the DC resistance of 100 mOhm is lower than the 115 mOhm maximum of the SCF-02-1300. These differences define the substitution relationship and must be evaluated against specific circuit requirements.

Parameter Comparison

Engineering Selection Recommendations

Both the SCF-02-1300 and SC-02-090 are Active products manufactured by KEMET with full RoHS3 compliance and REACH Unaffected status. Both components support identical current ratings (2A), voltage specifications (250V DC/AC), operating temperature ranges (-40°C to 120°C), and mounting configurations (through-hole, dual-line).

The primary electrical difference is inductance: the SCF-02-1300 provides 13 mH while the SC-02-090 provides 9.4 mH at 10 kHz. The SC-02-090 also exhibits lower DC resistance (100 mOhm versus 115 mOhm). These specifications must be evaluated against circuit design requirements for common mode noise attenuation and insertion loss characteristics.

Both parts carry identical compliance certifications and regulatory status, ensuring equivalent suitability for regulated applications. Physical package differences exist: the SCF-02-1300 measures 15.00mm L × 12.00mm W × 15.00mm H, while the SC-02-090 measures 26.00mm diameter × 26.00mm height. PCB layout and spatial constraints must be considered during component selection.

Frequently Asked Questions (FAQ)

Q: Can the SC-02-090 directly replace the SCF-02-1300 in all applications?

A: Both parts meet identical electrical ratings (2A, 250V DC/AC, -40°C to 120°C) and mounting requirements (through-hole, dual-line). However, the SC-02-090 provides lower inductance (9.4 mH versus 13 mH) and lower DC resistance (100 mOhm versus 115 mOhm). Circuit-specific filtering requirements and attenuation characteristics must be evaluated before substitution.

Q: What are the physical size differences between these parts?

A: The SCF-02-1300 is a compact rectangular component measuring 15.00mm length × 12.00mm width × 15.00mm height. The SC-02-090 is a cylindrical component with 26.00mm diameter and 26.00mm height. PCB layout space availability differs significantly between these two form factors.

Q: Are both parts RoHS3 compliant?

A: Yes. Both the SCF-02-1300 and SC-02-090 are ROHS3 Compliant and REACH Unaffected, meeting equivalent environmental and regulatory requirements.

Q: What is the primary electrical difference between these substitutes?

A: The SCF-02-1300 provides 13 mH inductance at 10 kHz with 115 mOhm maximum DC resistance. The SC-02-090 provides 9.4 mH inductance at 10 kHz with 100 mOhm maximum DC resistance. The inductance difference affects common mode noise filtering performance and must be evaluated for specific circuit applications.

Q: Do both parts support the same current and voltage ratings?

A: Yes. Both components are rated for 2A maximum current and 250V DC/AC voltage operation across the identical temperature range of -40°C to 120°C.

Q: What mounting configuration do both parts use?

A: Both the SCF-02-1300 and SC-02-090 are through-hole mounted components with vertical orientation, no base, and 4-pin configuration suitable for dual-line common mode filtering.
