SCA121T-D07 Equivalent & Substitute Parts

Part Overview

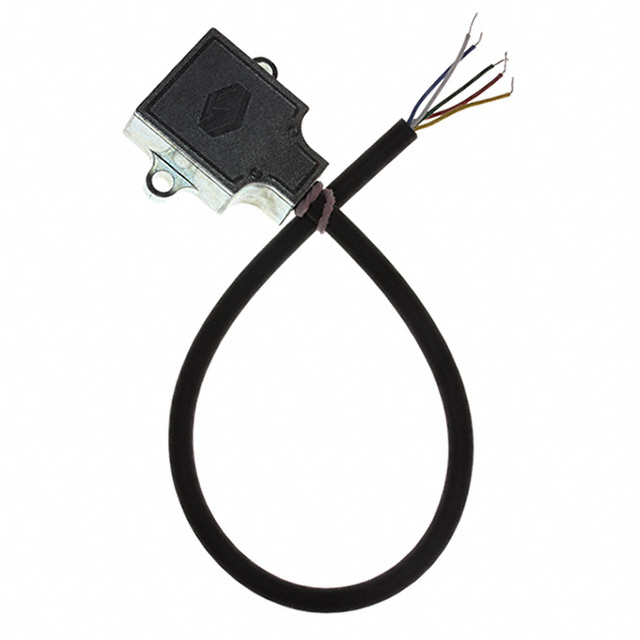

The SCA121T-D07 is an inclinometer motion sensor module manufactured by Murata Electronics, designed for dual-axis (X, Y) inclination measurement with a ±30° measuring range. This module operates as an analog voltage output sensor with 18Hz bandwidth and supports supply voltages between 7V and 35V. The product is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system support and new design implementations.

Substiute Parts

SCA121T-D07

Murata ElectronicsIn Stock: 1071SCA121T-D07 Datasheet

Current PartRFQ

G-NSDOG2-002

TE Connectivity Measurement SpecialtiesIn Stock: 960G-NSDOG2-002 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the SCA121T-D07 is determined by the following critical parameters:

• Axis configuration (X, Y dual-axis requirement)
• Output type (Analog voltage output)
• Interface type (Analog interface)
• Package form factor (Module)
• Operating temperature range compatibility (-40°C ~ 85°C)

The G-NSDOG2-002 qualifies as a substitute based on matching these core parameters. While the substitute part exhibits a wider measuring range (±45° versus ±30°) and higher bandwidth (100Hz versus 18Hz), these represent functional enhancements rather than incompatibilities. The voltage rating overlap (8V ~ 30V for substitute versus 7V ~ 35V for original) requires verification within specific application circuits.

Parameter Comparison

Engineering Selection Recommendations

The G-NSDOG2-002 is the designated manufacturer-recommended substitute for the SCA121T-D07. Selection of this alternative is supported by:

• Active product status, ensuring ongoing availability and manufacturer support
• ROHS3 compliance certification, meeting current environmental and regulatory standards
• Identical dual-axis analog voltage output architecture
• Matching operating temperature range
• Module packaging compatibility

The substitute part's extended measuring range and increased bandwidth provide operational margins beyond the original specification. Applications requiring the original ±30° range specification will operate within the substitute's measurement envelope. The voltage rating differential (minimum 8V for substitute versus 7V for original) must be evaluated against specific power supply designs.

Frequently Asked Questions (FAQ)

Q: Can the G-NSDOG2-002 directly replace the SCA121T-D07 in existing designs?

A: The G-NSDOG2-002 matches the core functional parameters (dual-axis, analog voltage output, module package, operating temperature range). Physical form factor and pinout compatibility must be verified against the specific application circuit before implementation.

Q: What is the significance of the measuring range difference (±30° versus ±45°)?

A: The substitute part's wider ±45° range encompasses the original ±30° specification. Applications designed for ±30° operation will function within the substitute's measurement capability. Signal conditioning or calibration adjustments may be required if the application relies on the original sensitivity characteristics.

Q: How does the bandwidth difference (18Hz versus 100Hz) affect substitution?

A: The substitute's higher 100Hz bandwidth exceeds the original 18Hz specification. This represents enhanced frequency response capability. Applications designed for 18Hz operation will function with the substitute; however, increased bandwidth may introduce higher-frequency noise if the application circuit lacks appropriate filtering.

Q: Are there voltage supply compatibility concerns?

A: The substitute operates within 8V ~ 30V, while the original operates within 7V ~ 35V. The overlap range is 8V ~ 30V. Applications using supply voltages below 8V or above 30V require circuit redesign or alternative component selection.

Q: What is the packaging difference between the two parts?

A: Both parts are supplied in module form factor. The original uses standard packaging, while the substitute is supplied in bulk packaging. This affects procurement and handling procedures but does not impact functional compatibility.
