Equivalent & Substitute Parts Reference for SC202MLTRT

Part Overview

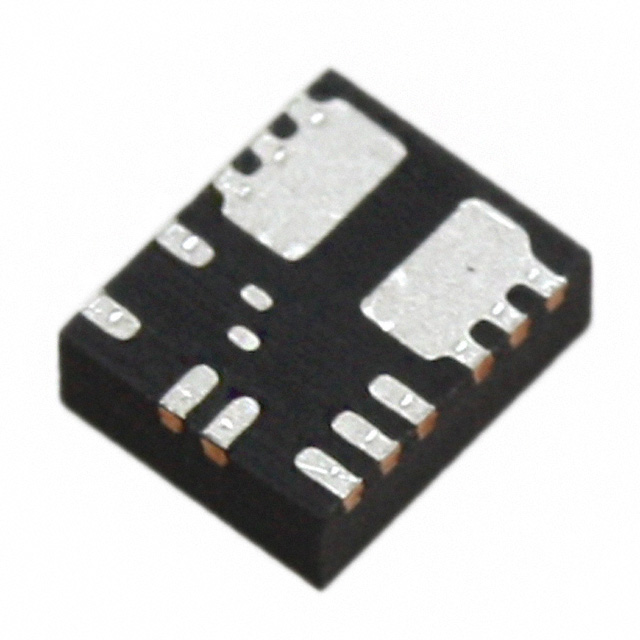

SC202MLTRT is a DC-DC converter module manufactured by Semtech Corporation. It is a Non-Isolated PoL (Point of Load) Module providing a single output voltage in the range of 0.8V to 3.3V, with a maximum output current of 500mA, and accepts an input voltage between 2.9V and 5.5V. The module is designed for ITE (Commercial) applications and is offered in a surface-mount 13-PowerVFQFN package (3.0mm x 2.5mm x 1.0mm). The product status is marked as Obsolete, necessitating the identification of equivalent or substitute models to achieve continued design support or to replace existing stock in production.

Substiute Parts

SC202MLTRT

Semtech CorporationIn Stock: 2330SC202MLTRT Datasheet

Current PartRFQ

SC202AMLTRT

Semtech CorporationIn Stock: 6888SC202AMLTRT Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution is based solely on matching key electrical and mechanical parameters, including series, module type, number of outputs, input/output voltage range, output current, application, operating temperature, mounting type, package/case, size/dimension, supplier device package, and moisture sensitivity level (MSL). Only parts that meet or match these parameters are considered equivalent substitutes in this product category.

Parameter Comparison

Engineering Selection Recommendations

SC202MLTRT is designated as Obsolete. SC202AMLTRT is not intended for new designs. Both models maintain equivalent electrical and mechanical parameters, as well as compliance with RoHS and REACH environmental directives and MSL levels. Selection between these models must be based strictly on matched technical parameters and relevant compliance status as provided.

Frequently Asked Questions (FAQ)

Q1: What determines equivalency between SC202MLTRT and SC202AMLTRT?
A1: Equivalency is determined by matching input voltage range, output voltage range, output current, package size and type, mounting method, operating temperature, and number of outputs.

Q2: Are the packages and pinouts identical?
A2: Both SC202MLTRT and SC202AMLTRT use the 13-PowerVFQFN Module case and the 13-MLPQ (2.5x3) supplier device package with matching dimensions.

Q3: Is the Moisture Sensitivity Level (MSL) relevant for substitution?
A3: Both parts have an MSL of 1 (Unlimited), supporting compatibility in standard surface-mount manufacturing environments.

Q4: What should be considered regarding RoHS and REACH compliance?
A4: SC202AMLTRT is explicitly RoHS compliant and REACH unaffected; compliance for SC202MLTRT is not indicated. Selection should consider provided compliance information if required by the application.

Q5: Are there any differences in mechanical or thermal ratings provided?
A5: Both substitutes have identical operating temperature ranges and mechanical dimensions per provided parameters.

Q6: Is there any difference in functionalities due to additional features listed for substitutes?
A6: Substitute part SC202AMLTRT lists features such as OCP (Over Current Protection), OTP (Over Temperature Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), and UVLO (Under Voltage Lock Out), which are within the allowed substitution criteria based on input data.
