SC020-030 Equivalent & Substitute Parts

Part Overview

The SC020-030 is an RF Gateway module manufactured by Synapse Wireless, designed for 2.4GHz mesh networking applications. This gateway operates on the SNAP® Network platform and provides dual-band wireless connectivity via 802.15.4 and 802.11 b/g/n protocols, with Ethernet and USB interface options. The SC020-030 is classified as obsolete, necessitating identification of active equivalent models to maintain system continuity and ensure ongoing component availability for new deployments and field replacements.

Substiute Parts

SC020-030

Synapse WirelessIn Stock: 1074SC020-030 Datasheet

Current PartRFQ

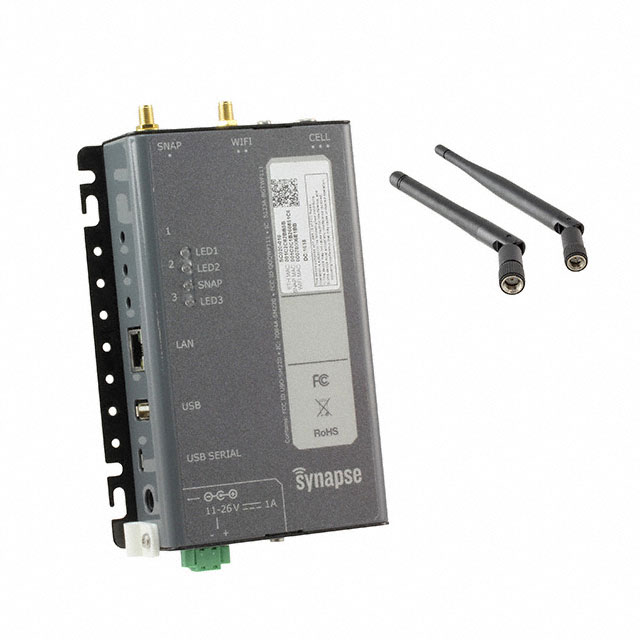

SC020-010

Synapse WirelessIn Stock: 677SC020-010 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The SC020-010 qualifies as a direct substitute for the SC020-030 based on the following alignment of critical parameters:

Matching Parameters:

• Manufacturer: Synapse Wireless (identical)
• Series: SNAP® Network (identical)
• Function: Gateway (identical)
• Frequency: 2.4GHz (identical)
• Base Product Number: SC020 (identical)
• Voltage Supply Range: 11V ~ 26V (identical)
• Interface Category: Ethernet and USB connectivity (both present)

Protocol Enhancement: The SC020-010 supports 802.11 a/b/g/n and SNAP protocols, providing extended protocol coverage compared to the SC020-030's 802.15.4 and 802.11 b/g/n support. This represents a functional superset within the same product family.

Product Status Transition: The SC020-010 maintains Active product status, ensuring continued manufacturer support, availability, and compliance certification, whereas the SC020-030 is obsolete.

Parameter Comparison

Engineering Selection Recommendations

The SC020-010 is the designated substitute for the SC020-030 within the Synapse Wireless SNAP® Network product line. Selection of the SC020-010 is supported by the following engineering criteria:

Product Status and Support: The SC020-010 maintains Active product status, ensuring continued availability and manufacturer technical support. The SC020-030's obsolete classification restricts future procurement and support options.

Compliance and Certification: The SC020-010 carries ROHS3 compliance certification and defined ECCN classification (5A002A1), providing regulatory clarity for procurement and export documentation. The SC020-030 lists ECCN as OBSOLETE, indicating regulatory status uncertainty.

Functional Compatibility: Both units operate within the identical voltage supply range (11V ~ 26V) and maintain the same base product architecture (SC020). The SC020-010 provides extended protocol support while maintaining backward compatibility with the core gateway function.

Interface Consistency: Both models provide Ethernet and USB connectivity. The SC020-010 adds MicroUSB as an additional interface option, expanding deployment flexibility without compromising existing interface requirements.

Frequently Asked Questions (FAQ)

Q: Can the SC020-010 directly replace the SC020-030 in existing installations?

A: Yes. Both units share identical voltage supply requirements (11V ~ 26V), operate on the SNAP® Network platform, and provide Ethernet and USB interfaces. The SC020-010 supports an extended protocol set (802.11 a/b/g/n, SNAP) compared to the SC020-030 (802.15.4, 802.11 b/g/n), ensuring functional compatibility and enhanced capability.

Q: What is the primary reason for substituting the SC020-030?

A: The SC020-030 is classified as obsolete, limiting future availability and manufacturer support. The SC020-010 is an active product with current compliance certifications (ROHS3), ensuring long-term procurement viability and regulatory compliance.

Q: Are there packaging differences between these models?

A: The SC020-010 is specified with Box packaging. The SC020-030 packaging specification is not provided in available documentation. Packaging differences do not affect functional compatibility but may influence logistics and storage requirements.

Q: Does the SC020-010 provide additional interface options?

A: Yes. The SC020-010 includes MicroUSB in addition to standard Ethernet and USB interfaces. The SC020-030 provides Ethernet and USB only. This addition expands connectivity options without removing existing interface support.

Q: What compliance certifications apply to the SC020-010?

A: The SC020-010 is ROHS3 compliant with Moisture Sensitivity Level 1 (Unlimited). The ECCN classification is 5A002A1. The SC020-030 compliance information is not fully documented.

Q: Are the protocol differences between these models significant for substitution?

A: The SC020-010 supports 802.11 a/b/g/n and SNAP protocols, while the SC020-030 supports 802.15.4 and 802.11 b/g/n. The SC020-010's extended protocol support represents a functional superset, ensuring compatibility with existing SC020-030 deployments while enabling additional network configurations.
