Equivalent & Substitute Parts Reference – SC003A5F91Z

Part Overview

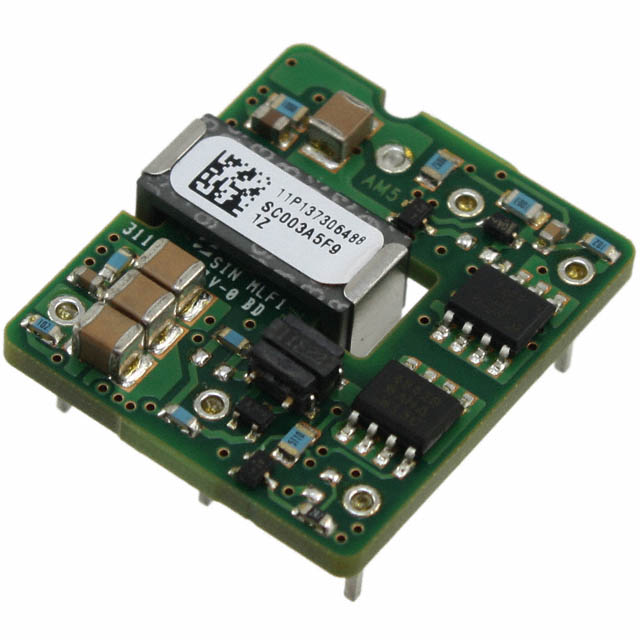

OmniOn Power model SC003A5F91Z is an isolated module DC-DC converter providing a single output of 3.3V at up to 3.5A, with an input voltage range of 18V to 36V. It delivers 12 W of output power and is housed in a 6-DIP module through-hole package, suitable for commercial ITE applications. Key features include remote on/off, overcurrent, overvoltage, and undervoltage lockout protection. The product status is obsolete, necessitating the identification of substitute parts to fulfill design and maintenance requirements for ongoing or future projects utilizing this module.

Substiute Parts

SC003A5F91Z

OmniOn PowerIn Stock: 1084SC003A5F91Z Datasheet

Current PartRFQ

PXB15-24S3P3/NT

TDK-Lambda Americas IncIn Stock: 783PXB15-24S3P3/NT Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the OmniOn Power SC003A5F91Z is performed strictly on parameters that determine electrical and mechanical compatibility. The substitute part, TDK-Lambda Americas Inc PXB15-24S3P3/NT, is selected based on identical input voltage range, output voltage, number of outputs, operating temperature range, mounting type, and package/case format. Features such as remote on/off, overcurrent and overvoltage protection are present in both models. Key substitution parameters used for equivalency are:

• Input Voltage Range (18V – 36V)
• Output Voltage (3.3V)
• Output Current Capability
• Output Power
• Package / Case (6-DIP Module, Through Hole)
• Functional Features
• Operating Temperature Range

Parameter Comparison

Engineering Selection Recommendations

Selection of TDK-Lambda Americas Inc PXB15-24S3P3/NT is based on equivalent input voltage range, output voltage, and matching mechanical form factor. Both products share the same compliance attributes (ECCN EAR99, HTSUS 8504.40.9580, Moisture Sensitivity Level 1), through-hole mounting, and control features. The substitute is RoHS compliant and REACH unaffected. The obsolete status of SC003A5F91Z and the active availability of PXB15-24S3P3/NT provide a direct pathway to substitution based strictly on provided status and documented compliance.

Frequently Asked Questions (FAQ)

Q1: What are the primary criteria for substituting SC003A5F91Z?
A1: Substitution is strictly based on matching input voltage range, output voltage and current capabilities, package/case type, features, and mounting method.

Q2: Does PXB15-24S3P3/NT match the mechanical format of SC003A5F91Z?
A2: Yes, both are through-hole 6-DIP module formats with documented size/dimension parameters.

Q3: Are all listed features equivalent between the two modules?
A3: Key features such as remote on/off, overcurrent, and overvoltage protection are common; substitutes include additional protection features as documented.

Q4: Is operating temperature compatibility ensured?
A4: The operating temperature range of -40°C ~ 85°C is identical for both parts.

Q5: Do both parts meet the same compliance and certifications?
A5: Both modules are classified under ECCN EAR99, HTSUS 8504.40.9580, and Moisture Sensitivity Level 1. The substitute part reports RoHS and REACH status per specification.

Q6: Is the substitution suitable for commercial ITE applications?
A6: Both parts specify ITE (Commercial) as intended application, matching the category requirement.

Q7: Are control features preserved in substitution?
A7: Both parts support enable, active low control features as specified.

Q8: How does the change in voltage isolation affect compatibility?
A8: The substitute part has a voltage isolation of 1.6 kV as documented; assessment for particular isolation requirements should reference this parameter explicitly.
