SA649000 DIP Socket 64-Position Equivalent & Substitute Parts

Part Overview

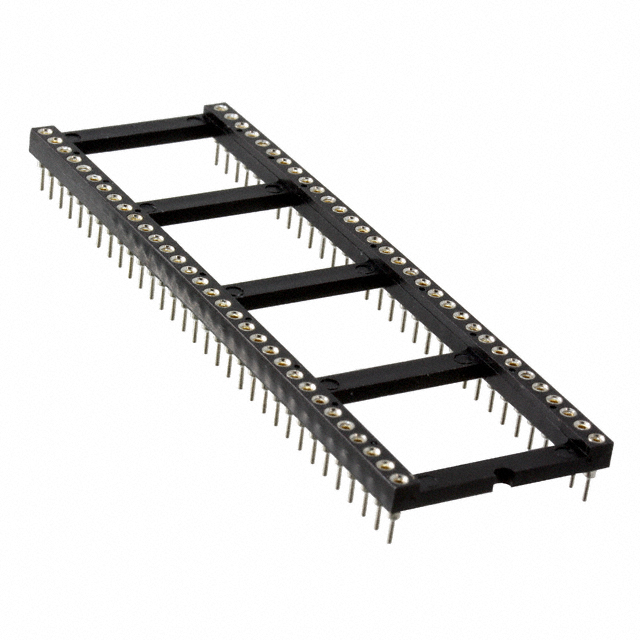

The SA649000 is a 64-position DIP socket manufactured by On Shore Technology Inc., designed for through-hole mounting of dual inline package integrated circuits. This component features gold-plated mating contacts and tin-plated brass posts for reliable electrical connection and mechanical retention.

The SA649000 is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure component availability for production, and support long-term system maintenance and repair operations.

Substiute Parts

SA649000

On Shore Technology Inc.In Stock: 1165SA649000 Datasheet

Current PartRFQ

110-87-964-41-001101

Preci-DipIn Stock: 833110-87-964-41-001101 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the SA649000 is determined by the following critical parameters that must remain constant:

• Number of Positions: 64 (2 x 32) configuration
• Type: DIP socket with 0.9" (22.86mm) row spacing
• Pitch - Mating: 0.100" (2.54mm) standard DIP pitch
• Contact Finish - Mating: Gold plating on beryllium copper
• Mounting Type: Through hole solder termination
• Housing Material: Thermoplastic with glass reinforcement

The substitute part 110-87-964-41-001101 (Preci-Dip) satisfies all critical substitution criteria. Both parts maintain identical mechanical and electrical interface specifications for 64-position DIP socket applications. The substitute part is classified as active product status, ensuring ongoing availability and supply chain continuity.

Parameter Comparison

Engineering Selection Recommendations

The 110-87-964-41-001101 (Preci-Dip) is the qualified substitute for the obsolete SA649000. Both parts maintain identical mechanical and electrical interface specifications for 64-position DIP socket applications and are ROHS3 compliant.

The substitute part is classified as active product status, ensuring long-term availability and supply chain support. The extended operating temperature range (-55°C ~ 125°C) of the substitute part provides enhanced thermal performance compared to the original part specification (-40°C ~ 105°C).

Design applications requiring the full 3 A current rating of the original SA649000 must evaluate the 1 A current rating of the substitute part. Applications operating within the 1 A current specification are directly compatible. The increased contact resistance (10 mOhm versus 4 mOhm) must be evaluated for applications with stringent voltage drop requirements.

Frequently Asked Questions (FAQ)

Q: Can the 110-87-964-41-001101 be used as a direct replacement for the SA649000?

A: Yes, for applications operating within the 1 A current specification. Both parts maintain identical 64-position DIP socket configuration, 0.100" (2.54mm) pitch, gold-plated beryllium copper mating contacts, and through-hole solder termination. Applications requiring the full 3 A current rating of the original part must evaluate the reduced current specification of the substitute.

Q: What are the key differences between these two parts?

A: The substitute part (Preci-Dip) offers an extended operating temperature range (-55°C ~ 125°C versus -40°C ~ 105°C), active product status for ongoing availability, and different housing material (PCT polyester versus thermoplastic polyester). The substitute part has a lower current rating (1 A versus 3 A) and higher contact resistance (10 mOhm versus 4 mOhm).

Q: Are both parts RoHS compliant?

A: Yes, both the SA649000 and 110-87-964-41-001101 are ROHS3 compliant.

Q: What is the significance of the product status difference?

A: The SA649000 is classified as obsolete, indicating discontinued manufacturing and limited availability. The 110-87-964-41-001101 is classified as active, ensuring ongoing production, supply chain support, and long-term component availability for new designs and production runs.

Q: Are there packaging differences between these parts?

A: The SA649000 is supplied without specified packaging designation. The 110-87-964-41-001101 is supplied in bulk packaging. Both parts are suitable for through-hole PCB assembly processes.
