S7B-EH Rectangular Connector: Equivalent & Substitute Parts

Part Overview

The S7B-EH is an active rectangular connector header manufactured by JST Sales America Inc., designed for through-hole, right-angle board-to-cable/wire applications. This 7-position connector operates at 3A current rating and 250V voltage rating with a 0.098" (2.50mm) pitch. Finding equivalent substitute parts is necessary to ensure design flexibility, manage supply chain continuity, and maintain compatibility across manufacturing batches and sourcing options.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	7
Pitch - Mating	0.098" (2.50mm)
Mounting Type	Through Hole, Right Angle
Current Rating	3A
Voltage Rating	250V
Operating Temperature	-25°C ~ 85°C
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the S7B-EH rectangular connector are qualified based on the following critical parameters:

Connector Type & Contact Type: Header with Male Pin contacts
Position Count & Pitch: 7 positions at 0.098" (2.50mm) mating pitch
Mounting Configuration: Through Hole, Right Angle orientation
Electrical Ratings: 3A current and 250V voltage minimum
Operating Temperature Range: -25°C ~ 85°C
Insulation Material: Polyamide (PA66), Nylon 6/6
Flammability Compliance: UL94 V-0
Regulatory Compliance: ROHS3 Compliant

The following parts meet these substitution criteria:

25SH-C-07-TR (Adam Tech)
440053-7 (TE Connectivity AMP Connectors)

Parameter Comparison

Parameter	S7B-EH (JST)	25SH-C-07-TR (Adam Tech)	440053-7 (TE Connectivity)
Connector Type	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin
Number of Positions	7	7	7
Pitch - Mating	0.098" (2.50mm)	0.098" (2.50mm)	0.098" (2.50mm)
Number of Rows	1	1	1
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Shrouding	Shrouded - 3 Wall	Shrouded - 4 Wall	Shrouded - 3 Wall
Termination	Press-Fit, Solder	Kinked Pin, Solder	Press-Fit, Solder
Fastening Type	Latch Lock	Friction Lock	Friction Lock
Insulation Height	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)
Contact Shape	Square	Square	Square
Contact Finish - Mating	Tin	Tin	Tin
Contact Finish - Post	Tin	Tin	Tin
Contact Material	Brass	Brass	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Operating Temperature	-25°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0
Current Rating	3A	3A	3A
Voltage Rating	250V	250VAC	250V
Insulation Color	Natural	White	Natural
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Active	Active	Active

Engineering Selection Recommendations

All three parts—S7B-EH, 25SH-C-07-TR, and 440053-7—maintain active product status and full ROHS3 compliance. Selection between these rectangular connectors should be based on the following factors:

S7B-EH (JST Sales America Inc.): Primary specification with latch lock fastening and press-fit termination. Suitable for applications requiring positive mechanical retention.

25SH-C-07-TR (Adam Tech): Equivalent substitute with friction lock fastening and kinked pin termination. Features 4-wall shrouding compared to 3-wall on the primary part. White insulation color distinguishes this variant. Appropriate for applications where friction lock engagement is acceptable.

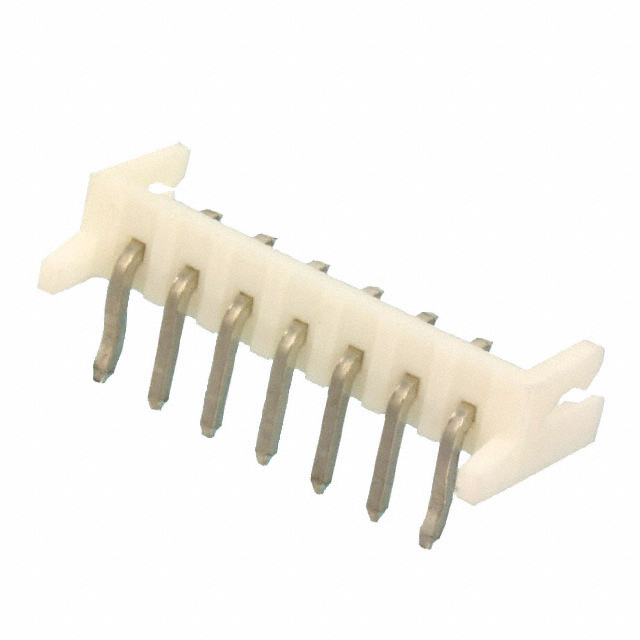

440053-7 (TE Connectivity AMP Connectors): Equivalent substitute with friction lock fastening and press-fit termination. Maintains 3-wall shrouding matching the primary part. Highest inventory availability (17,505 pcs) among the three options. Suitable for general purpose, industrial, automotive, and medical applications.

All parts operate within identical electrical and thermal specifications (3A, 250V, -25°C ~ 85°C) and share the same pitch, position count, and insulation material composition.

Frequently Asked Questions (FAQ)

Q: Can 25SH-C-07-TR replace S7B-EH in existing designs?

A: Yes. Both connectors share identical mating pitch (0.098" / 2.50mm), position count (7), electrical ratings (3A / 250V), and operating temperature range (-25°C ~ 85°C). The primary differences are fastening type (friction lock vs. latch lock), termination method (kinked pin vs. press-fit), and shrouding configuration (4-wall vs. 3-wall). PCB layout compatibility is maintained.

Q: What is the difference between latch lock and friction lock fastening?

A: Latch lock (S7B-EH) provides positive mechanical retention through a locking mechanism. Friction lock (25SH-C-07-TR, 440053-7) relies on contact pressure for retention. Both are suitable for board-to-cable/wire applications; selection depends on application requirements for mating force and unmating security.

Q: Are all three parts RoHS compliant?

A: Yes. S7B-EH, 25SH-C-07-TR, and 440053-7 are all ROHS3 compliant with Moisture Sensitivity Level 1 (Unlimited).

Q: Does insulation color affect electrical performance?

A: No. Insulation color (Natural vs. White) is a visual identifier only and does not affect electrical or mechanical performance. Both colors indicate identical Polyamide (PA66), Nylon 6/6 material composition.

Q: What is the difference between press-fit and kinked pin termination?

A: Press-fit termination (S7B-EH, 440053-7) uses straight pins inserted into plated through-holes under controlled force. Kinked pin termination (25SH-C-07-TR) uses bent pins for through-hole insertion. Both methods provide solder-compatible connections; selection depends on PCB design and assembly equipment capability.

Q: Which part has the best inventory availability?

A: 440053-7 (TE Connectivity) has the highest inventory at 17,505 pcs, followed by 25SH-C-07-TR (Adam Tech) at 2,869 pcs, and S7B-EH (JST) at 994 pcs.
