S3B-PH-SM3-TB Equivalent & Substitute Parts

Part Overview

The S3B-PH-SM3-TB is a surface mount right-angle rectangular connector header manufactured by JST Sales America Inc. in the PH series. This 3-position connector operates at 2.00mm pitch with shrouded 4-wall design and solder termination. The part is classified as obsolete, making equivalent substitute parts necessary for ongoing design support and procurement.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	3
Pitch - Mating	0.079" (2.00mm)
Mounting Type	Surface Mount, Right Angle
Shrouding	Shrouded - 4 Wall
Termination	Solder
Fastening Type	Detent Lock
Contact Shape	Square
Material Flammability Rating	UL94 V-0
Operating Temperature	-25°C ~ 85°C
Voltage Rating	100V
Current Rating	2A
Moisture Sensitivity Level	1 (Unlimited)
RoHS Status	RoHS non-compliant

Substitute Part Grouping Explanation

Substitution eligibility for the S3B-PH-SM3-TB is determined by the following critical parameters:

Connector Type & Contact Type: Header with male pins
Position Count & Pitch: 3 positions at 0.079" (2.00mm) mating pitch
Mounting Configuration: Surface mount, right-angle orientation
Shrouding Design: Shrouded 4-wall construction
Termination Method: Solder termination with detent lock fastening
Contact Geometry: Square contact shape
Electrical Ratings: Voltage and current capacity within or exceeding original specifications
Environmental Compliance: UL94 V-0 flammability rating and MSL 1 classification

The substitute parts listed below meet these core substitution criteria. Variations in contact length, insulation material composition, contact finish, and product status are noted but do not preclude functional equivalence in standard applications.

Parameter Comparison

Parameter	S3B-PH-SM3-TB (JST)	1-292173-3 (TE)	2-292173-3 (TE)	292173-3 (TE)	3-292173-3 (TE)	SWR201-NRTN-S03-HM-BG (Sullins)
Manufacturer	JST Sales America Inc.	TE Connectivity AMP	TE Connectivity AMP	TE Connectivity AMP	TE Connectivity AMP	Sullins Connector Solutions
Series	PH	CT	CT	CT	CT	SWR201
Product Status	Obsolete	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Number of Positions	3	3	3	3	3	3
Pitch - Mating	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle	Surface Mount, Right Angle
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Termination	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock	Detent Lock
Contact Shape	Square	Square	Square	Square	Square	Square
Contact Length - Mating	0.130" (3.30mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	0.165" (4.20mm)	Not specified
Insulation Height	0.217" (5.51mm)	0.228" (5.80mm)	0.228" (5.80mm)	0.228" (5.80mm)	0.228" (5.80mm)	0.217" (5.51mm)
Contact Material	Brass	Brass	Brass	Brass	Brass	Brass
Contact Finish - Mating	Tin-Lead	Tin	Tin	Tin	Tin	Tin
Insulation Material	Polyamide (PA46), Nylon 4/6	Polyamide (PA6T), Nylon 6T, Glass Filled	Polyamide (PA6T), Nylon 6T, Glass Filled	Polyamide (PA6T), Nylon 6T, Glass Filled	Polyamide (PA6T), Nylon 6T, Glass Filled	Polyamide (PA46), Nylon 4/6
Insulation Color	Natural	Natural	Black	Black	Natural	Beige
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-25°C ~ 85°C	Not specified	Not specified	Not specified	Not specified	-25°C ~ 85°C
Voltage Rating	100V	125VAC	125VAC	125VAC	125VAC	125V
Current Rating	2A	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	1A per Contact
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
RoHS Status	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Packaging	Not specified	Tape & Reel (TR)	Tape & Reel (TR)	Tape & Reel (TR)	Cut Tape (CT)	Tube

Engineering Selection Recommendations

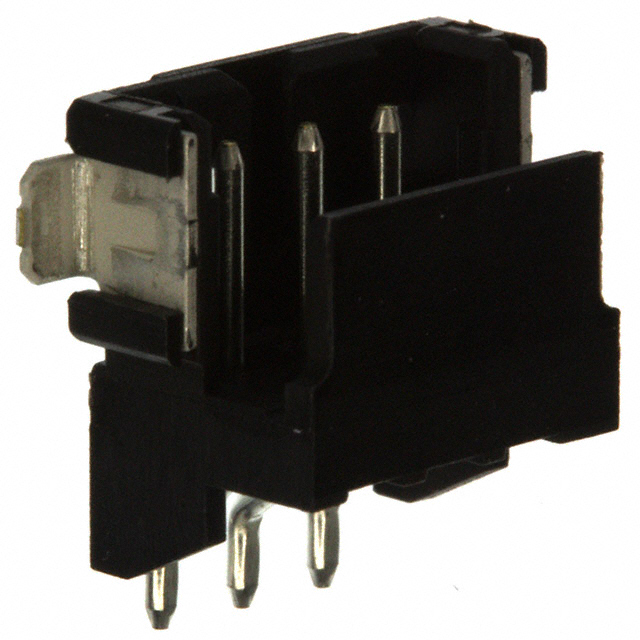

TE Connectivity AMP Connectors (1-292173-3, 2-292173-3, 292173-3, 3-292173-3)

All four TE Connectivity variants are active products with ROHS3 compliance and REACH unaffected status. These parts maintain identical core electrical and mechanical specifications to the S3B-PH-SM3-TB, including 3-position 2.00mm pitch, shrouded 4-wall design, and solder termination. The TE parts feature higher voltage rating (125VAC vs. 100V) and improved insulation material (PA6T glass-filled vs. PA46). Differences in contact length (0.165" vs. 0.130") and insulation height (0.228" vs. 0.217") are within acceptable tolerance for standard board-to-cable applications. Available in multiple packaging formats (Tape & Reel and Cut Tape) with substantial inventory levels.

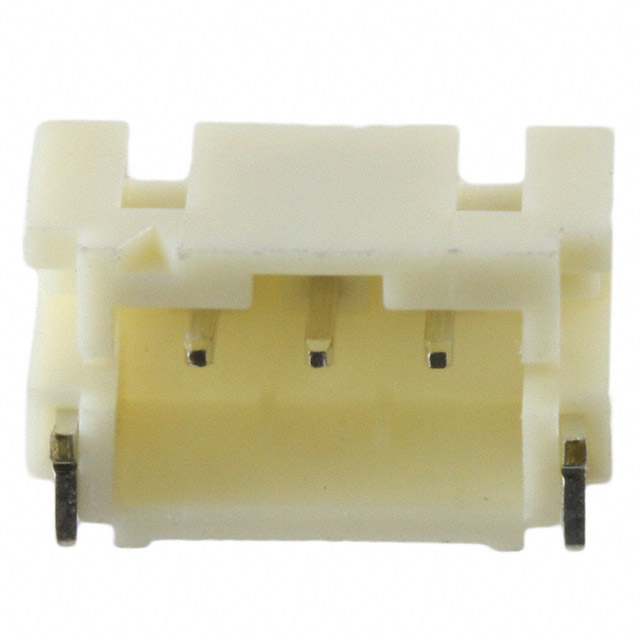

Sullins Connector Solutions (SWR201-NRTN-S03-HM-BG)

The SWR201-NRTN-S03-HM-BG is an active product with ROHS3 compliance and REACH unaffected status. This part matches the original S3B-PH-SM3-TB in insulation height (0.217"), operating temperature range (-25°C ~ 85°C), and insulation material composition (PA46). Voltage rating is equivalent (125V vs. 100V). The primary distinction is current rating specification: 1A per contact versus the original 2A rating. This part is suitable for applications where current requirements do not exceed 1A per contact.

Frequently Asked Questions (FAQ)

Q: Can I use TE Connectivity 292173-3 series parts as direct replacements for the S3B-PH-SM3-TB?

A: Yes. The TE Connectivity 292173-3 variants (1-292173-3, 2-292173-3, 292173-3, 3-292173-3) are functionally equivalent. All maintain the critical substitution parameters: 3-position header, 2.00mm pitch, surface mount right-angle configuration, shrouded 4-wall design, and solder termination with detent lock. The parts are active products with superior compliance status (ROHS3 vs. RoHS non-compliant). Minor dimensional variations in contact length and insulation height do not affect standard board-to-cable interconnect applications.

Q: What is the difference between the four TE Connectivity part numbers?

A: The four TE Connectivity variants differ in packaging format and insulation color. Parts 1-292173-3, 2-292173-3, and 292173-3 are supplied in Tape & Reel format with varying insulation colors (Natural or Black). Part 3-292173-3 is supplied in Cut Tape format with Natural insulation color. All four parts are electrically and mechanically identical and interchangeable for design purposes.

Q: Is the Sullins SWR201-NRTN-S03-HM-BG suitable for all applications using the S3B-PH-SM3-TB?

A: The Sullins part is suitable for applications where current requirements do not exceed 1A per contact. The original S3B-PH-SM3-TB is rated for 2A total current. If your application requires 2A current capacity, use the TE Connectivity 292173-3 series instead. The Sullins part is otherwise equivalent in electrical and mechanical specifications.

Q: Why do the TE Connectivity parts have higher voltage ratings (125VAC) than the original (100V)?

A: Higher voltage ratings indicate improved electrical performance and safety margin. A 125VAC rating is compatible with 100V applications and provides additional design flexibility. This is not a limitation but an enhancement.

Q: What is the significance of ROHS3 compliance on the substitute parts?

A: ROHS3 compliance indicates the parts meet current Restriction of Hazardous Substances regulations, whereas the original S3B-PH-SM3-TB is RoHS non-compliant. For new designs or applications subject to RoHS requirements, the substitute parts are necessary. For legacy systems, either compliant or non-compliant parts may be acceptable depending on regulatory requirements.

Q: Are there packaging considerations when selecting between these substitute parts?

A: Yes. TE Connectivity parts are available in Tape & Reel (TR) or Cut Tape (CT) packaging, suitable for automated assembly. The Sullins part is supplied in Tube packaging, which may require manual handling. Select packaging based on your assembly process requirements and volume needs.

Q: Can I mix different substitute parts in the same design?

A: Yes, all listed substitute parts are functionally equivalent and can be used interchangeably in the same design, provided current requirements do not exceed the rated capacity of the selected part. Verify contact length and insulation height compatibility with your specific PCB layout and mating connector design.
