S-303H-AB Equivalent & Substitute Parts

Part Overview

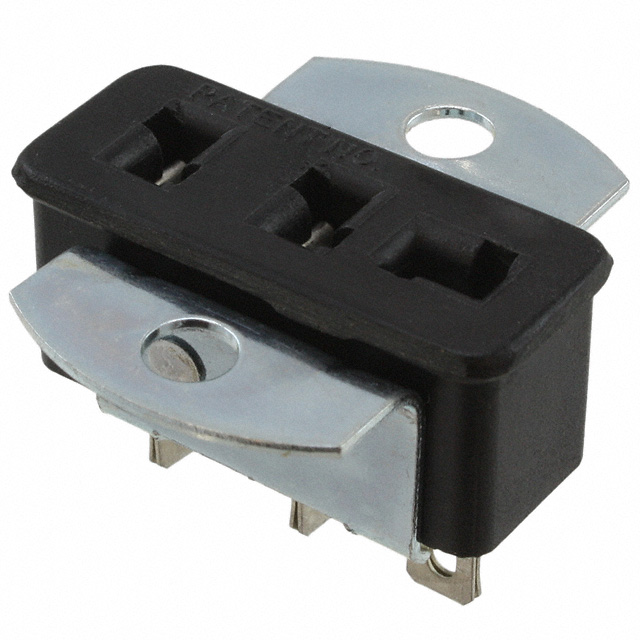

The S-303H-AB is a 3-position socket Jones connector manufactured by Cinch Connectivity Solutions, designed for panel mount applications with solder eyelet termination. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing system maintenance and new design implementations. The connector features a push-pull fastening mechanism and is rated for 250 V and 10 A operation.

Substiute Parts

S-303H-AB

Cinch Connectivity SolutionsIn Stock: 788S-303H-AB Datasheet

Current PartRFQ

S-2404H-AB

Cinch Connectivity SolutionsIn Stock: 913S-2404H-AB Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the S-303H-AB is determined by the following critical parameters:

Connector Type: Socket, Jones connectors maintain mechanical and electrical compatibility within the Jones connector family.

Mounting Configuration: Panel mount orientation and flange design must be preserved.

Termination Method: Solder eyelet termination is required for PCB integration.

Electrical Ratings: Voltage rating of 250 V and current rating must meet or exceed the original specification.

Material Composition: Phenol formaldehyde insulation and phosphor bronze contacts with tin finish ensure consistent performance characteristics.

Operating Temperature: 105°C maximum operating temperature establishes the thermal envelope for substitute selection.

Compliance Standards: RoHS compliance status must be maintained for regulatory alignment.

The S-2404H-AB qualifies as a substitute based on these parameters, with the exception of position count and current rating, which represent design enhancements rather than incompatibilities.

Parameter Comparison

Engineering Selection Recommendations

The S-2404H-AB is available as an active product with current manufacturing support, addressing the obsolescence status of the S-303H-AB. Both connectors maintain identical electrical ratings of 250 V and equivalent operating temperature specifications of 105°C. RoHS compliance is preserved across both parts, ensuring regulatory continuity.

The S-2404H-AB provides enhanced current capacity at 15 A compared to the 10 A rating of the S-303H-AB, representing a design improvement. The increased position count (4 versus 3) and dual-row configuration (2 rows versus 1 row) require mechanical validation to confirm fit within existing panel mount apertures and PCB layouts.

Selection of the S-2404H-AB is supported by its active product status and availability of 901 units in stock, compared to the limited inventory of 747 units for the obsolete S-303H-AB.
