RV14-10C Ring Terminal Connector Equivalent & Substitute Parts

Part Overview

The RV14-10C is a ring terminal connector manufactured by 3M, designed for 14-16 AWG wire gauges with a #10 stud connection. This insulated circular terminal features a crimp termination method and is part of the Highland™ series. The product is currently obsolete, making identification of suitable substitute components essential for ongoing maintenance, repair, and new design applications where equivalent functionality is required.

Substiute Parts

RV14-10C

3MIn Stock: 1132RV14-10C Datasheet

Current PartRFQ

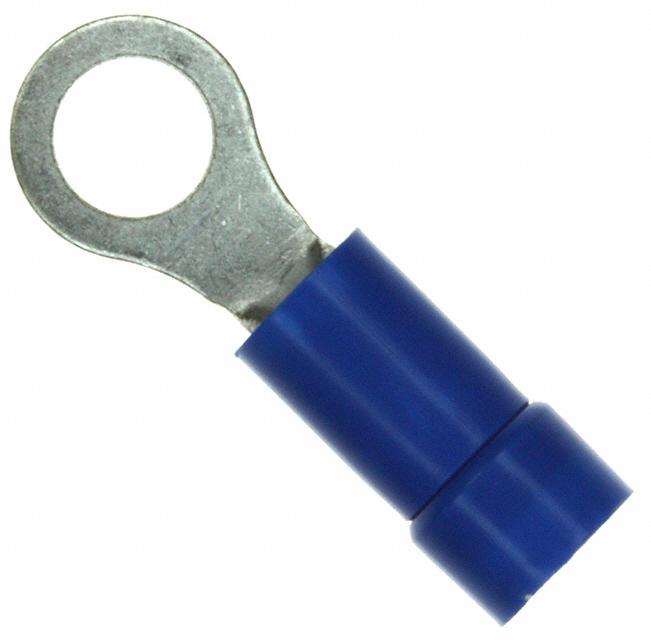

PV14-10R-C

Panduit CorpIn Stock: 3448PV14-10R-C Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the RV14-10C is determined by strict equivalence across the following critical parameters:

• Terminal Type & Stud Size: Must be circular terminal with #10 stud to ensure mechanical compatibility with mating connectors
• Wire Gauge Range: Must accommodate 14-16 AWG to maintain proper crimp contact and current-carrying capacity
• Termination Method: Must be crimp-style to match assembly processes and tooling
• Insulation Specifications: Insulation diameter of 0.170" (4.32mm) and vinyl material ensure proper fit within connector housings
• Contact Material & Finish: Copper with tin finish provides equivalent electrical performance and corrosion resistance

The PV14-10R-C from Panduit Corp meets all these critical parameters and is classified as an MFR recommended substitute.

Parameter Comparison

Engineering Selection Recommendations

The PV14-10R-C is the designated substitute for the obsolete RV14-10C. Both components share identical critical specifications for terminal type, stud size, wire gauge, and insulation dimensions, ensuring direct functional equivalence in applications.

The PV14-10R-C offers the advantage of active product status, meaning it remains in current production with established supply chains. Additionally, the Panduit component carries ROHS3 compliance certification, meeting modern environmental and regulatory requirements for new designs and manufacturing processes.

Both components are REACH Unaffected and classified under ECCN EAR99, maintaining equivalent regulatory standing for export and distribution purposes.

Frequently Asked Questions (FAQ)

Q: Can the PV14-10R-C directly replace the RV14-10C in existing assemblies?

A: Yes. Both terminals share identical stud size (#10), wire gauge range (14-16 AWG), insulation diameter (0.170"), and crimp termination method. The mechanical and electrical interfaces are equivalent.

Q: What are the dimensional differences between these two terminals?

A: Minor variations exist in thickness (RV14-10C: 0.030" vs. PV14-10R-C: 0.032") and width (RV14-10C: 0.330" vs. PV14-10R-C: 0.310"). These differences do not affect functional compatibility with standard #10 stud connectors. Length differs slightly (RV14-10C: 0.900" vs. PV14-10R-C: 0.920").

Q: What is the difference between butted seam and brazed seam construction?

A: Both seam types provide structural integrity for the terminal. The RV14-10C uses butted seam construction, while the PV14-10R-C uses brazed seam. Both methods are acceptable for this terminal category and do not affect electrical performance or compatibility.

Q: Are there packaging differences between these components?

A: The RV14-10C is listed with unspecified packaging, while the PV14-10R-C is supplied in bulk packaging. Packaging format does not affect component functionality or interchangeability.

Q: Does the ROHS3 compliance of the PV14-10R-C affect compatibility?

A: No. ROHS3 compliance indicates the substitute meets modern environmental standards and is suitable for new designs. It does not alter electrical or mechanical compatibility with the original RV14-10C specification.
