RTAC32S06M25NS Equivalent & Substitute Parts

Part Overview

The RTAC32S06M25NS is a 6-position rotary switch manufactured by C&K, featuring dual-pole, six-throw (DP6T) configuration with 150mA (AC/DC) current rating at 60V. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing system maintenance and new design implementations. The switch employs non-shorting (BBM) contact timing with panel mount solder lug termination, designed for applications requiring reliable multi-position selection with fixed index stops.

Substiute Parts

RTAC32S06M25NS

C&KIn Stock: 772RTAC32S06M25NS Datasheet

Current PartRFQ

A20615RNZQ

C&KIn Stock: 992A20615RNZQ Datasheet

SimilarRFQ

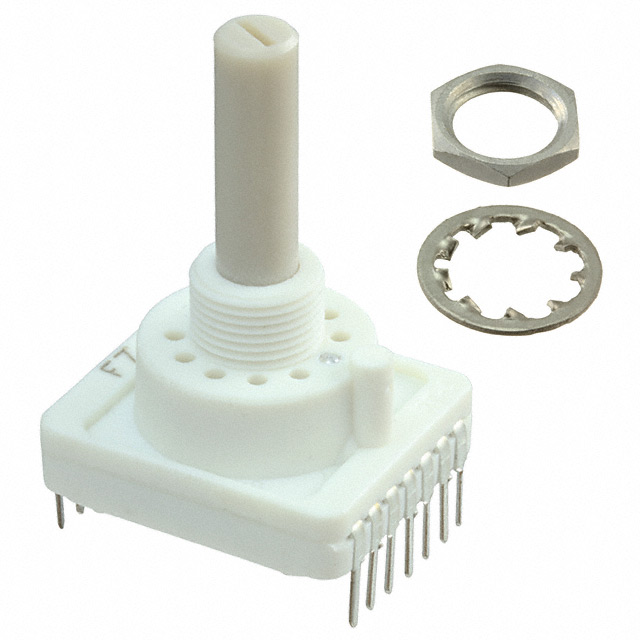

RTAP32S06M25NS

C&KIn Stock: 1746RTAP32S06M25NS Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the RTAC32S06M25NS are identified based on the following critical parameters that determine functional compatibility:

Primary Compatibility Criteria:

• Number of positions: 6
• Circuit configuration: DP6T
• Contact timing: Non-Shorting (BBM)
• Mounting type: Panel Mount
• Index stops: Fixed

Secondary Compatibility Criteria:

• Current rating: Equal to or greater than 150mA
• Voltage rating (AC/DC): Equal to or greater than 60V
• Actuator type and length: Mechanical fit considerations
• Termination style: Solder Lug or equivalent connection method

Two substitute parts meet these criteria with varying degrees of parameter alignment and product status differences.

Parameter Comparison

Engineering Selection Recommendations

RTAP32S06M25NS is the primary substitute for RTAC32S06M25NS. Both components share identical electrical specifications (150mA at 60V AC/DC), circuit configuration (DP6T), and mechanical actuator characteristics (6mm round slotted, 25mm length). The primary difference is termination style: RTAP32S06M25NS uses PC Pin termination versus solder lug on the original. RTAP32S06M25NS maintains RoHS3 compliance and active product status, ensuring long-term availability and supply chain continuity.

A20615RNZQ serves as an alternative substitute when higher current or voltage capacity is required. This part provides 2.5A (AC) and 350mA (DC) ratings at 125V, exceeding the original specifications. However, the actuator differs (flatted 6.35mm versus round 6mm) and is longer (38.10mm versus 25mm), requiring mechanical fit verification. A20615RNZQ uses silver contact material versus brass, and maintains active product status with ROHS3 compliance.

Selection between substitutes depends on termination compatibility and mechanical envelope constraints within the target application.

Frequently Asked Questions (FAQ)

Q: Can RTAP32S06M25NS directly replace RTAC32S06M25NS?

A: RTAP32S06M25NS is electrically and functionally equivalent, sharing identical current ratings (150mA AC/DC), voltage ratings (60V), circuit configuration (DP6T), and actuator specifications. The primary difference is termination: RTAP32S06M25NS uses PC Pin termination while RTAC32S06M25NS uses solder lug. Direct replacement requires compatible PCB or wiring harness design.

Q: What are the key differences between RTAP32S06M25NS and A20615RNZQ?

A: RTAP32S06M25NS maintains identical electrical and mechanical specifications to the original RTAC32S06M25NS. A20615RNZQ provides higher current capacity (2.5A AC, 350mA DC versus 150mA) and higher voltage rating (125V versus 60V), but features a different actuator type (flatted 6.35mm, 38.10mm length versus round 6mm, 25mm length) and silver contact material instead of brass. A20615RNZQ requires mechanical fit verification.

Q: Are both substitute parts RoHS compliant?

A: Yes. RTAP32S06M25NS and A20615RNZQ both carry ROHS3 compliance certification, meeting current environmental standards. The original RTAC32S06M25NS is RoHS Compliant (earlier standard).

Q: What is the significance of contact material differences?

A: RTAC32S06M25NS and RTAP32S06M25NS use brass contacts with silver finish. A20615RNZQ uses silver (Ag) contact material. Contact material affects electrical conductivity, wear characteristics, and corrosion resistance. Selection depends on application-specific requirements for contact reliability and environmental exposure.

Q: Can A20615RNZQ be used in applications designed for 60V operation?

A: A20615RNZQ is rated for 125V AC/DC, exceeding 60V requirements. Voltage derating is not a concern. However, the higher current capacity (2.5A AC) and different actuator geometry require verification of mechanical fit and electrical circuit compatibility before implementation.

Q: What is the difference between solder lug and PC Pin termination?

A: Solder lug termination (RTAC32S06M25NS) connects directly to PCB traces or wiring via soldering. PC Pin termination (RTAP32S06M25NS) uses through-hole pins for PCB insertion. Selection depends on PCB design and assembly process compatibility.
