RT214110 General Purpose Relay SPDT 12A 110VDC Equivalent & Substitute Parts

Part Overview

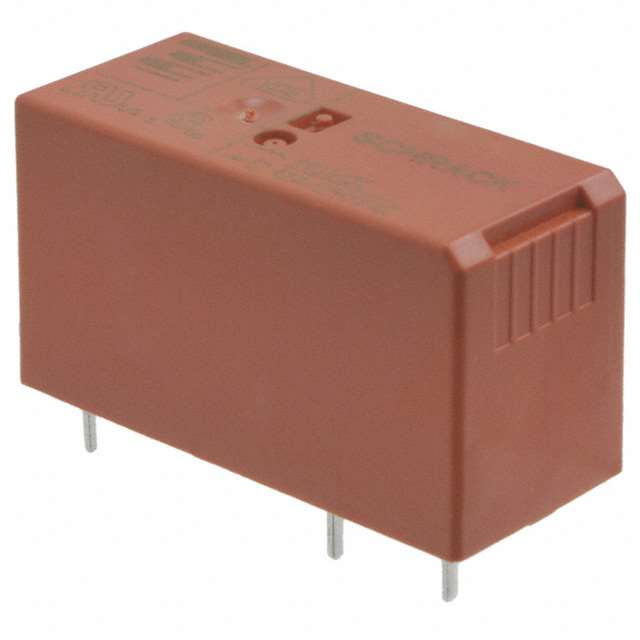

The RT214110 is a general purpose relay manufactured by TE Connectivity Potter & Brumfield Relays, classified as a Single Pole Double Throw (SPDT) configuration with a 110VDC coil. This through-hole mounted relay is designed for applications requiring 12A contact switching at maximum 400VAC. The part is currently active in production with 1118 pieces available in new original stock. Equivalent and substitute parts are identified when identical electrical and mechanical parameters are maintained across the RT1 and SCHRACK series, ensuring direct functional interchangeability in circuit designs.

Substiute Parts

RT214110

TE Connectivity Potter & Brumfield RelaysIn Stock: 1222RT214110 Datasheet

Current PartRFQ

RT114110

TE Connectivity Potter & Brumfield RelaysIn Stock: 2370RT114110 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the RT214110 are identified based on strict parametric equivalence within the TE Connectivity Potter & Brumfield Relays product portfolio. The substitution logic is based on the following critical parameters that must remain identical:

• Coil voltage specification (110VDC)
• Contact form configuration (SPDT / 1 Form C)
• Contact current rating (12 A)
• Maximum switching voltage (400VAC)
• Coil current draw (3.8 mA)
• Coil resistance (28.8 kOhms)
• Mounting technology (Through Hole)
• Termination style (PC Pin)
• Operating temperature range (-40°C ~ 85°C)
• Must operate and release voltage thresholds
• Switching time specifications (operate and release times)
• Contact material composition (Silver Nickel)
• Coil type (Non Latching)
• Environmental sealing (Sealed - Flux Protection)
• Coil insulation class (Class F)

Parts meeting all these criteria are classified as parametric equivalents and direct substitutes. The RT114110 satisfies all substitution requirements and belongs to the same RT1 and SCHRACK series family.

Parameter Comparison

Engineering Selection Recommendations

Both the RT214110 and RT114110 are active production parts manufactured by TE Connectivity Potter & Brumfield Relays and maintain full compliance with ROHS3 and REACH regulatory requirements. Both parts carry identical ECCN (EAR99) and HTSUS classifications, confirming their equivalence for export and procurement purposes.

The RT114110 substitute part demonstrates complete parametric alignment with the RT214110 across all electrical, mechanical, and environmental specifications. Both relays are sealed with flux protection, feature Class F coil insulation, and operate within the identical temperature range of -40°C to 85°C. The switching characteristics, including operate time (8 ms) and release time (6 ms), are identical, ensuring equivalent performance in timing-critical applications.

Selection between these parts may be based on inventory availability and lead time considerations. The RT114110 currently maintains higher stock levels (2299 pieces) compared to the RT214110 (1118 pieces), which may influence procurement decisions for high-volume applications or urgent requirements.

Frequently Asked Questions (FAQ)

Q: Can the RT114110 be used as a direct replacement for the RT214110 in existing circuit designs?

A: Yes. The RT114110 is a parametric equivalent with identical electrical and mechanical specifications. All coil voltage, contact ratings, switching characteristics, and environmental parameters match exactly, enabling direct substitution without circuit modification.

Q: Are there any differences in the physical package or pin configuration between these parts?

A: No. Both parts use identical through-hole mounting with PC pin termination and are supplied in tube packaging. The physical footprint and pin layout are identical.

Q: Do both parts meet the same regulatory and compliance standards?

A: Yes. Both the RT214110 and RT114110 are ROHS3 compliant, REACH affected, and carry the same ECCN (EAR99) and HTSUS (8536.49.0075) classifications.

Q: What is the operating voltage range for these relays?

A: The coil voltage is 110VDC. The must operate voltage is 77 VDC minimum, and the must release voltage is 11 VDC maximum. The maximum switching voltage for the contacts is 400VAC.

Q: What contact current capacity do these relays support?

A: Both relays are rated for 12 A contact current with a maximum switching voltage of 400VAC.

Q: Are these relays suitable for applications requiring extended temperature operation?

A: Yes. Both relays operate across the temperature range of -40°C to 85°C with Class F coil insulation, supporting extended environmental conditions.

Q: What is the switching speed of these relays?

A: The operate time is 8 milliseconds and the release time is 6 milliseconds for both parts.

Q: Are these relays latching or non-latching?

A: Both relays are non-latching, meaning they require continuous coil energization to maintain the switched state.

Q: What contact material is used in these relays?

A: Both relays use Silver Nickel (AgNi) contact material, providing reliable switching performance and contact durability.

Q: Is there a difference in coil current consumption between these parts?

A: No. Both relays draw 3.8 mA coil current with a coil resistance of 28.8 kOhms.
