RR01J200RTB Equivalent & Substitute Parts

Part Overview

The RR01J200RTB is a 200 Ohms ±5% 1W through-hole axial resistor manufactured by TE Connectivity Passive Product. This metal film resistor features flame retardant coating, pulse withstanding capability, and safety certification. The component is classified as Active product status with 5,896 pieces in current inventory stock.

Substitute parts are identified when equivalent electrical specifications and mechanical compatibility are maintained across the core parameters: resistance value, tolerance, power rating, package type, and termination configuration. Alternative sources provide equivalent performance for applications requiring component interchangeability or supply chain flexibility.

Key Parameters

Parameter	Value	Specification Type
Resistance	200 Ohms	Electrical
Tolerance	±5%	Electrical
Power Rating	1W	Electrical
Composition	Metal Film	Material
Package Type	Axial	Mechanical
Number of Terminations	2	Mechanical
Operating Temperature Range	-55°C ~ 235°C	Environmental
RoHS Status	ROHS3 Compliant	Compliance

Substitute Part Grouping Explanation

Substitution eligibility is determined by matching the following core parameters across all candidate parts:

Electrical Parameters (Required Match):

Resistance value: 200 Ohms
Tolerance: ±5%
Power rating: 1W
Composition: Metal Film

Mechanical Parameters (Required Match):

Package type: Axial
Termination count: 2

Compliance Parameters (Required Match):

RoHS3 Compliant status
REACH Unaffected status

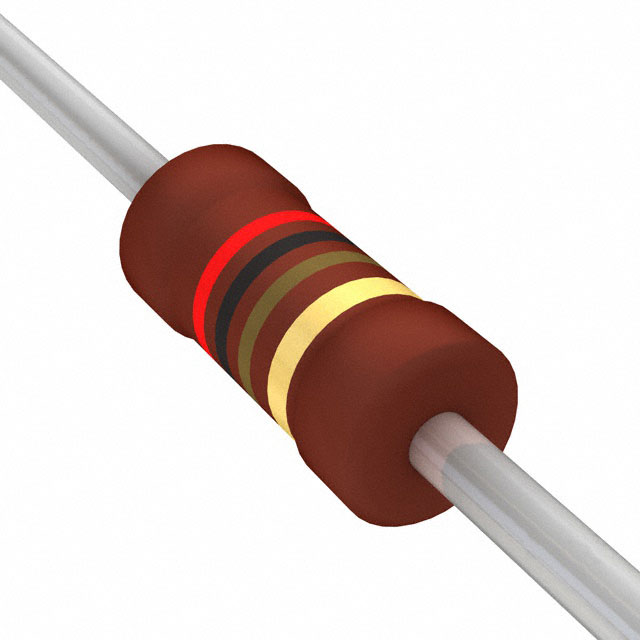

The substitute part PR01000102000JR500 satisfies all core substitution criteria. Both components are metal film axial resistors with identical resistance, tolerance, and power specifications. Both maintain RoHS3 and REACH compliance. Physical dimensions vary slightly within acceptable tolerances for axial through-hole mounting applications.

Parameter Comparison

Parameter	RR01J200RTB (Main)	PR01000102000JR500 (Substitute)	Match Status
Manufacturer	TE Connectivity Passive Product	Vishay Beyschlag/Draloric/BC Components	Different Source
Resistance	200 Ohms	200 Ohms	Equivalent
Tolerance	±5%	±5%	Equivalent
Power Rating	1W	1W	Equivalent
Composition	Metal Film	Metal Film	Equivalent
Package Type	Axial	Axial	Equivalent
Terminations	2	2	Equivalent
Temperature Coefficient	±300ppm/°C	±250ppm/°C	Substitute Superior
Operating Temperature	-55°C ~ 235°C	-55°C ~ 155°C	Main Part Superior
Size / Dimension	0.102" Dia x 0.268" L (2.60mm x 6.80mm)	0.098" Dia x 0.256" L (2.50mm x 6.50mm)	Minor Variation
Features	Flame Retardant Coating, Pulse Withstanding, Safety	Automotive AEC-Q200, Flame Retardant Coating, Fusible, Safety	Different Feature Sets
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Equivalent
REACH Status	REACH Unaffected	REACH Unaffected	Equivalent
Packaging	Cut Tape (CT)	Cut Tape (CT)	Equivalent
Product Status	Active	Active	Equivalent

Engineering Selection Recommendations

RR01J200RTB Selection Criteria:

Applications requiring maximum operating temperature to 235°C
Designs requiring pulse withstanding specification
Environments where TE Connectivity supply chain is preferred
Current inventory availability: 5,896 pieces

PR01000102000JR500 Selection Criteria:

Automotive applications requiring AEC-Q200 qualification
Designs benefiting from improved temperature coefficient (±250ppm/°C vs ±300ppm/°C)
Applications where fusible feature is required
Larger inventory availability: 20,465 pieces
Operating temperature limited to 155°C maximum

Both components maintain Active product status and full RoHS3/REACH compliance. Selection between these parts depends on specific application requirements regarding maximum operating temperature, automotive qualification needs, and feature requirements (pulse withstanding vs. fusible capability).

Frequently Asked Questions (FAQ)

Q: Can PR01000102000JR500 replace RR01J200RTB in all applications?

A: Substitution is valid for applications operating at or below 155°C. Applications requiring operation above 155°C must use RR01J200RTB, which is rated to 235°C. Both parts meet the core electrical specifications of 200 Ohms ±5% 1W.

Q: What is the significance of the different feature sets?

A: RR01J200RTB includes pulse withstanding capability. PR01000102000JR500 includes automotive AEC-Q200 qualification and fusible characteristics. Feature selection depends on application requirements. These are not interchangeable features.

Q: Are the physical dimension differences significant?

A: Both components are axial through-hole resistors with minor dimensional variations (0.102" vs 0.098" diameter; 0.268" vs 0.256" length). These variations are within standard tolerances for axial component mounting on PCBs. Mechanical compatibility is maintained for standard through-hole applications.

Q: Which part should be selected for new designs?

A: Selection depends on application requirements. For automotive applications, PR01000102000JR500 with AEC-Q200 qualification is appropriate. For high-temperature applications above 155°C, RR01J200RTB is required. Both are Active status products with current manufacturing support.

Q: Are both parts available in the same packaging format?

A: Both components are supplied in Cut Tape (CT) packaging. Packaging format is equivalent between the two parts.

Q: What compliance certifications apply to both parts?

A: Both RR01J200RTB and PR01000102000JR500 are ROHS3 Compliant and REACH Unaffected. Both carry EAR99 ECCN classification and 8533.21.0090 HTSUS code.
