RN70C1002FRE6 Equivalent & Substitute Parts

Part Overview

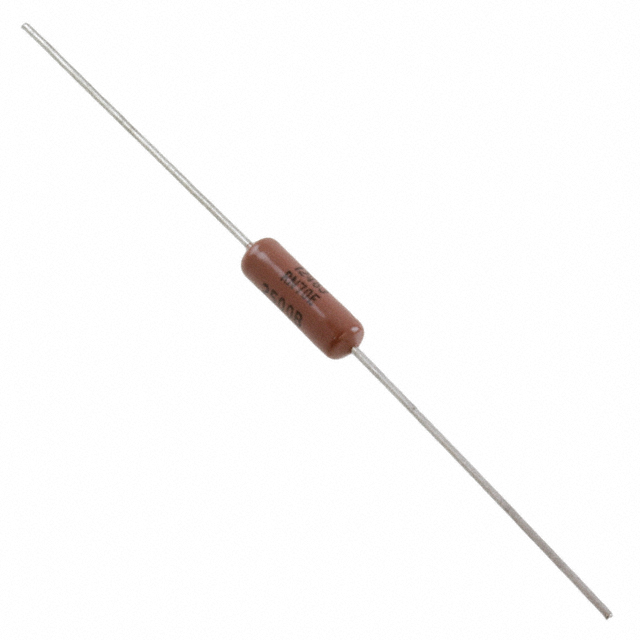

The RN70C1002FRE6 is a 10 kOhms ±1% metal film through-hole resistor rated at 0.75W (3/4W) in axial package configuration. Manufactured by Vishay Dale under the military-grade RN70 series compliant with MIL-R-10509/3, this component features flame retardant coating, moisture resistance, and safety-rated construction suitable for military and high-reliability applications. The part is currently active in production with 1134 units in stock. Substitute parts are identified when packaging format differs while maintaining identical electrical and mechanical specifications.

Substiute Parts

RN70C1002FRE6

Vishay DaleIn Stock: 1165RN70C1002FRE6 Datasheet

Current PartRFQ

RN70C1002FB14

Vishay DaleIn Stock: 914RN70C1002FB14 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the RN70C1002FRE6 is determined by strict equivalence across the following critical parameters:

• Resistance value: 10 kOhms
• Tolerance: ±1%
• Power rating: 0.75W (3/4W)
• Composition: Metal Film
• Package configuration: Axial
• Temperature coefficient: ±50ppm/°C
• Operating temperature range: -65°C to 175°C
• Physical dimensions: 0.180" Dia x 0.562" L
• Series compliance: MIL-R-10509/3, RN70
• Features: Flame Retardant Coating, Military, Moisture Resistant, Safety

The identified substitute part RN70C1002FB14 maintains identical electrical and mechanical specifications. The only difference is packaging format: the main part is supplied in Tape & Reel (TR) configuration, while the substitute is supplied in Bulk packaging. Both parts are manufactured by Vishay Dale under the same military series designation.

Parameter Comparison

Engineering Selection Recommendations

Both RN70C1002FRE6 and RN70C1002FB14 are active production components manufactured by Vishay Dale. Selection between these parts should be based on supply chain and assembly requirements:

The RN70C1002FRE6 in Tape & Reel packaging is suitable for automated assembly processes and high-volume production environments where component feeding systems require standardized reel formats.

The RN70C1002FB14 in Bulk packaging is appropriate for manual assembly, low-volume production, or applications where reel-based handling is not required.

Both parts carry identical electrical performance, military-grade specifications, and compliance status. Neither part is RoHS compliant; both are REACH Affected and classified under ECCN EAR99.

Frequently Asked Questions (FAQ)

Q: Can RN70C1002FB14 be used as a direct replacement for RN70C1002FRE6?

A: Yes. Both parts are electrically and mechanically identical. The only difference is packaging format (Bulk versus Tape & Reel). Substitution is valid provided assembly equipment can accommodate the packaging type.

Q: What determines if a part can substitute for the RN70C1002FRE6?

A: Substitution requires exact equivalence in resistance value (10 kOhms), tolerance (±1%), power rating (0.75W), composition (Metal Film), axial package configuration, temperature coefficient (±50ppm/°C), operating temperature range (-65°C to 175°C), physical dimensions (0.180" Dia x 0.562" L), and MIL-R-10509/3 series compliance.

Q: Are there differences in reliability or performance between the two parts?

A: No. Both parts are manufactured by Vishay Dale under the same military series specification. Electrical performance, temperature stability, and reliability characteristics are identical.

Q: What is the impact of packaging format on component selection?

A: Packaging format affects assembly process compatibility and handling logistics. Tape & Reel format is optimized for automated pick-and-place equipment. Bulk packaging requires manual handling or alternative feeding systems. Electrical and mechanical performance is unaffected by packaging format.

Q: Are both parts currently available?

A: Yes. RN70C1002FRE6 has 1134 units in stock. RN70C1002FB14 has 870 units in stock. Both are listed as active production components.
