RN134-I/RM WiFi 802.11b/g Transceiver Module Equivalent & Substitute Parts

Part Overview

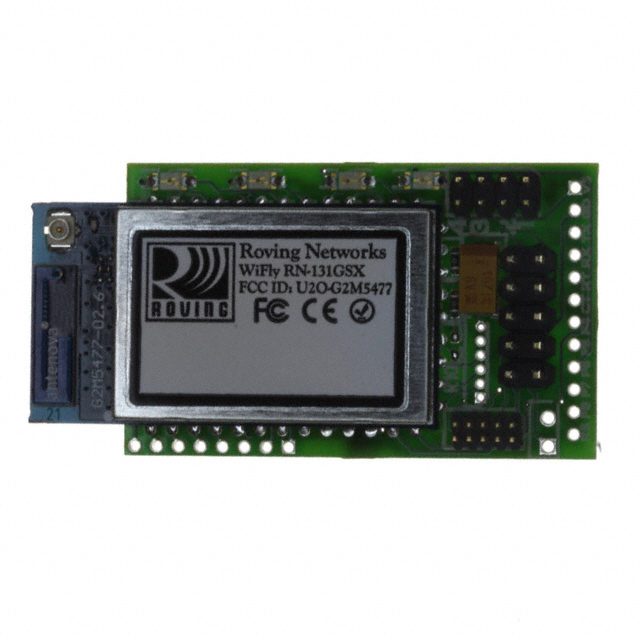

The RN134-I/RM is a WiFi 802.11b/g transceiver module manufactured by Microchip Technology, designed for 2.4GHz wireless communication applications. This module integrates a chip antenna with U.FL connector for flexible antenna configuration and operates across a wide supply voltage range of 3V to 12V. The product is currently classified as obsolete, making identification of suitable substitute components essential for ongoing system support and new design implementations.

Substiute Parts

RN134-I/RM

Microchip TechnologyIn Stock: 766RN134-I/RM Datasheet

Current PartRFQ

RN171XVW-I/RM

Microchip TechnologyIn Stock: 2140RN171XVW-I/RM Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the RN134-I/RM is determined by the following critical parameters:

Primary Compatibility Criteria:

• RF Standard: WiFi 802.11b/g protocol support
• Frequency Band: 2.4GHz operation
• Data Rate: 54Mbps capability
• Mounting Type: Surface Mount configuration
• Serial Interface: UART support (minimum requirement)
• Compliance: ROHS3 and REACH status alignment

Secondary Considerations:

• Voltage Supply Range: Compatibility with 3V minimum supply
• Operating Temperature: Coverage of -30°C to 85°C range
• Power Output and Sensitivity: Performance within acceptable operational margins
• Antenna Configuration: Integrated antenna solutions

The RN171XVW-I/RM qualifies as a manufacturer-recommended substitute based on matching RF standard, frequency, data rate, mounting type, and compliance certifications. Differences in antenna type (wire antenna vs. chip + U.FL), voltage supply range (3V ~ 3.7V vs. 3V ~ 12V), and transmit current (180mA vs. 140mA) represent design trade-offs that must be evaluated against specific application requirements.

Parameter Comparison

Engineering Selection Recommendations

For RN134-I/RM Replacement:

The RN171XVW-I/RM is the manufacturer-recommended substitute and is classified as active product status, ensuring long-term availability and support. Both modules maintain ROHS3 compliance and REACH unaffected status, satisfying regulatory requirements for current manufacturing standards.

Critical Design Considerations:

1. Voltage Supply Compatibility: The RN171XVW-I/RM operates within 3V to 3.7V, compared to the RN134-I/RM's 3V to 12V range. Systems requiring supply voltages above 3.7V require voltage regulation or alternative component selection.

2. Serial Interface Reduction: The substitute part supports UART only, whereas the original includes both SPI and UART. Applications dependent on SPI communication require architectural modification or alternative solutions.

3. Antenna Configuration: The RN171XVW-I/RM features an integrated wire antenna, eliminating the U.FL connector present on the RN134-I/RM. PCB layout and antenna placement strategies must be reassessed for the wire antenna configuration.

4. Power Output Differential: The substitute delivers 12dBm versus 18dBm on the original part, representing a 6dB reduction in transmit power. Link budget analysis is required for range-critical applications.

5. Transmit Current Increase: Current consumption during transmission increases from 140mA to 180mA, requiring power supply capacity verification.

Frequently Asked Questions (FAQ)

Q: Can the RN171XVW-I/RM directly replace the RN134-I/RM in existing designs?

A: Direct replacement is not guaranteed without design review. While both modules support 802.11b/g at 2.4GHz with 54Mbps data rate, differences in voltage supply range, serial interfaces, antenna type, and power output require evaluation against specific application requirements.

Q: What is the primary reason for substitution?

A: The RN134-I/RM is classified as obsolete product status. The RN171XVW-I/RM is an active product from the same manufacturer, ensuring continued availability, support, and compliance with current regulatory standards.

Q: Does the RN171XVW-I/RM support SPI communication?

A: No. The RN171XVW-I/RM provides UART interface only. The original RN134-I/RM supports both SPI and UART. Applications requiring SPI must implement alternative solutions or select different components.

Q: How does the antenna difference affect performance?

A: The RN134-I/RM uses an integrated chip antenna with external U.FL connector for flexible antenna selection. The RN171XVW-I/RM integrates a wire antenna directly on the module. PCB layout, antenna placement, and impedance matching strategies differ between configurations.

Q: What is the impact of reduced power output on communication range?

A: The RN171XVW-I/RM outputs 12dBm compared to 18dBm on the RN134-I/RM. This 6dB reduction corresponds to approximately 50% reduction in radiated power. Link budget calculations are necessary to determine if range requirements are maintained.

Q: Are both modules RoHS compliant?

A: Yes. Both the RN134-I/RM and RN171XVW-I/RM are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements.

Q: What is the voltage supply limitation for the substitute part?

A: The RN171XVW-I/RM operates within 3V to 3.7V supply range. Systems designed for higher supply voltages require integrated voltage regulation or alternative component selection.

Q: Is the operating temperature range adequate for my application?

A: The RN171XVW-I/RM extends the lower operating temperature to -40°C compared to -30°C on the original part, providing improved cold-weather performance. Both support 85°C maximum operating temperature.
