RM15TPD-10PC Equivalent & Substitute Parts

Part Overview

The RM15TPD-10PC is a 10-position circular connector plug housing manufactured by Hirose Electric Co Ltd, designed for free hanging (in-line) applications with threaded fastening. This connector features a zinc alloy shell with chrome finish, polycarbonate insert, and includes backshell, cable clamp, coupling nut, and strain relief components. The main part is classified as obsolete, making substitute identification critical for ongoing system support and component procurement.

Substiute Parts

RM15TPD-10PC

Hirose Electric Co LtdIn Stock: 1225RM15TPD-10PC Datasheet

Current PartRFQ

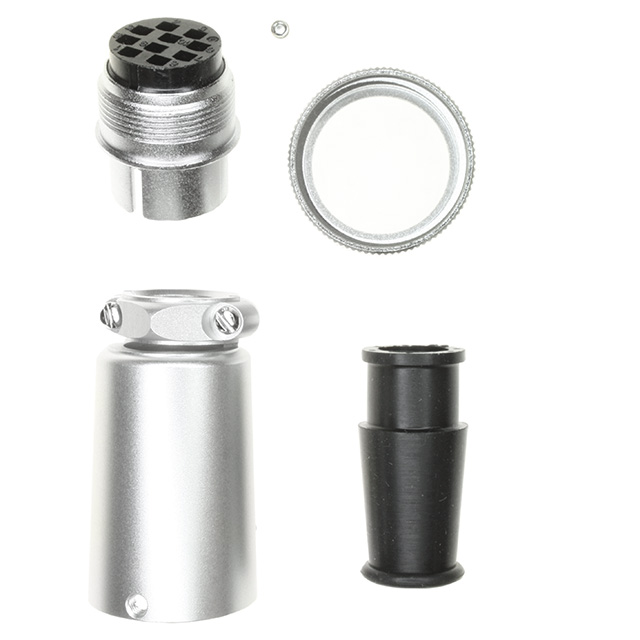

RM15TPD-10PC(71)

Hirose Electric Co., Ltd.In Stock: 1234RM15TPD-10PC(71) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the RM15TPD-10PC is determined by strict equivalence across the following critical parameters:

• Series and Base Product Number: Both parts must belong to the RM series with base product number RM15TPD
• Connector Configuration: 10-position plug housing for male pins
• Shell Size: Insert size 15 (mechanical compatibility)
• Mounting and Fastening: Free hanging (in-line) with threaded fastening
• Physical Construction: Zinc alloy shell with chrome finish, polycarbonate insert, keyed orientation
• Electrical Characteristics: Unshielded, crimp contact type
• Environmental Ratings: UL94 V-0 flammability rating, operating temperature -25°C ~ 85°C
• Included Features: Backshell, cable clamp, coupling nut, strain relief

The substitute part RM15TPD-10PC(71) maintains identical electrical and mechanical specifications across all these parameters, with the primary distinction being packaging format and product status.

Parameter Comparison

Engineering Selection Recommendations

The RM15TPD-10PC(71) is a direct functional equivalent to the RM15TPD-10PC. Both parts are electrically and mechanically identical across all specified parameters. The key differentiators are:

Product Status: The original RM15TPD-10PC is classified as obsolete, while RM15TPD-10PC(71) maintains active status. For new designs and long-term system support, RM15TPD-10PC(71) is the appropriate selection.

Regulatory Compliance: RM15TPD-10PC(71) is RoHS compliant, whereas the original part is RoHS non-compliant. This distinction is significant for applications subject to RoHS regulations or customer requirements mandating RoHS compliance.

Packaging: RM15TPD-10PC(71) is supplied in bulk packaging, compared to the unspecified packaging of the original part. Verify packaging requirements for your procurement and assembly processes.

Availability: Both parts maintain adequate inventory levels (1137 and 1142 units respectively), ensuring procurement feasibility.

Frequently Asked Questions (FAQ)

Q: Can RM15TPD-10PC(71) be used as a direct replacement for RM15TPD-10PC?

A: Yes. Both parts are electrically and mechanically identical. They share identical connector configuration, shell size, mounting type, fastening method, materials, and operating temperature range. The substitute part is functionally interchangeable.

Q: What is the significance of the "(71)" designation in RM15TPD-10PC(71)?

A: The "(71)" suffix indicates a specific packaging or variant designation assigned by the manufacturer. In this case, it denotes bulk packaging format. The electrical and mechanical specifications remain unchanged.

Q: Does the RoHS compliance difference affect compatibility?

A: RoHS compliance status does not affect electrical or mechanical compatibility. However, if your application or customer requirements mandate RoHS compliance, RM15TPD-10PC(71) is the required selection.

Q: Are the contacts included with these connector housings?

A: No. Both the RM15TPD-10PC and RM15TPD-10PC(71) are plug housings supplied without contacts. Contacts must be procured separately and crimped into the housing.

Q: What is the operating temperature range for these connectors?

A: Both parts operate within the range of -25°C to 85°C, suitable for industrial and commercial applications within this thermal envelope.

Q: Can these connectors be used in shielded applications?

A: No. Both parts are unshielded connectors. For applications requiring electromagnetic shielding, alternative connector designs must be evaluated.

Q: What mounting configurations are supported?

A: Both connectors are designed for free hanging (in-line) mounting with threaded fastening and keyed orientation, providing polarization and secure mechanical attachment.
