RM024-S50-C-01 Equivalent & Substitute Parts

Part Overview

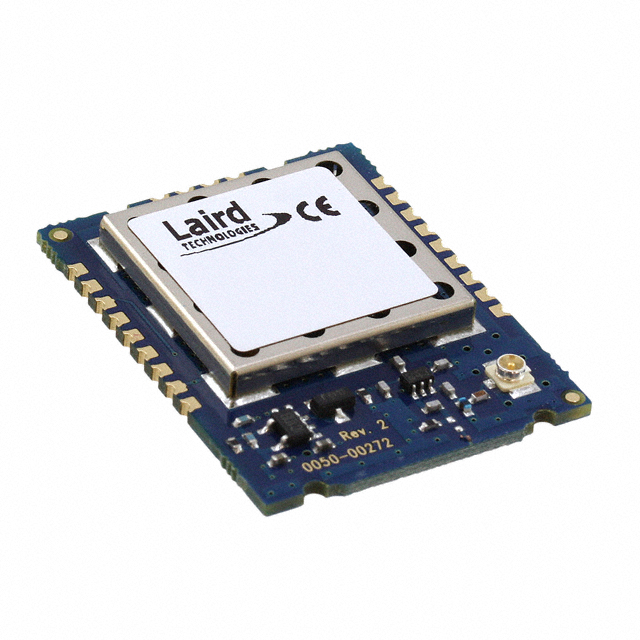

The RM024-S50-C-01 is a General ISM > 1GHz RAMP Transceiver Module manufactured by Laird Connectivity Inc., designed for 2.4GHz wireless applications with FHSS and MSK modulation support. This surface mount module features U.FL antenna connector and UART serial interface, operating across a 2.3V to 3.6V supply voltage range.

The RM024-S50-C-01 is classified as Obsolete. Equivalent and substitute parts are necessary to maintain design continuity, ensure supply chain availability, and support ongoing production requirements for applications currently utilizing this module.

Substiute Parts

RM024-S50-C-01

Laird Connectivity Inc.In Stock: 855RM024-S50-C-01 Datasheet

Current PartRFQ

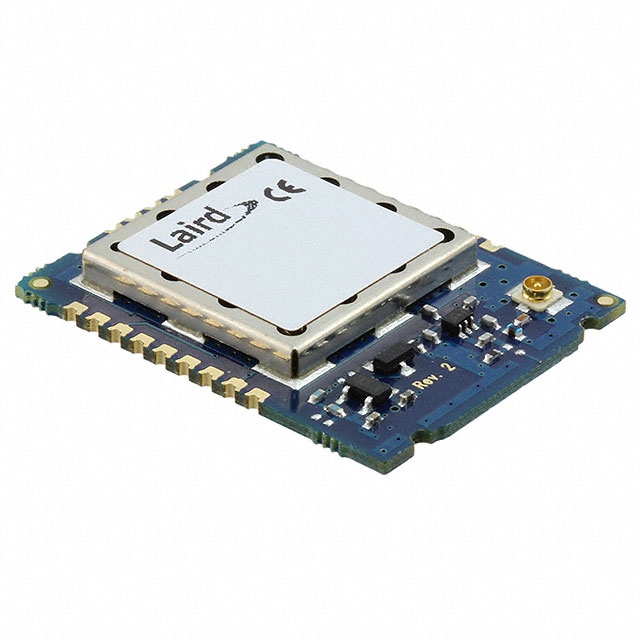

RM024-S10-C-30

Laird Connectivity Inc.In Stock: 4119RM024-S10-C-30 Datasheet

DirectRFQ

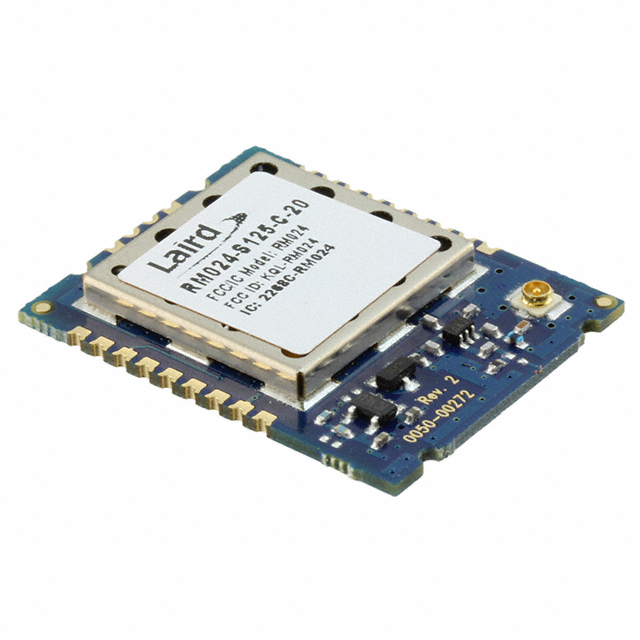

RM024-S125-C-30

Laird Connectivity Inc.In Stock: 1924RM024-S125-C-30 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the RM024-S50-C-01 are identified based on strict electrical and mechanical parameter compatibility within the Laird Connectivity Inc. RM024 transceiver module family. The substitution criteria are:

Primary Compatibility Parameters:

• Manufacturer: Laird Connectivity Inc.
• RF Family/Standard: General ISM > 1GHz
• Protocol: RAMP
• Frequency: 2.4GHz
• Data Rate: 500kbps
• Serial Interface: UART
• Antenna Type: U.FL connector
• Mounting Type: Surface Mount
• Operating Temperature Range: -40°C ~ 85°C
• Voltage Supply Range: 2.3V ~ 3.6V
• Package Type: Module
• MSL Rating: 3 (168 Hours)

Allowable Parameter Variations:

• Modulation support (FHSS only vs. FHSS + MSK)
• Power Output (18dBm to 21dBm)
• Current consumption ranges (receiving and transmitting)
• Product Status (Active substitutes for Obsolete)
• Packaging format (Tray)
• Compliance certifications (RoHS, REACH, ECCN)

The identified substitute parts maintain full electrical and mechanical compatibility with the RM024-S50-C-01 while offering improved product status and supply availability.

Parameter Comparison

Engineering Selection Recommendations

RM024-S10-C-30 is suitable for applications requiring FHSS modulation only, with fixed current consumption specifications. This part maintains 18dBm output power matching the original RM024-S50-C-01 and holds Active product status with full RoHS and REACH compliance. ECCN classification is EAR99.

RM024-S125-C-30 is suitable for applications requiring both FHSS and MSK modulation support, matching the original RM024-S50-C-01 modulation capability. This part provides increased power output at 21dBm and optimized transmitting current range (40mA ~ 136mA). It holds Active product status with full RoHS and REACH compliance. ECCN classification is EAR99.

Both substitute parts are manufactured by Laird Connectivity Inc. and maintain full electrical and mechanical compatibility with the obsolete RM024-S50-C-01 across all critical operating parameters including frequency, data rate, sensitivity, supply voltage, serial interface, antenna connector type, and temperature range.

Frequently Asked Questions (FAQ)

Q: Can RM024-S10-C-30 and RM024-S125-C-30 be used interchangeably with RM024-S50-C-01?

A: Both parts are electrically and mechanically compatible with RM024-S50-C-01 across all critical parameters. Selection between them depends on modulation requirements. RM024-S10-C-30 supports FHSS modulation only. RM024-S125-C-30 supports both FHSS and MSK modulation, matching the original part's full modulation capability.

Q: What are the key differences between the substitute parts?

A: RM024-S10-C-30 operates at 18dBm output power with fixed 36mA receiving current and 166mA transmitting current. RM024-S125-C-30 operates at 21dBm output power with 36mA receiving current and 40mA ~ 136mA transmitting current range. Both maintain identical frequency, data rate, sensitivity, and supply voltage specifications.

Q: Are the substitute parts available in the same packaging as the original?

A: The RM024-S50-C-01 packaging format is not specified in available data. Both substitute parts are supplied in Tray packaging. Confirm packaging requirements with your procurement department.

Q: Do the substitute parts meet current compliance requirements?

A: Both RM024-S10-C-30 and RM024-S125-C-30 are RoHS Compliant and REACH Unaffected. Both carry ECCN classification EAR99. The original RM024-S50-C-01 compliance status is not specified.

Q: What is the moisture sensitivity level for these modules?

A: All three parts carry MSL Rating 3 (168 Hours), indicating identical moisture handling and storage requirements.

Q: Can I use RM024-S125-C-30 if my application only requires FHSS modulation?

A: Yes. RM024-S125-C-30 supports both FHSS and MSK modulation, so it operates correctly in applications using FHSS only. The additional modulation capability does not affect FHSS-only operation.
